BladeRF x40
New product
The blade x40 is an affordable USB 3.0 Software-Defined Radio (SDR) designed to allow students and RF enthusiasts to explore wireless communication and to provide professionals with a versatile COTS waveform development platform.
See description for more details about the product.
Add to cart now!
This product is no longer in stock
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Description

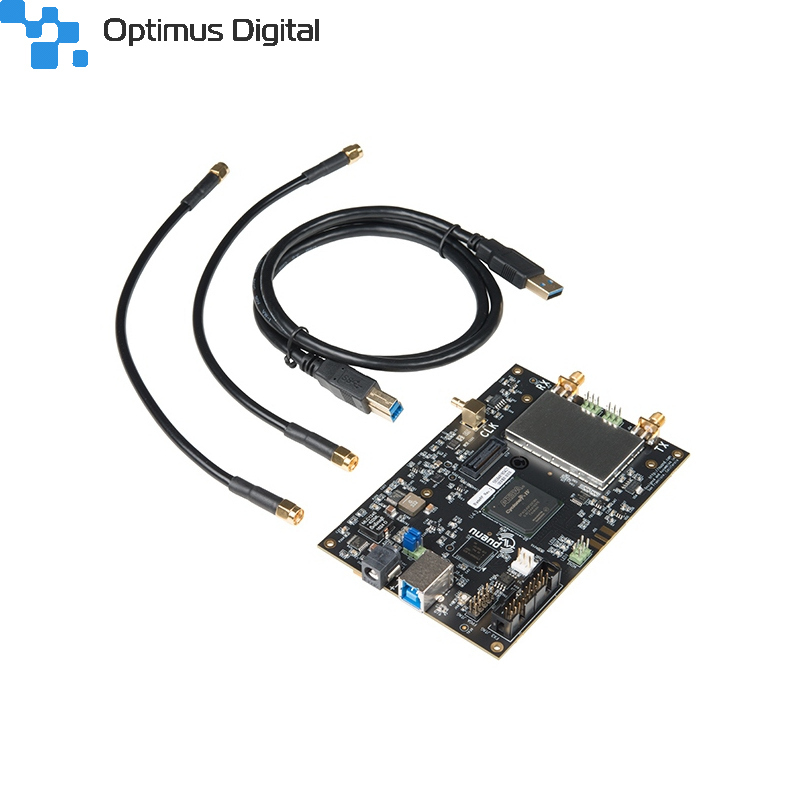

The bladeRF x40 is an affordable USB 3.0 Software-Defined Radio (SDR) designed to allow students and RF enthusiasts to explore wireless communication, and to provide professionals with a versatile COTS waveform development platform. The bladeRF x40 is a great next step after using an SDR like the HackRF One, especially with the built-in FPGA providing you with more user-defined options.
Out of the box, the bladeRF can tune from 300MHz to 3.8GHz without the need for extra boards. Through open-source software such as GNURadio (live image), the bladeRF can be placed into immediate use. With its flexible hardware and software, the bladeRF can be configured to operate as a custom RF modem, a GSM and LTE picocell, a GPS receiver, an ATSC transmitter or a combination Bluetooth/WiFi client, without the need for any expansion cards.
Includes
- 1x bladeRF x40 (40KLE Cyclone 4 FPGA)
- 1x USB 3.0 SS cable
- 2x SMA cables
Features
- Full-duplex 40MSPS 12-bit quadrature sampling
- Factory calibrated VCTCXO tuned within 1Hz of 38.4MHz
- Removable-cap RF shields for increased system sensitivity and isolation
- Flexible clocking architecture for arbitrary sample rates
- GPIO expansion port (GPIO Expansion Board)
- SPI flash allowing for headless operation
- Expanded frequency coverage using XB-200 Transverter Board
- Typical +6dBm TX power
- Fully bus-powered USB 3.0 Superspeed SDR
- 300MHz–3.8GHz RF frequency range
- Independent RX/TX 12-bit 40MSPS quadrature sampling
- Capable of achieving full-duplex 28MHz channels
- 16-bit DAC factory-calibrated 38.4MHz +/-1ppm VCTCXO
- Onboard 200MHz ARM9 with 512KB embedded SRAM (JTAG port available)
- Onboard 40KLE Altera Cyclone 4 E FPGA (JTAG port available)
- 2x2 MIMO configurable with SMB cable, expandable up to 4x4
- Stable Linux, Windows, Mac and GNURadio software support
