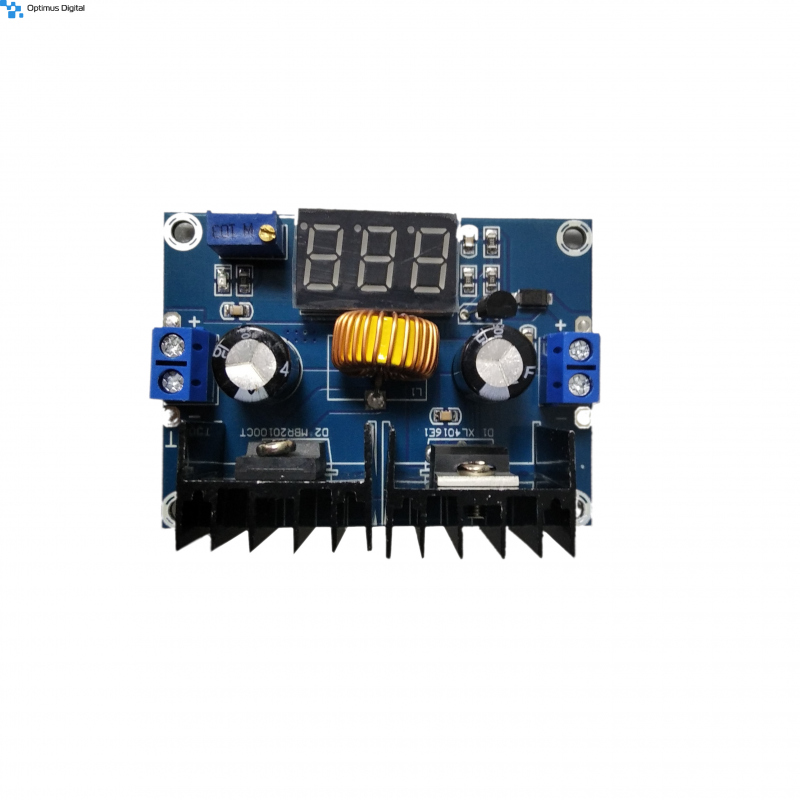

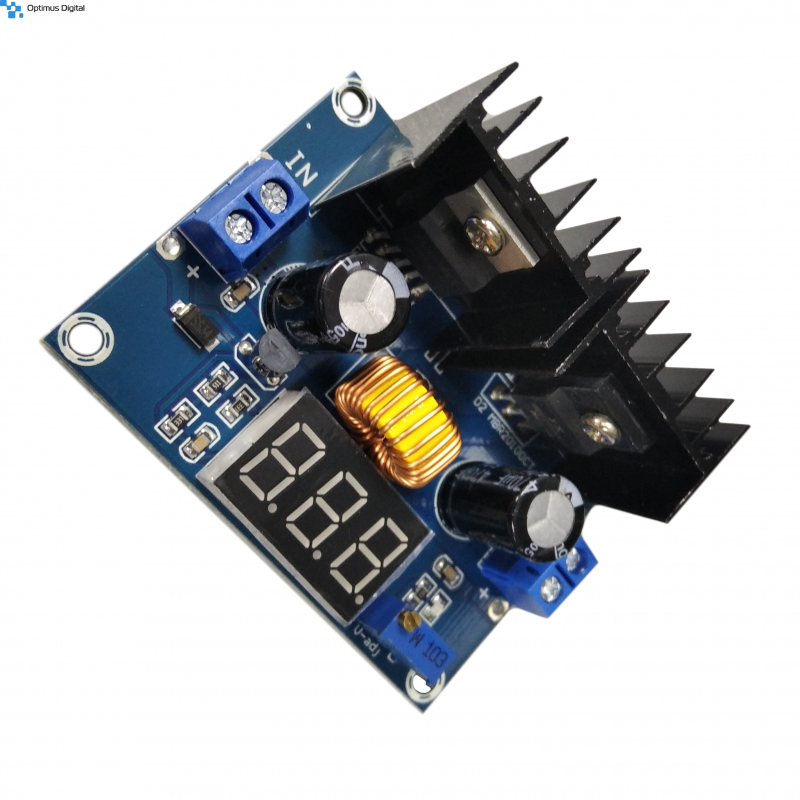

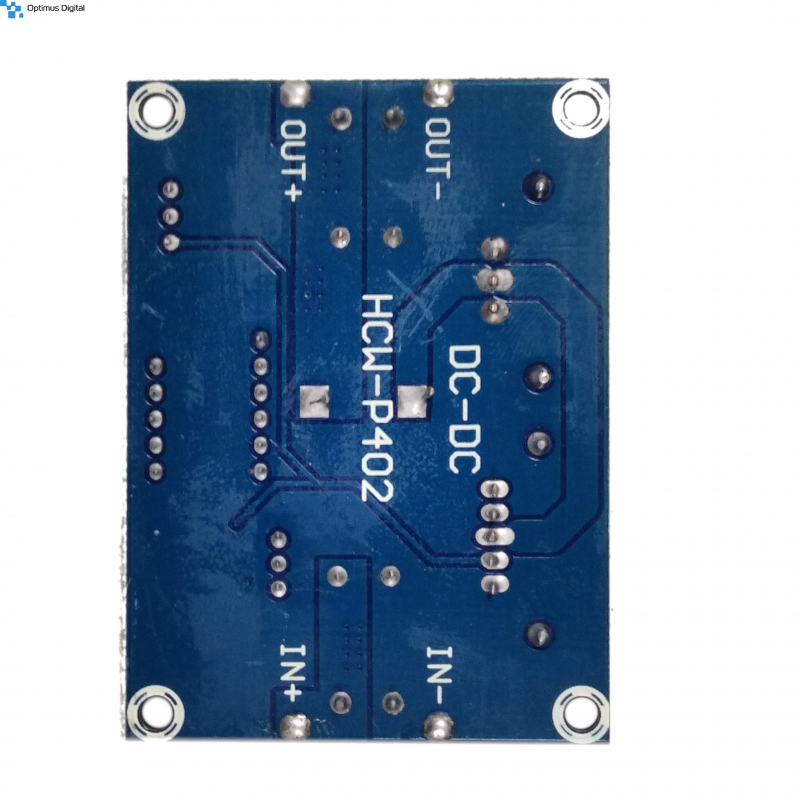

Adjustable Step-down DC-DC Module, 8 A (Input: 4 - 40 V, Output: 1.25 - 36 V)

0104110000055224

New product

Adjustable Step-down DC-DC Module, 8 A (Input: 4 - 40 V, Output: 1.25 - 36 V)


See description for more details about the product.

Add to cart now!

More details

124 Items

$9.60
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Product Information

• Voltage regulation mode: PWM Modulation

• Input voltage: DC4-40 V

• Output voltage: DC1.25-36 V

• Maximum current: 8 A (long time recommended 5A)

• Maximum power: 200 W

• Conversion efficiency: 94%

• Switching efficiency: 180 KHz

• Appearance size: 70 * 47 * 29 mm

• Other functions: Short circuit protection, input reverse connection protection, over-temperature protection (over-temperature automatic cut off output)

Note: The input and output cannot be reversed, because the module would be burned.
