P1413
New product
Hey rocket man (burnin' out your fuse out there alone) ever wonder how fast you're rocketing? The ADXL377 +-200g 3-axis accelerometer may be able to tell the answer.
See description for more details about the product.
Add to cart now!
0 Item Items
This product is no longer in stock
Warning: Last items in stock!
Availability date:
Hey rocket man (burnin' out your fuse out there alone) ever wonder how fast you're rocketing? The ADXL377 +-200g 3-axis accelerometer may be able to tell the answer. You read that right, this accelerometer can sense up to 200g's of force. Incredible! Not surprisingly, we couldn't say "no" to a breakout for this sensor.

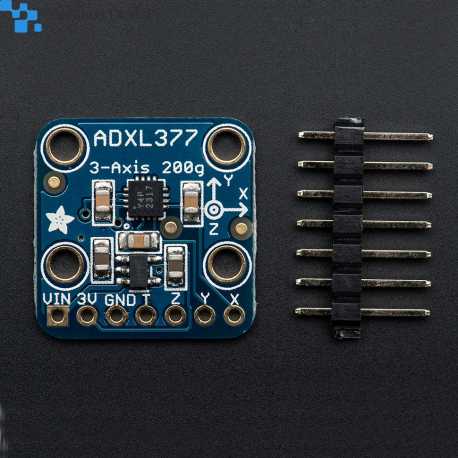

The sensor is soldered onto a PCB with four mounting holes (in case you don't remember, this is accelerating at up to 200g's!) and a 3.3V regulator so you can use it with 5v logic such as an Arduino. We also add 0.01uF filter caps for 500Hz output bandwidth.
This breakout comes with 3 analog outputs for X, Y and Z axis measurements on a 0.75"x0.75" breakout board. The analog outputs are ratiometric: that means that 0g measurement output is always at half of the 3.3V output (1.65V), -200g is at 0v and 200g is at 3.3V with full scaling in between.
Fully assembled and tested. Comes with 8 pin 0.1" standard header in case you want to use it with a breadboard or protoboard. Four 2.5mm (0.1") mounting holes for easy attachment.
The XYZ filter capacitors are 0.01uF for a 500 Hz bandwidth.
See the ADXL377 webpage for datasheets and more.
Dimensions (without header):
