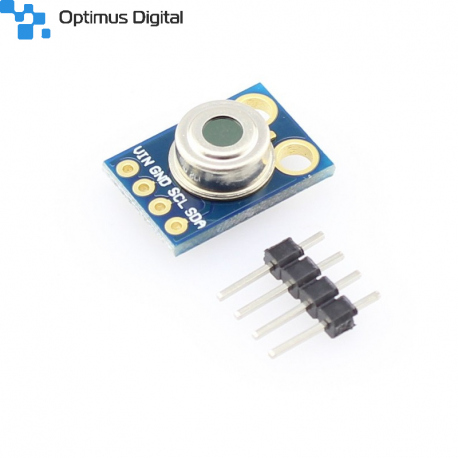

MLX90614ESF Infrared Temperature Sensor (Soldered Pin Headers)

Technical specifications

• Supply voltage: 3V - 5V (integrated LDO controller)
• Current consumption: up to 2.5mA
• Measured temperature: between -70^oC and +380^oC
• High precision calibration
• Measuring resolution: 0.02^oC
• It communicates on the I²C interface at a maximum frequency of 100 kHz.

The sensor is ideal for measuring the temperature of objects without getting in touch with them. You also have a medical precision sensor with a resolution of only 0.02^oC.

The sensor communicates through protocol I²C, so you can communicate with up to 127 sensors by different addressing.

For calculating the operating distance and for more details about the I²C address , see the attached datasheet.

Instructions for use

1. Make the hardware connections.

The sensor communicates through the I²C communication interface , having a fixed address ( 0x5A)  to which it can be accessed. PCB boards are fitted with pull-up resistors, so you do not need additional components.

The connection scheme is the following:

2. Install the library and load the code on the development board.

The library with which you can use this sensor is developed by AdaFruit. This is attached at the bottom of the page. To install it, you need to open Arduino IDE and select  SKETCH> INCLUDE LIBRARY> ADD .ZIP LIBRARY. Now a window will open where you need to select the downloaded library.

The library also includes an example. To access it you must select  FILE> EXAMPLES> ADD MXL90614 LIBRARY> mlxtest. Load the code on the development board and open the Serial Monitor  and set  BAUD RATE  to 9600.
