M.2 HAT for Raspberry Pi 5

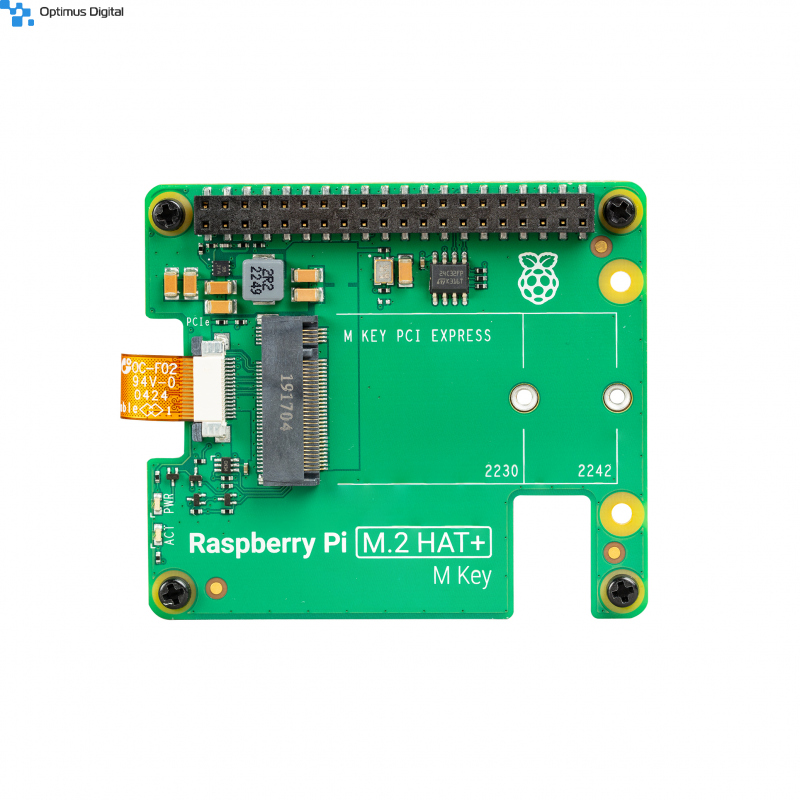

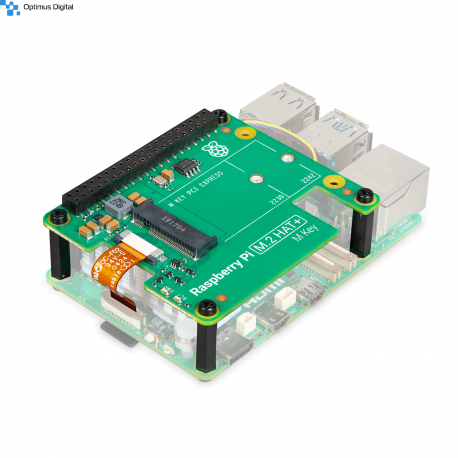

The Raspberry Pi M.2 HAT+ enables you to connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5’s PCIe 2.0 interface, supporting fast (up to 500 MB/s) data transfer to and from NVMe drives and other PCIe accessories. Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm-pitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices. The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.
Specifications
• Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
• Supports devices that use the M.2 M key edge connector
• Supports devices with the 2230 or 2242 form factor
• Capable of supplying up to 3A to connected M.2 devices
• Includes power and activity LEDs
• Conforms to the Raspberry Pi HAT+ specification
• Supplied with ribbon cable, 16mm stacking header, threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral
WARNINGS
• This product shall only be connected to a Raspberry Pi via the PCIe interface.
• Any external power supply used with the Raspberry Pi M.2 HAT+ shall comply with relevant regulations and standards
applicable in the country of intended use.
• This product should be operated in a well-ventilated environment, and if used inside a case, the case should not be
covered.
• Whilst in use, this product should be firmly secured, and should not be contacted by conductive items.
• The connection of incompatible devices to the Raspberry Pi M.2 HAT+ may affect compliance, result in damage to the
unit, and invalidate the warranty.
• The connection of incompatible devices to the PCIe interface of a Raspberry Pi computer may affect compliance and
result in damage to the unit and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked
accordingly to ensure that safety and performance requirements are met.
• The cables and connectors of all peripherals used with this product must have adequate insulation so that relevant
safety requirements are met.
• Operation of this device requires adult supervision.
