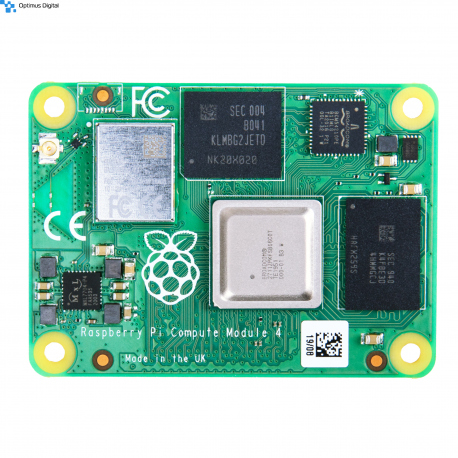

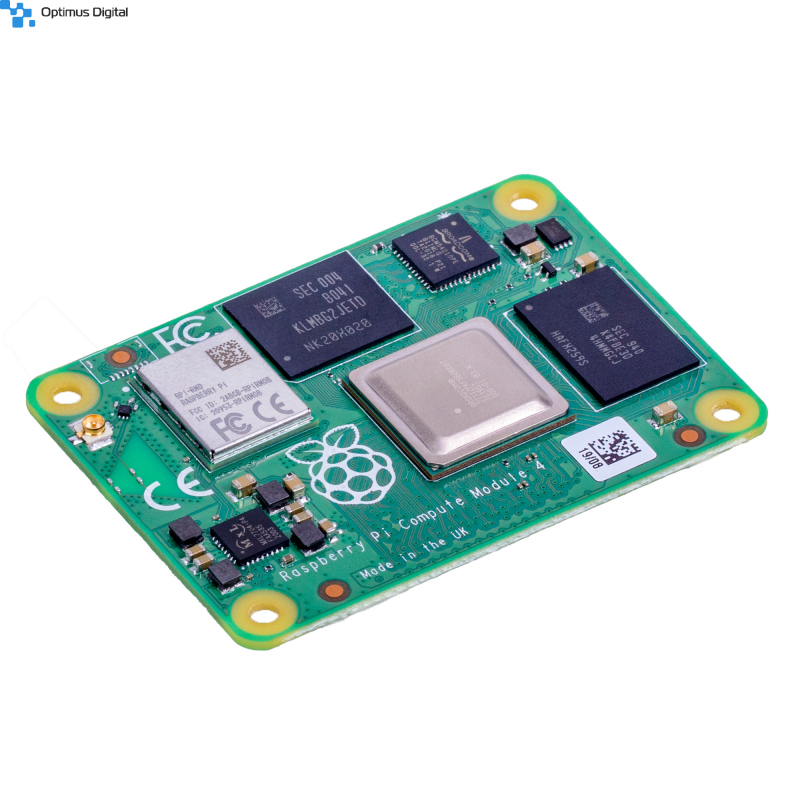

Raspberry Pi CM4 (4GB RAM, 16GB eMMC memory, WiFi PCB/ext)

Description

The power of Raspberry Pi 4 now comes in a compact form factor that will be perfect for embedded applications.

Key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K, hardware video decode at up to 4Kp60, 4GB of RAM, Gigabit Ethernet, USB 2.0, dual camera interfaces and PCIe Gen 2 x1 interface.

The dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0 have modular compliance certification. This allows the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market. Either the onboard antenna or an external antenna kit can be used.

Specifications

• Form factor: 55 mm x 40 mm
• Processor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8), 64 bit SoC @ 1.5 GHz
• Memory: 4 GB LPDDR4
• Wireless Interface: YES
• Connectivity:
• Onboard Gigabit Ethernet PHY supporting IEEE1588
• 1 x USB 2.0 interface
• PCIe Gen 2 x1 interface
• 28 GPIO signals
• SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC)
• Wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options
• Video:
• Dual HDMi interface (up to 4Kp60 supported)
• 2-lane MIPI DSI display interface
• 2-lane MIPI CSI camera interface
• 4-lane MIPI DSI display interface
• 4-lane MIPI CSI camera interface
• Multimedia:
• H.265 (4Kp60 decode)
• H.264 (1080p60 decode, 1080p30 encode)
• OpenGL ES 3.0 graphics
• Input power: 5v DC
• Operating temperature: 0 to 80^oC
• eMMC: 16 GB
