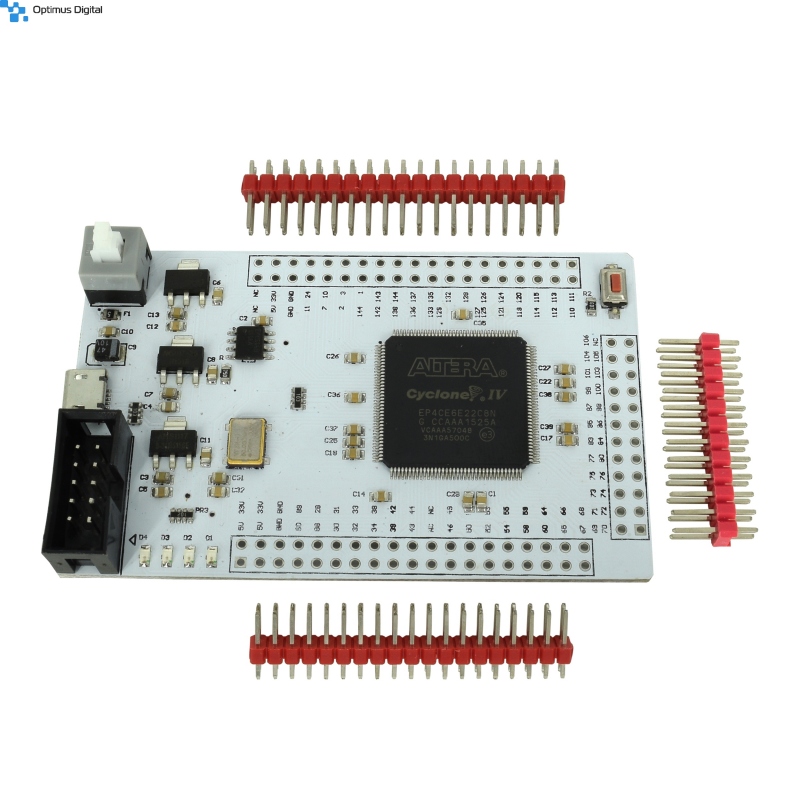

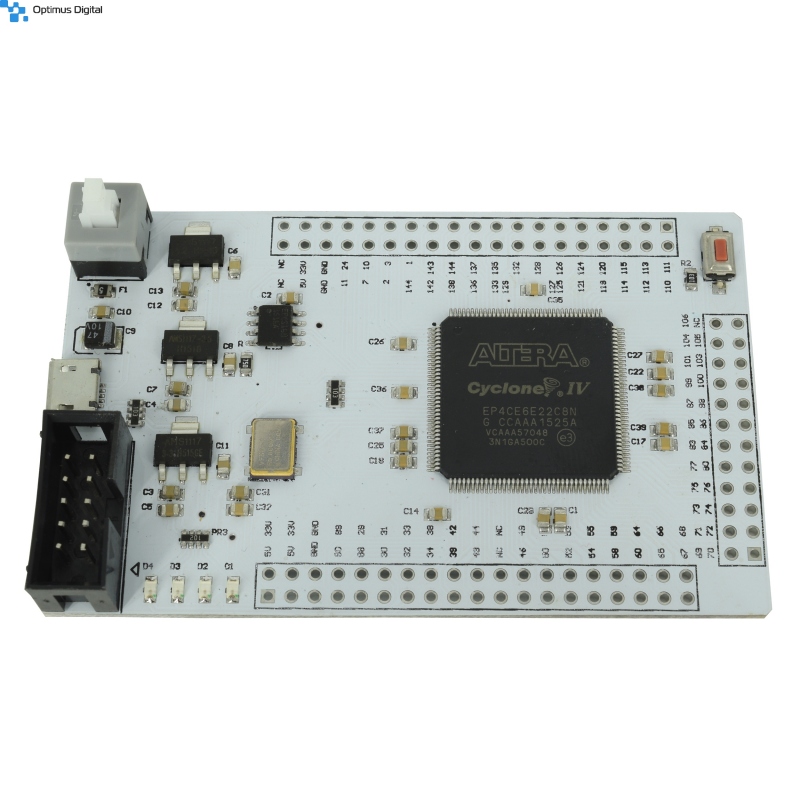

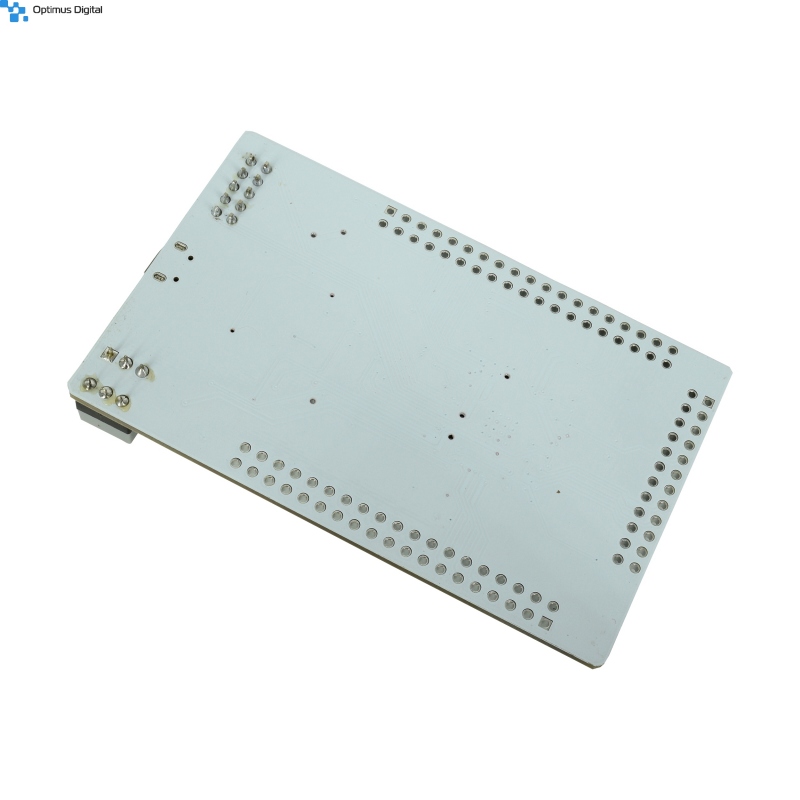

EP4CE6E22C8 FPGA Development Board
0104110000008961
New product
FPGA development board with EP4CE6E22C8 integrated circuit used is to know the functionality of FPGAs and the differences between them and normal microcontrollers.
See description for more details about the product.
Add to cart now!
This product is no longer in stock
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Technical specifications
- Integrated circuit EP4CE6E22C8
- Total number of logical gates: 6272
- Total I / O pins: 92
- RAM: 276480 bit
- Number of PLLs: 2
- Communication JTAG
- Power can be made through the USB port
Dimensions: 80 x 50mm.
The EP4CE6E22C8 Integrated Circuit Board FPGA is a beginning when you want to learn to program FPGAs. The name of the FPGA comes from the Field - Programmable Gate Array, which means that the integrated circuit is actually a string of logical gates, and the links between them can be programmed.
Even if at first sight FPGAs do not seem at all important and not very performing, there are areas of activity in which they offer very high performance, but they only perform certain tasks for which they are thought.
To program them, you need a USB Blaster programmer, which you can also find in our offer.
