ESP-EYE Development Board V2.1

P4095

New product

Ever wanted to dabble in face and/or speech recognition? Espressif's ESP-EYE is a miniature ESP32-based development board that combines a digital microphone, ESP32 (of course) with 8 MB PSRAM and 4 MB flash, and a 2 megapixel camera.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$48.00
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info


Description

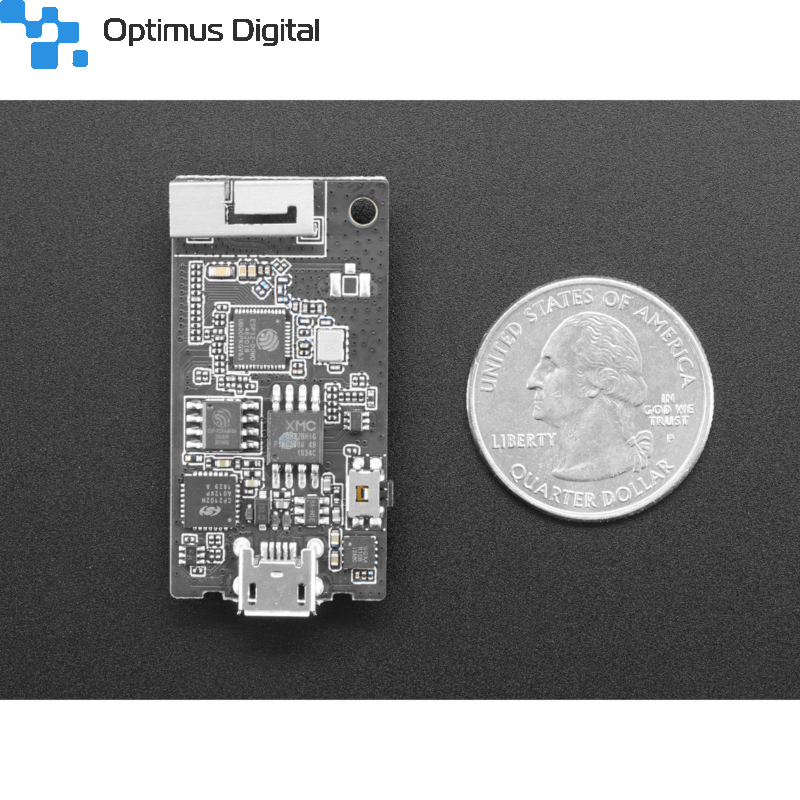

Ever wanted to dabble in face and/or speech recognition? Espressif's ESP-EYE is a miniature ESP32-based development board that combines a digital microphone, ESP32 (of course) with 8 MB PSRAM and 4 MB flash, and a 2 megapixel camera. There's a few buttons and LEDs as well for basic control and configuration.

Unlike some boards, this codebase does not require internet connectivity - you don't have to send video or audio data to 'the cloud' - it's all processed on-chip! The built in demo shows off what it can do:

  • Plug into a computer USB port and open up a serial port connection at 115,200 baud to the new serial port
  • Once the red LED is lit, activate the board with the watchword "Hi Lehshin" (in documents they spell it lexin, the x is pronounced as a shh sound)
  • The red LED will blink - then connect to the new Wi-Fi access point created
  • Open up a web browser to http://192.168.4.1/face_stream
  • Point the camera at faces to show off the recognition boxes! Video is about 2 frames per second, not super fast.


Specifications

  • WiSoC ESP32 dual core Tensilica LX6 processor with WiFi and Bluetooth
  • Memory: 8MB PSRAM
  • Storage: 4MB Flash
  • Camera: 2MP OV2640 Camera
  • Audio: MEMS Microphone
  • USB: 1 microUSB port for power and programming over serial
  • Misc: Reset, boot and function buttons, 2x LEDs
  • Dimensions: 41 x 21 mm

For product support and replacement parts for Espressif Systems products visit the forum page or contact Espressif System directly https://www.espressif.com/

Don't forget to visit esp32.com for the latest and greatest in ESP32 news, software and gossip!
