0.36" 4 Digit LED Display Common Anode

0104110000003607

New product

4-digit red LED display with common anode.


See description for more details about the product.

Add to cart now!

More details

7 Items

$0.95
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Technical specifications

  • LED voltage drop: 2 V - 2.2 V
  • Recommended voltage drop on LED: 2.1 V
  • Current Current: 20 mA
  • Wavelength: 640 nm
  • Operating temperature: -25oC to + 85oC
  • Light intensity: 55 mcd
  • Dimensions: 30 mm x 14 mm x 7.2 mm


The 4-digit red LED display module, each with 7 segments, is useful in electronic assemblies where numbers must be displayed. Being 4 digits is useful for displaying time or timer.

The module has a common connection for each digit of the LED anode.

The pinout is 12 pins, two rows of 6 pins, and is represented by the parallel cathodes of the leds and the four common anodes.


Don't delay, buy today.


Add to cart now!

Reviews

Grade
05/01/2017

afisaj led

Calitate foarte buna si consum mic de curent

  • 3 out of 3 people found this review useful.

Write your review!

Write a review

0.36" 4 Digit LED Display Common Anode

0.36" 4 Digit LED Display Common Anode

4-digit red LED display with common anode.


See description for more details about the product.

Add to cart now!

Customers who bought this product also bought:

Download

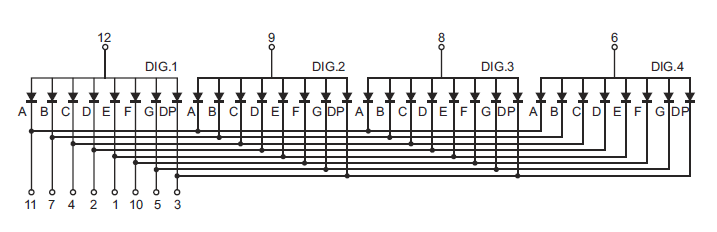

Pinout display 4 digit A

Download (14.05k)

Pinout display 4 digit

Download (19.44k)
