SmartElex 10S DC Motor Driver HAT

103711

New product

Brush DC Motors Drivers are the most widely used drivers due to their low cost and simple drive control options. SmartElex 10S DC Motor Driver HAT is one of its powerful motor driver boards. This motor driver has a lot of great features that make it useful for a wide variety of mechatronics applications.


See Description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$12.00
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

Brush DC Motors Drivers are the most widely used drivers due to their low cost and simple drive control options. SmartElex 10S DC Motor Driver HAT is one of its powerful motor driver boards. This motor driver has a lot of great features that make it useful for a wide variety of mechatronics applications.

The wide operating voltage range and easy to interface with microcontrollers (MCU) allow you to quickly adopt this module into applications.

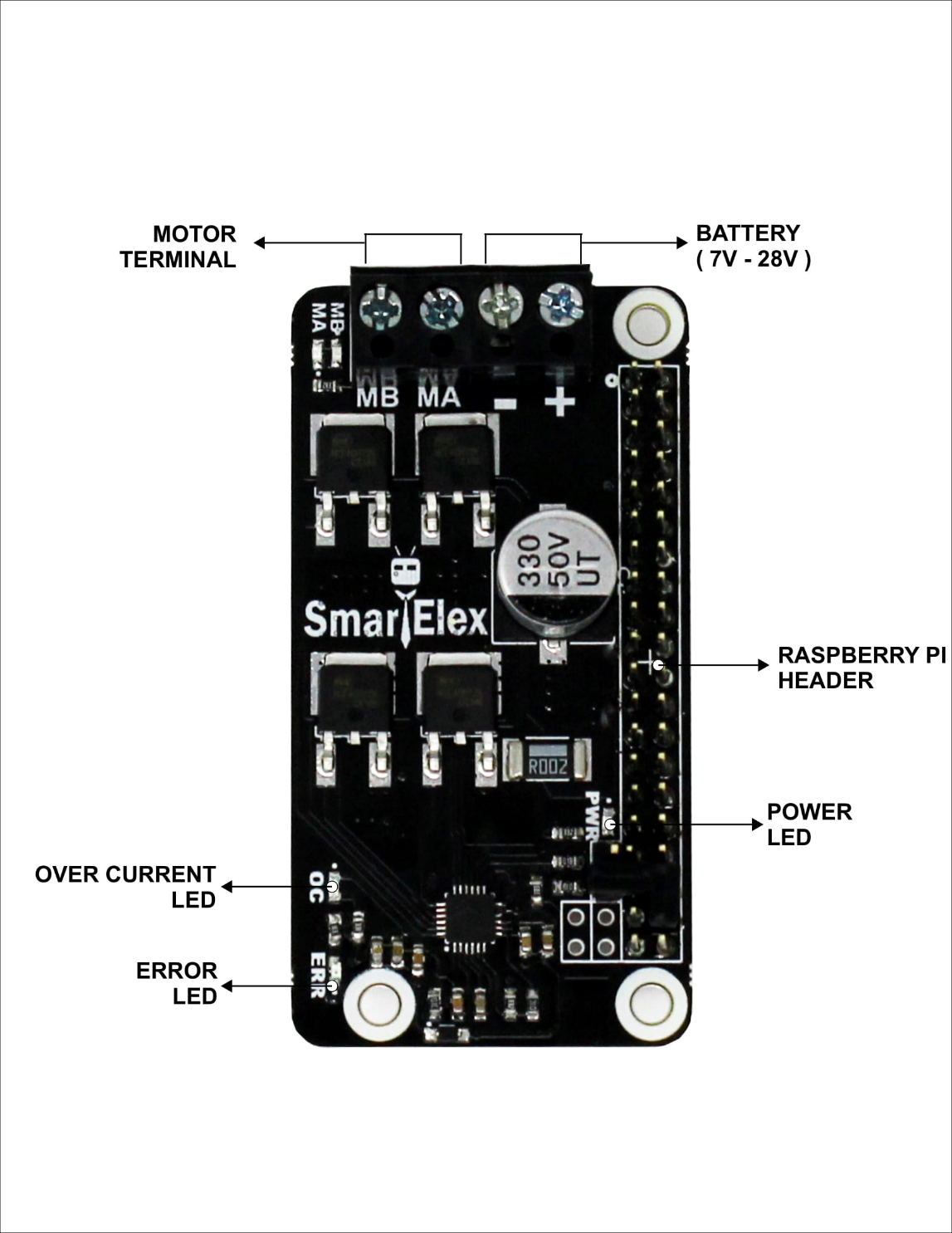

Pin Description


Features

  • Wide 6V to 28V motor Operating Voltage.
  • One brushed DC motor Bidirectional control.
  • Current limiting at 35A.
  • PWM frequency up to 32KHz
  • Support TTL PWM from the microcontroller
  • Internal thermal shutdown
  • Under-voltage lockout
  • PWM and direction controlled driving of four externally powered NMOS transistors
  • 3V and 5V logic level input. Continuous 10A maximum current without Heatsink and 30A peak current for 10 Seconds

Specifications
Driver Model SmartElex 10S
Operating Voltage(VDC) 6~28
Peak Current (A) 30 (10 seconds)
Continuous Current (A) 10
No. of Channels 1
Over-Current Protection (A) Yes
Thermal Protection Yes
LED Indicator Yes
Cooling Fan NO
Arduino Sheild No- can be used with Wire connection
Speed Control Yes
Polarity Protection NO
Dimensions in mm (LxWxH) 58 x 34 x 30
Weight (gm) 21
Others Current limiting at 35A.
