Digital Servomotor with High Torque Pololu HD-1235MG

6939123512357

New product

The Power HD 1235MG servo is all about torque. This 1/4-scale servo can deliver an incredible 560 oz-in of torque at 7.4 V or 490 oz-in at 6 V, and it features an all-metal gear train, digital control electronics, and two ball bearings on the output shaft.

Key specs at 7.4 V: 0.18 sec/60°, 560 oz-in (40 kg-cm), 170 g.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$85.20
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Overview

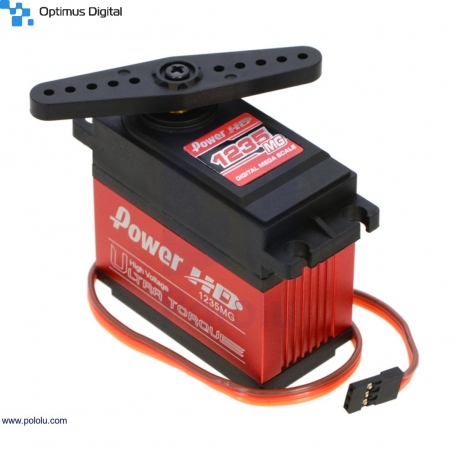

The HD-1235MG is a giant-scale (also called 1/4-scale or mega-scale) digital servo from Power HD that can deliver more than twice the torque of our strongest standard-size servo, offering up to 560 oz-in at 7.4V or 490 oz-in at 6 V. The picture on the right shows how the giant-size 1235MG compares to our popular 1501MG standard-size servo.

The entire gear train is metal, and the output shaft is supported by two ball bearings for improved performance. Unlike typical hobby servos, the 1235MG has an operating voltage range of 6 V to 7.4 V. This servo works with standard RC servo pulses at frequencies up to 333 Hz. The 12" (300 mm) lead is terminated with a standard "JR"-style connector, which is Futaba-compatible.

Note: This servo can draw a lot of current (e.g. the stall current is 9 A at 7.4 V), so please make sure you use an appropriate power supply. For comparison, a typical standard-size servo might draw around an amp when straining.

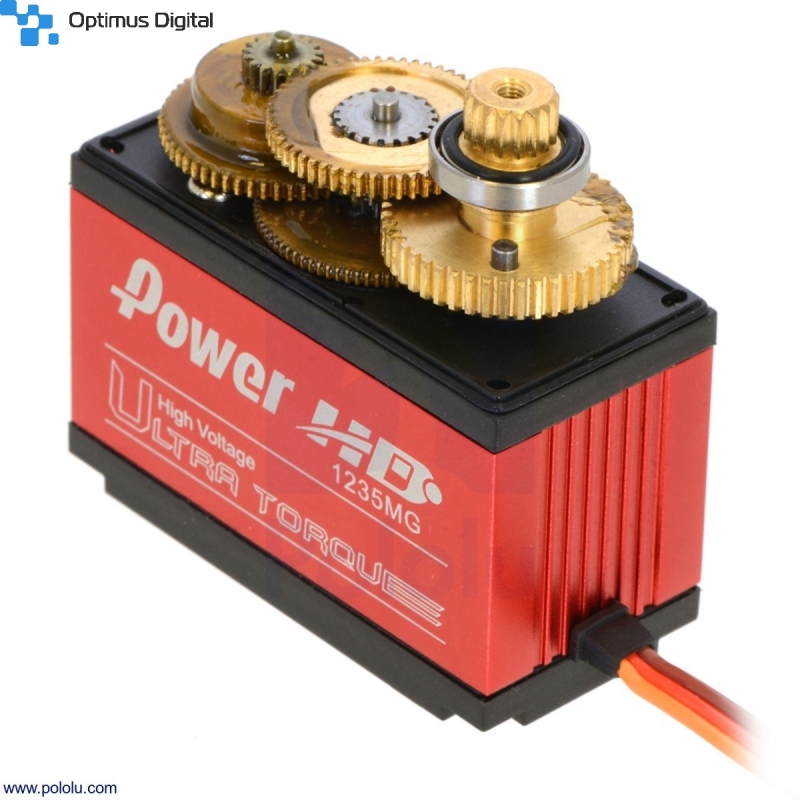

The picture below shows the all-metal gear train and ball bearings that help the servo deliver such high torque:


Gears and ball bearings of the Power HD 1235MG giant servo.


You can find more information about this servo under the specifications tab and in its datasheet (382k pdf).

Note that, as with most hobby servos, stalling or back-driving this servo can damage it.


Specifications

Dimensions

Size: 59.5 x 29.5 x 54.3 mm
Weight: 170 g


General specifications

Digital?: Y
Speed @ 7.4V: 0.18 sec/60°
Stall torque @ 7.4V: 40 kg·cm
Speed @ 6V: 0.20 sec/60°
Stall torque @ 6V: 35 kg·cm

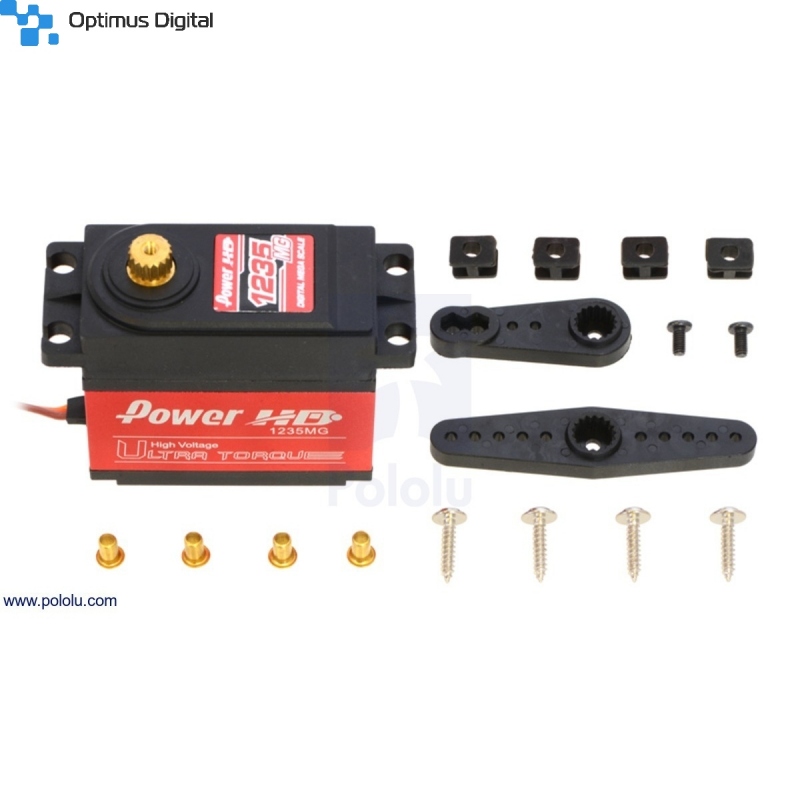

Hardware included?: Y
Lead length: 12 in
