> >>Sub-Micro Pololu Servo Motor 3.7 g
Sub-Micro Pololu Servo Motor 3.7 g View larger

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

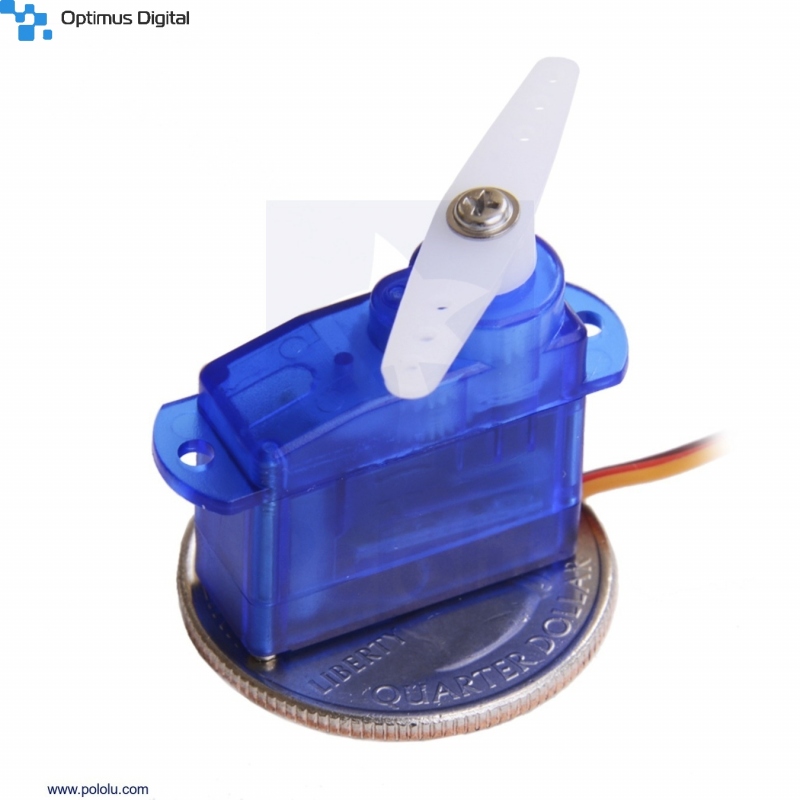

Sub-Micro Pololu Servo Motor 3.7 g

0104110000027375

New product

This generic sub-micro servo is one of the lightest servos we carry, weighing just 3.7 g (0.13 oz) without the lead. It is intended for use between 4.8 and 6 V (i.e. with 4- or 5-cell NiMH or NiCD battery packs). Servo horns and associated hardware are included.

Key specs at 6 V: 0.07 sec/60°, 6 oz-in (0.4 kg-cm), 3.7 g (0.13 oz).


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$8.40
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

This tiny servo is great for applications such as:

• Building a miniature walking robot.

• Creating grippers or other mechanisms for small robots.

• Moving control surfaces on small model aircraft.

It measures just 20.2 x 8.5 x 20.2 mm (0.80" x 0.33" x 0.80") and weighs only 3.7 g (0.13 oz) without its 15 cm (6") lead. The lead is terminated with a standard "JR"-style connector, which is Futaba-compatible. The distance between the two mounting holes is 23.5 mm.

The servo ships with additional servo horns.


Specifications

Dimensions

Size: 20.2 x 8.5 x 20.2 mm
Weight: 3.7 g


General specifications

Digital?: N
Speed @ 6V: 0.07 sec/60°
Stall torque @ 6V: 6 oz·in
Speed @ 4.8V: 0.09 sec/60°
Stall torque @ 4.8V: 4 oz·in
Hardware included?: Y
Lead length: 6 in
