100:1 Micro Metal Gearmotor HPCB 6V with Extended Motor Shaft

View larger

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

100:1 Micro Metal Gearmotor HPCB 6V with Extended Motor Shaft

Reference: 0104110000062437

Condition: New product

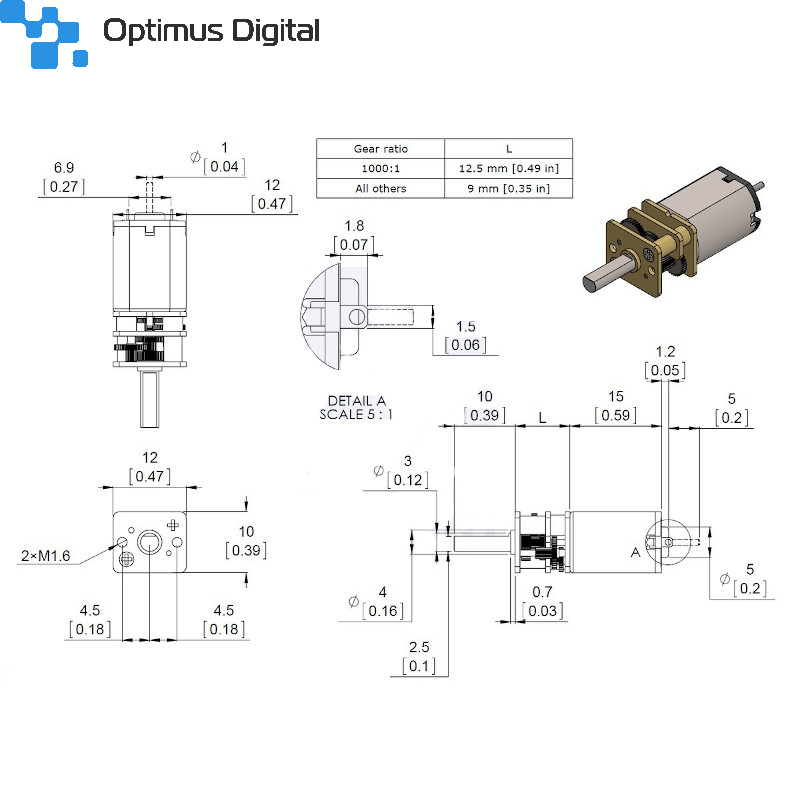

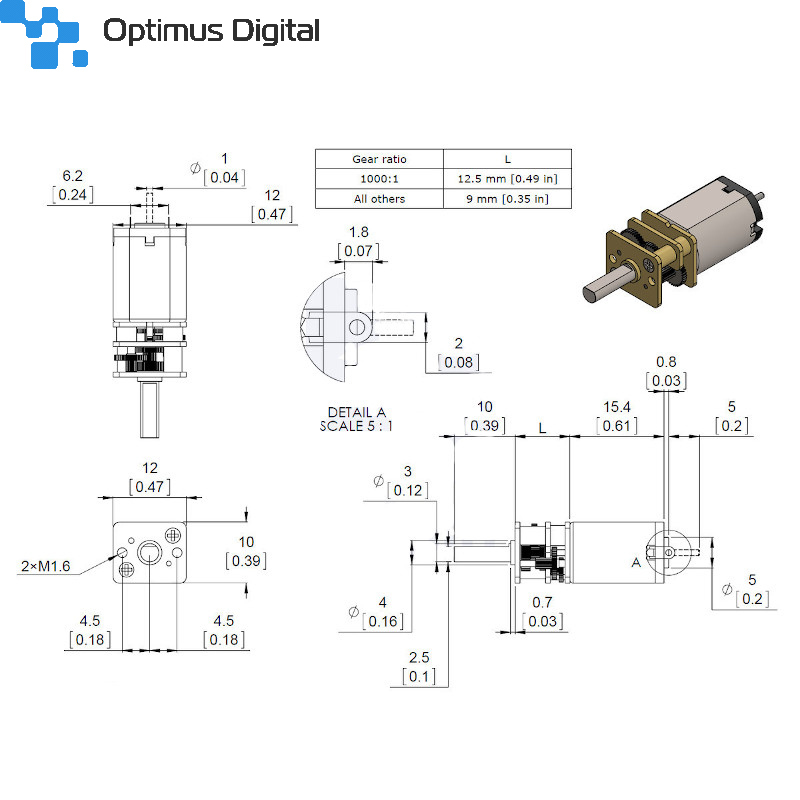

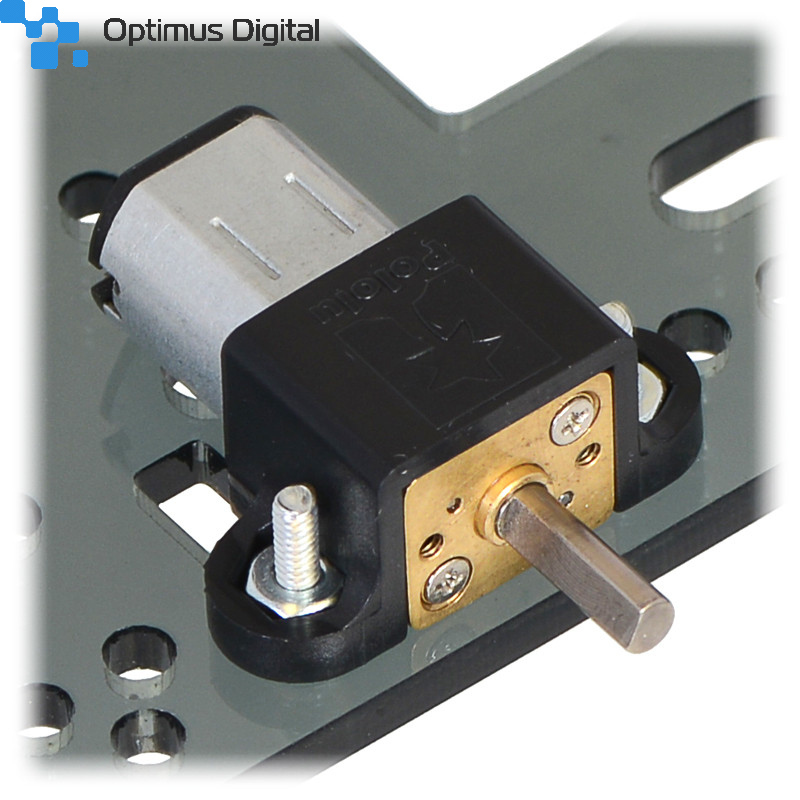

This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 100.37:1 metal gearbox. It has a cross section of 10 x 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 x 1 mm extended motor shaft.

Key specifications:

voltage	no-load performance	stall extrapolation
6 V	330 RPM, 100 mA	1.6 kg⋅cm (22 oz⋅in), 1.5 A

See Description for more details about the product.

Don't delay, buy today. Add to cart now!

More details

This product is no longer in stock

Notify me when available

Write a review

Remove this product from my favorite's list.

Add this product to my list of favorites.

More info

OVERVIEW

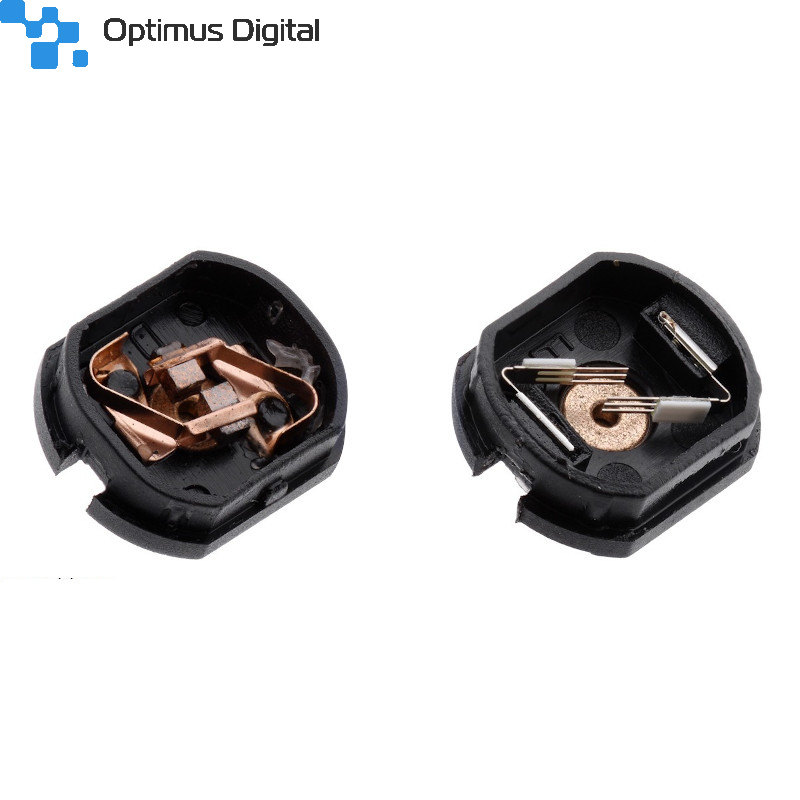

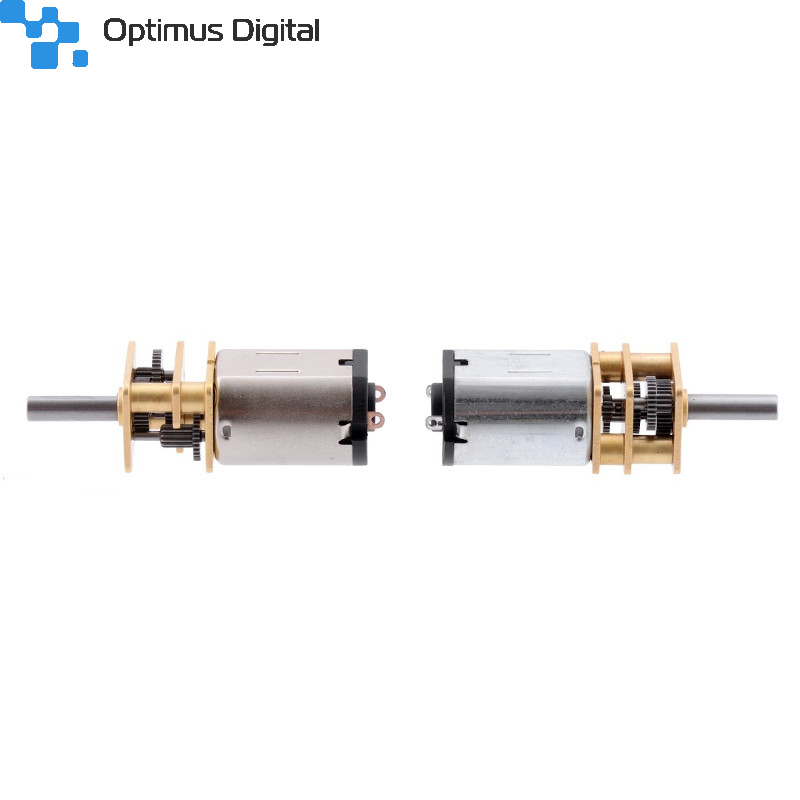

The HPCB versions (shown on the left in the picture below) can be differentiated from versions with precious metal brushes (shown on the right) by their copper-colored terminals. Note that the HPCB terminals are 0.5 mm wider than those on the other micro metal gearmotor versions (2 mm vs. 1.5 mm), and they are about 1 mm closer together (6 mm vs. 7 mm).

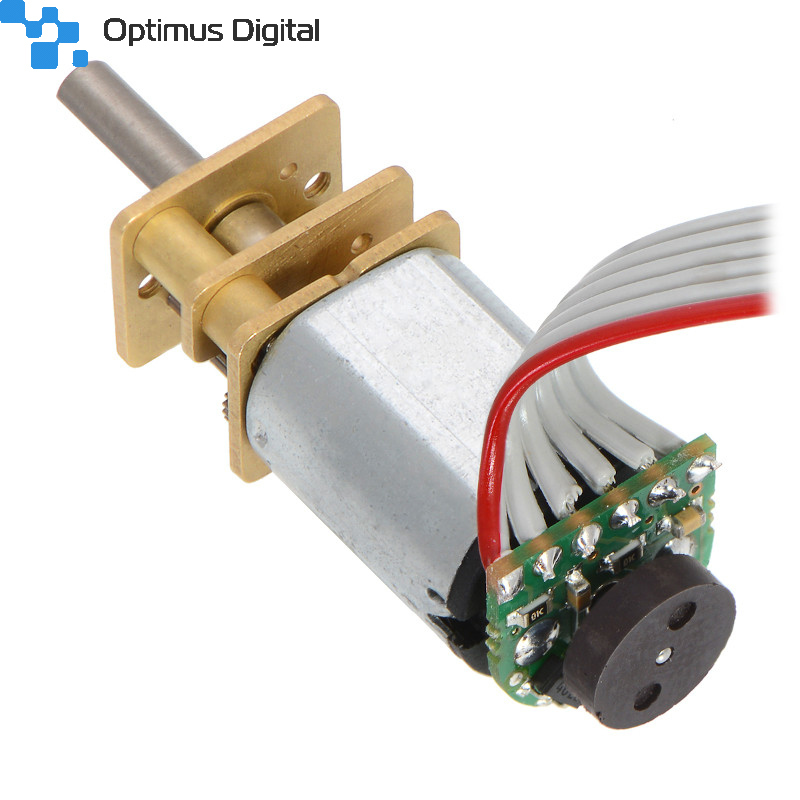

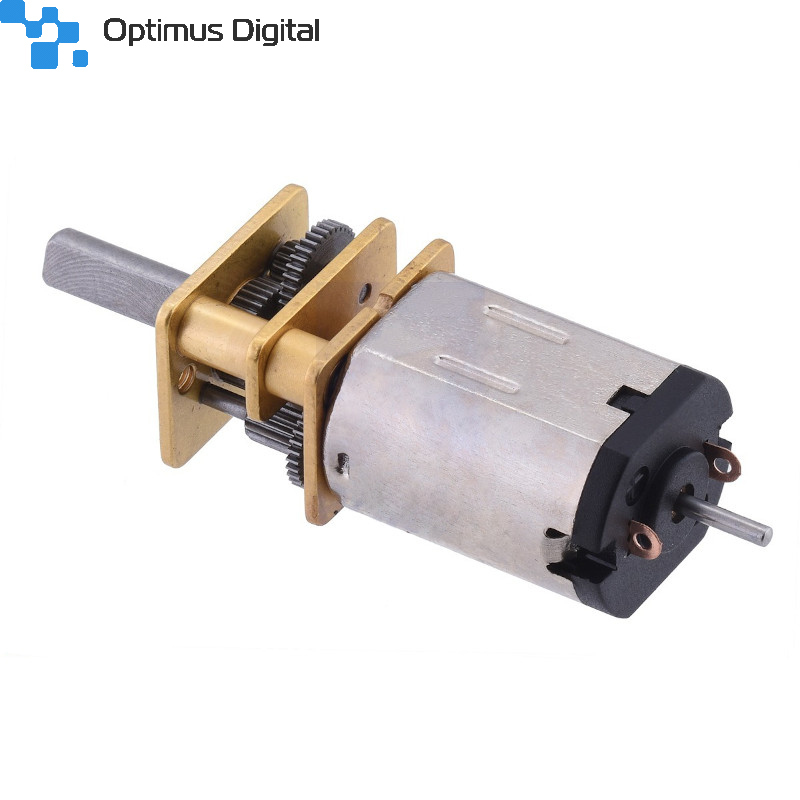

Versions of these gearmotors are also available with an additional 1 mm-diameter output shaft that protrudes from the rear of the motor. This 4.5 mm-long rear shaft rotates at the same speed as the input to the gearbox and offers a way to add an encoder, such as our magnetic encoder for micro metal gearmotors (see the picture on the right), to provide motor speed or position feedback.

With the exception of the 1000:1 gear ratio versions, all of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.
