75:1 Micro Metal Gearmotor HPCB 6V

Overview

These tiny brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V and 12 V motors with long-life carbon brushes (HPCB), and high-power (HP), medium-power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. The 6 V and 12 V HPCB motors offer the same performance at their respective nominal voltages, just with the 12 V motor drawing half the current of the 6 V motor. The 6 V HPCB and 6 V HP motors are identical except for their brushes, which only affect the lifetime of the motor.

The HPCB versions (shown on the left in the picture below) can be differentiated from versions with precious metal brushes (shown on the right) by their copper-colored terminals. Note that the HPCB terminals are 0.5 mm wider than those on the other micro metal gearmotor versions (2 mm vs. 1.5 mm), and they are about 1 mm closer together (6 mm vs. 7 mm).

Please see the micro metal gearmotor datasheet (2MB pdf) for more information, including detailed performance graphs for each micro metal gearmotor version.

Details

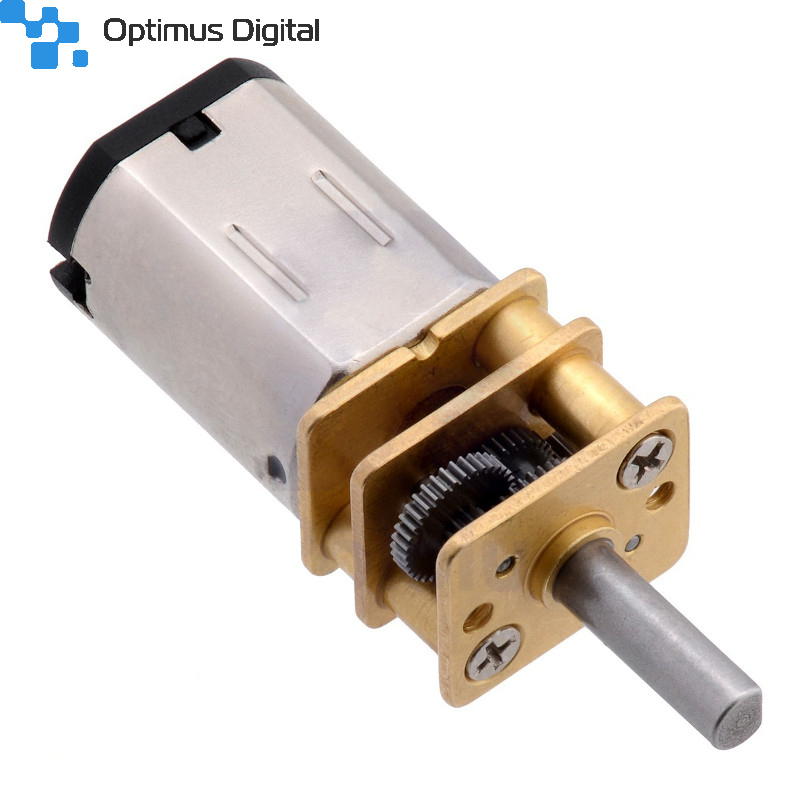

This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 75.81:1 metal gearbox. It has a cross section of 10 x 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.

Key specifications:

Gearmotor Dimensions

In terms of size, these gearmotors are very similar to Sanyo’s popular 12 mm NA4S DC gearmotors, and gearmotors with this form factor are occasionally referred to as N20 motors. The versions with carbon brushes (HPCB) have slightly different terminal and end-cap dimensions than the versions with precious metal brushes, but all of the other dimensions are identical.

Dimensions of versions with carbon brushes (HPCB)

Dimensions of the Pololu micro metal gearmotors with carbon brushes (HPCB). Units are mm over [inches].

Dimensions of versions with precious metal brushes (LP, MP, and HP)

Dimensions of the Pololu micro metal gearmotors with precious metal brushes: low-power (LP), medium-power (MP), and high-power (HP). Units are mm over [inches].

These diagrams are also available as a downloadable PDF (262k pdf).

Selecting the Right Gearmotor

We offer a wide selection of metal gearmotors that offer different combinations of speed and torque.

Specifications

Dimensions

General specifications

Performance at maximum efficiency

Notes:

1 Output shaft adds 9 mm to the 26 mm length.
2 D shaft.
