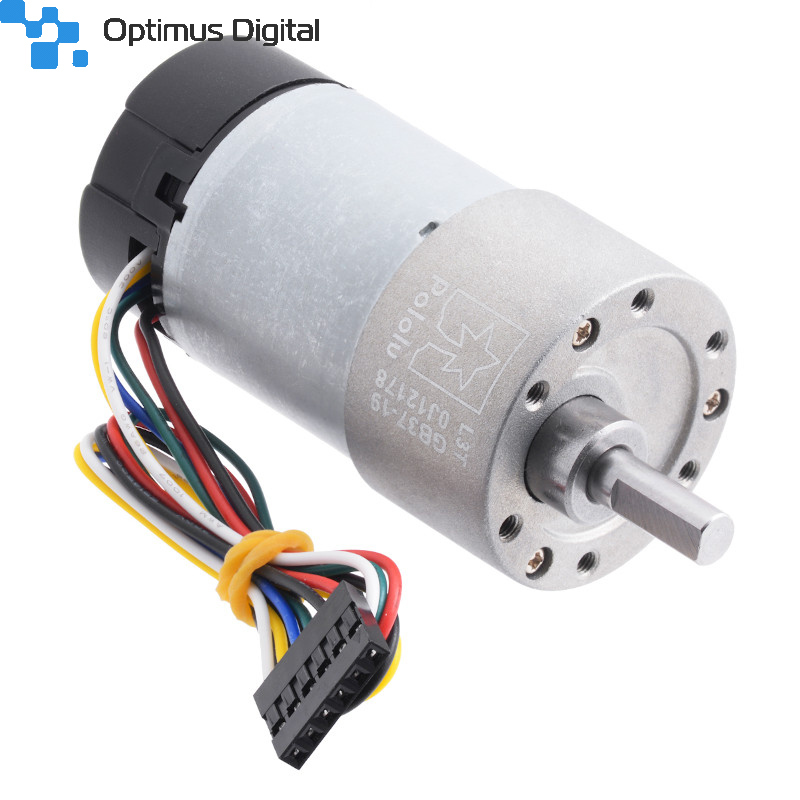

150:1 Metal Gearmotor 37Dx73L mm with 64 CPR Encoder (Helical Pinion)

Overview

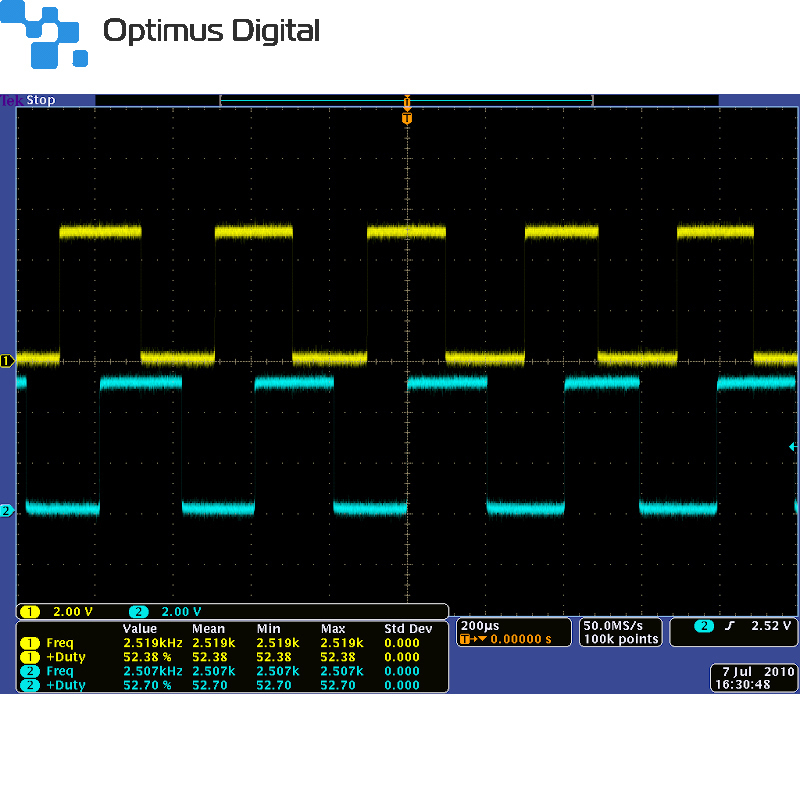

These powerful brushed DC gearmotor are available in a variety of different gear ratios and feature integrated quadrature encoders with 64 counts per revolution (CPR) of the motor shaft. The motor and encoder portion are available by itself (no gearbox), and versions without the encoder are also available.

Note: Stalling or overloading gearmotors can greatly decrease their lifetimes and even result in immediate damage. In order to avoid damaging the gearbox, we recommend keeping continuously applied loads under 10 kg-cm (150 oz-in), and the recommended upper limit for instantaneous torque is 25 kg-cm (350 oz-in). Stalls can also result in rapid (potentially on the order of seconds) thermal damage to the motor windings and brushes; a general recommendation for brushed DC motor operation is 25% or less of the stall current.

These motors are intended for use at 12 V, though in general, these kinds of motors can run at voltages above and below the nominal voltage (they can begin rotating at voltages as low as 1 V). Lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor.

The gearboxes are composed mainly of spur gears, but they feature helical gears for the first stage for reduced noise and improved efficiency:

37D Gearmotor (Helical Pinion) with the gearbox removed showing the helical pinion gear and first mating gear.

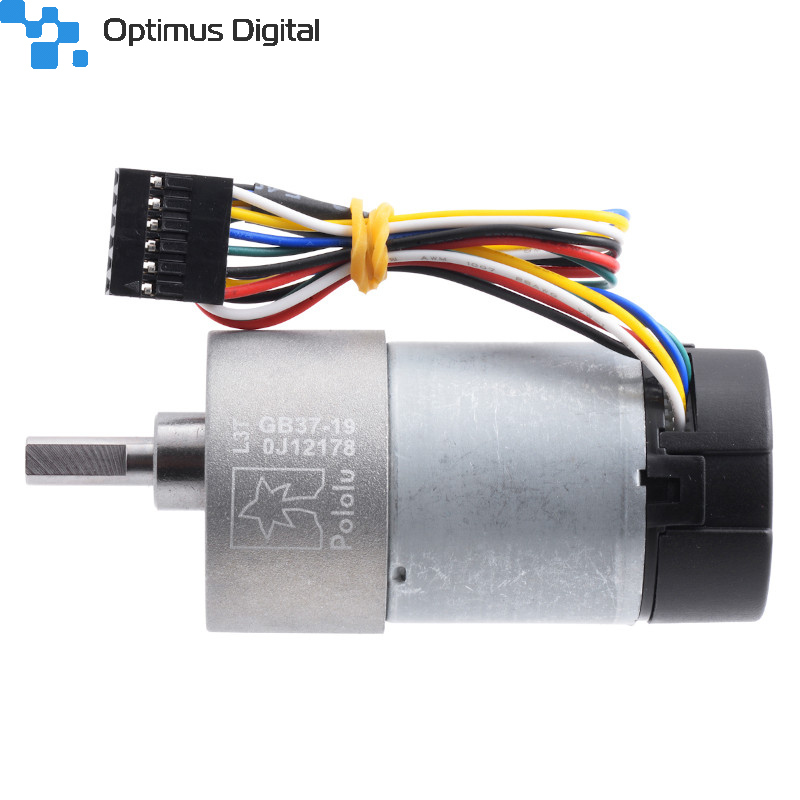

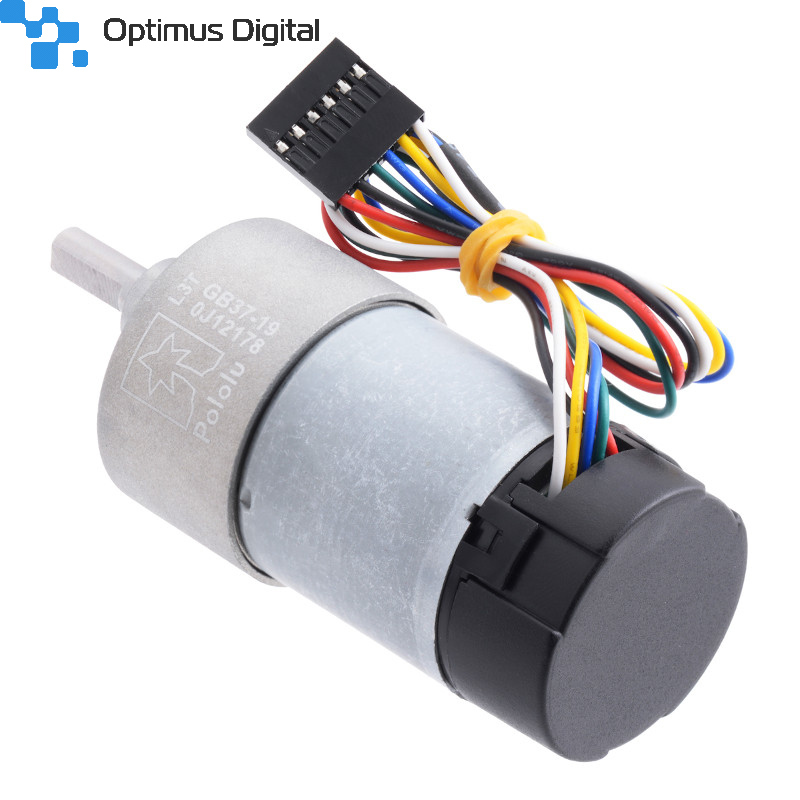

The encoder portion is protected by a black plastic end cap:

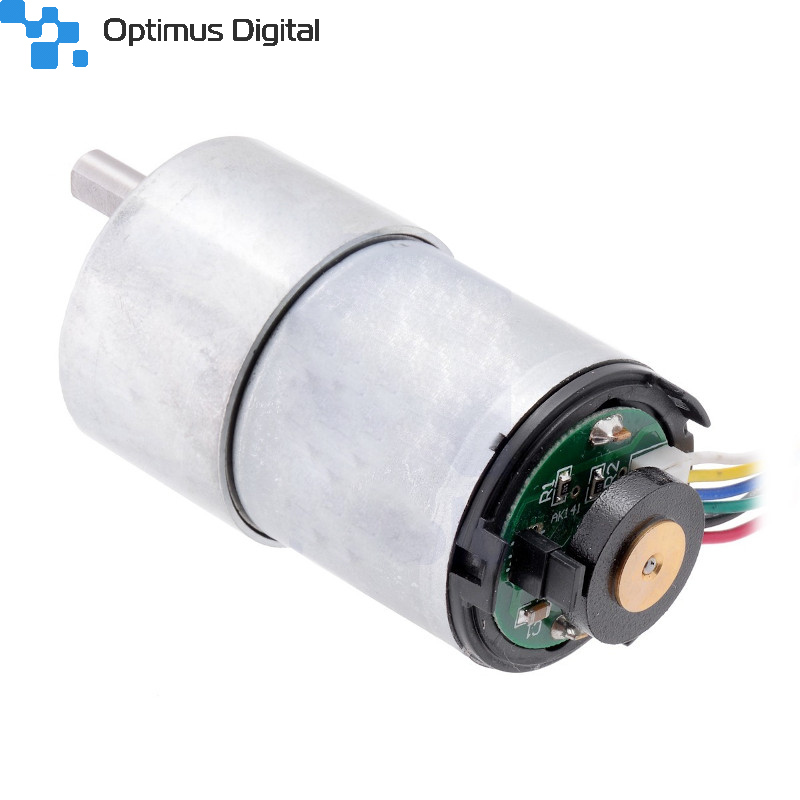

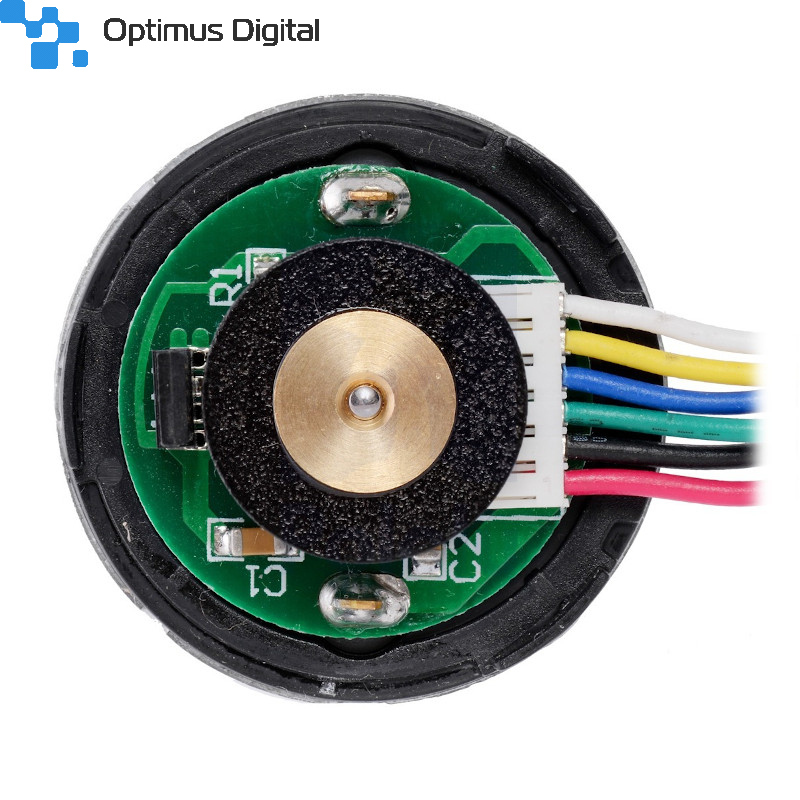

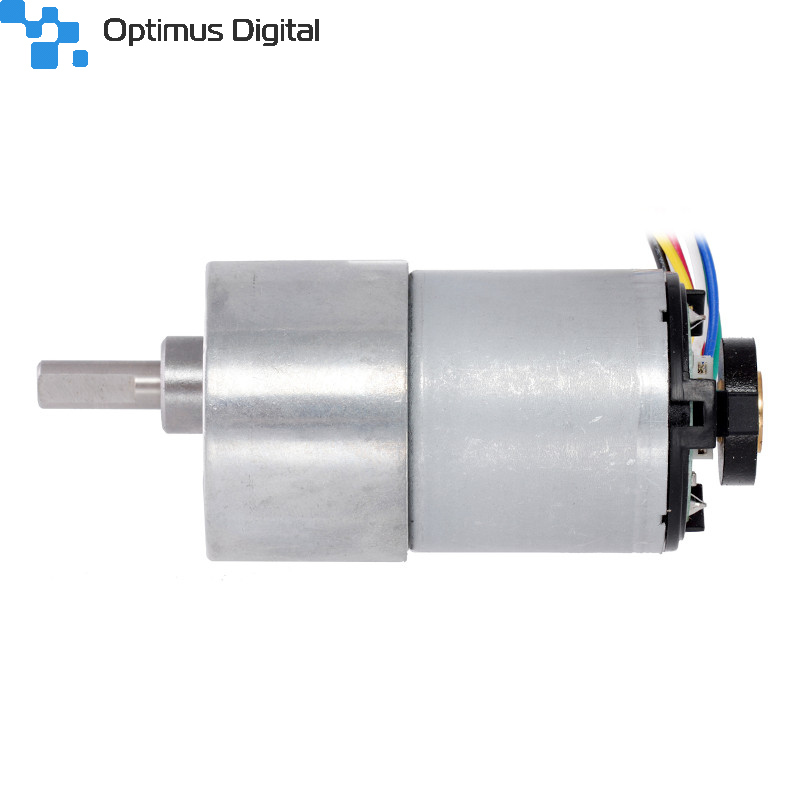

The end cap is easily removable if you need to access the encoder or want to slightly reduce the overall gearmotor size, but there is a little bit of base plastic that will remain, as shown in the pictures below:
