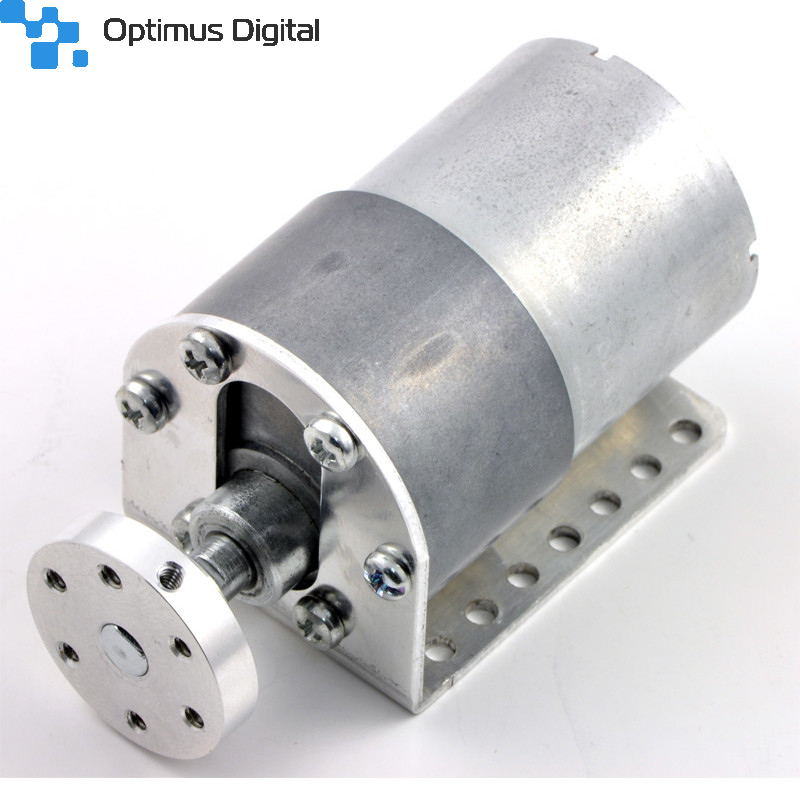

30:1 Metal Gearmotor 37Dx52L mm (Helical Pinion)

0104110000065971

New product

This gearmotor is a powerful brushed DC motor with 30:1 metal gearbox intended for operation at 12 V. The gearbox is composed mainly of spur gears, but it features helical gears for the first stage for reduced noise and improved efficiency. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available with an integrated encoder.

Key specifications:

voltage no-load performance stall extrapolation
12 V 330 RPM, 150 mA 14 kg⋅cm (190 oz⋅in), 5.5 A

See Description for more details about the product.

Don't delay, buy today. Add to cart now!

More details

This product is no longer in stock

$40.56
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Overview

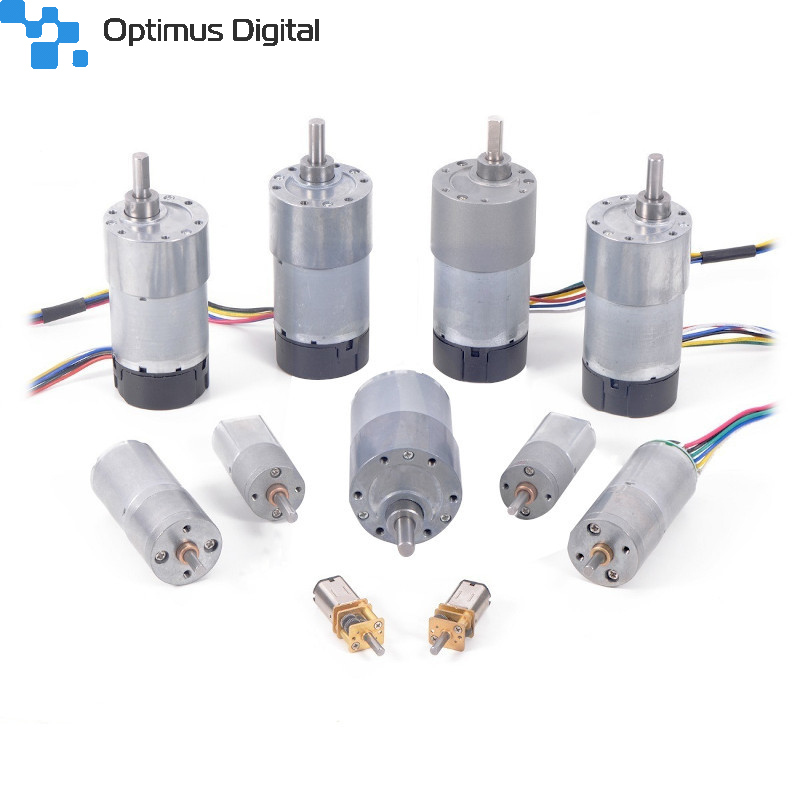

These powerful brushed DC gearmotors are available in a variety of different gear ratios. Versions with an integrated quadrature encoder are also available, including just the motor and encoder portion by itself (no gearbox).

Rated
Voltage		 Stall
Current		 No-Load
Current		 Gear Ratio No-Load Speed
(RPM)		 Extrapolated
Stall Torque		 Max Power
(W)



Without Encoder



With Encoder
(kg ⋅ cm) (oz ⋅ in)
12 V






 5.5 A






 0.15 A






 1:1 (no gearbox) 10,000 0.5 7 - - item #4750
19:1 540 8.5 120 12 item #4741 item #4751
30:1 330 14 190 12 item #4742 item #4752
50:1 200 21 290 10 item #4743 item #4753
70:1 150 27 380 10 item #4744 item #4754
100:1 100 34 470 8 item #4745 item #4755
131:1 76 45 630 6 item #4746 item #4756
150:1 67 49 680 6 item #2829 item #2828

Note: Stalling or overloading gearmotors can greatly decrease their lifetimes and even result in immediate damage. In order to avoid damaging the gearbox, we recommend keeping continuously applied loads under 10 kg-cm (150 oz-in), and the recommended upper limit for instantaneous torque is 25 kg-cm (350 oz-in). Stalls can also result in rapid (potentially on the order of seconds) thermal damage to the motor windings and brushes; a general recommendation for brushed DC motor operation is 25% or less of the stall current.


These motors are intended for use at 12 V, though in general, these kinds of motors can run at voltages above and below the nominal voltage (they can begin rotating at voltages as low as 1 V). Lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor.

The gearboxes are composed mainly of spur gears, but they feature helical gears for the first stage for reduced noise and improved efficiency:

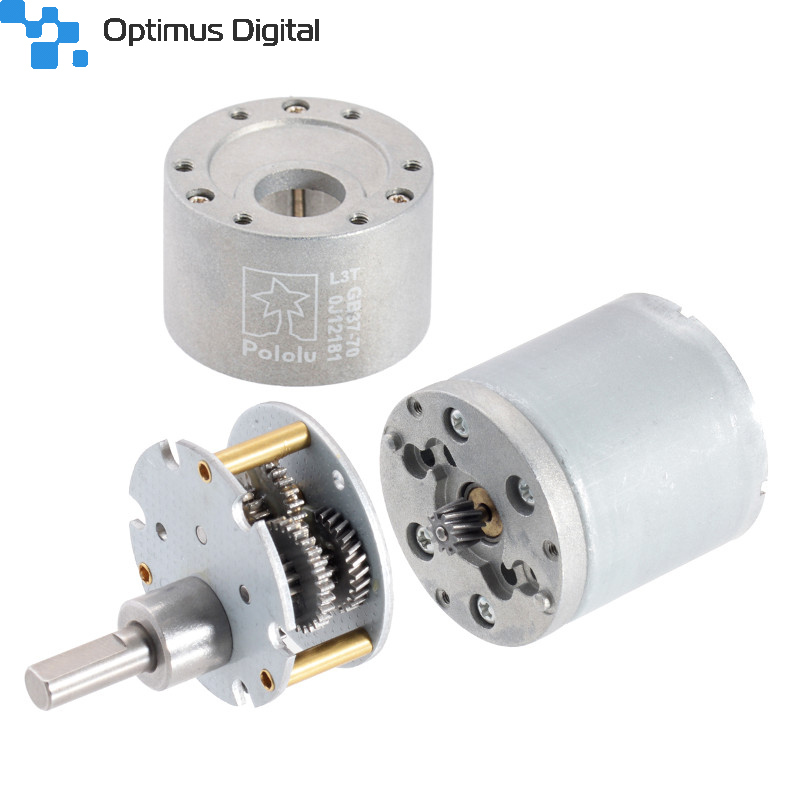

37D Gearmotor (Helical Pinion) with the gearbox removed showing the helical pinion gear and first mating gear.
