Ball Caster with 3/4" Plastic Ball

Overview

This ball caster kit includes a black ABS housing, a 3/4" diameter plastic ball, three dowel pin rollers, two spacers (1/16" and 1/8" thick), and two 7/16" #2 screws and nuts. The total height of the ball caster, 0.88", can be increased to about 1.1" using the included spacers. The two included #2 screws can be used to mount the ball caster to your chassis, or you can use your own #2 or M2 screws if your application requires a different length.

Note that our ball casters are designed for small robots; they are not intended to bear more than a few pounds. With more weight than this, friction between the ball and the housing will generally keep it from rolling well.

For detailed dimensions, see the dimension diagram (159k pdf).

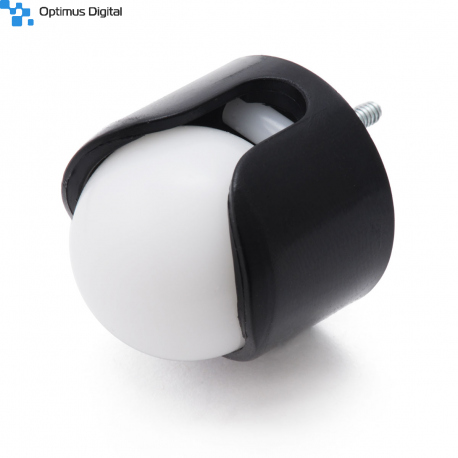

Pololu ball caster with 3/4" plastic ball with included hardware.

Pololu ball casters with plastic and metal balls. Ball diameter from left to right: 1", 3/4", 1/2", and 3/8".
