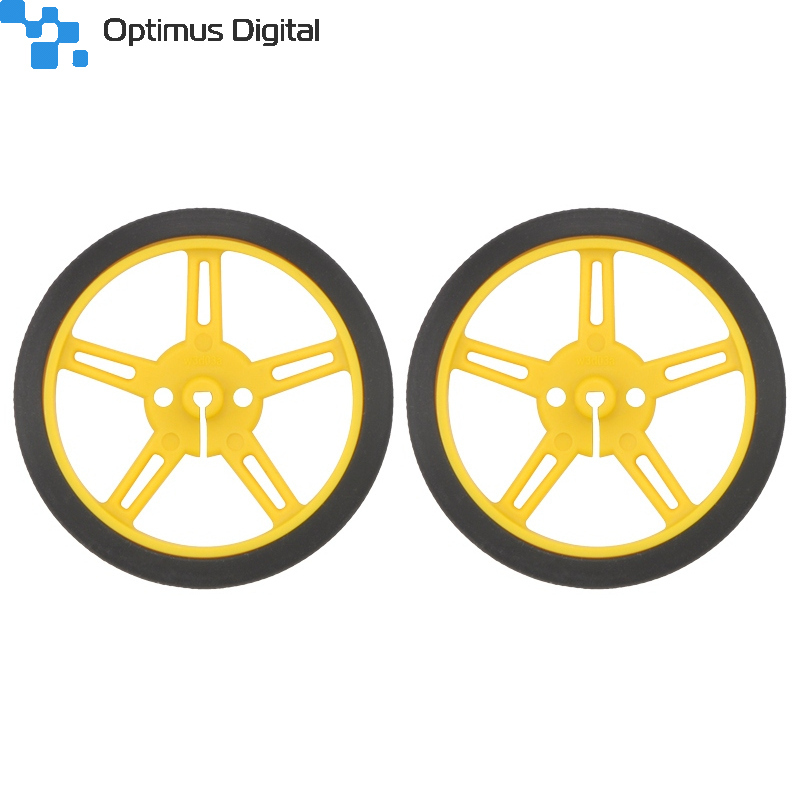

Wheel 60×8mm Pair - Yellow

Overview

These wheels are great for robotics, custom RC vehicles, or any other project you need to get rolling. They measure 60 mm (2.36") in diameter and are designed to press-fit securely onto D output shafts with a diameter of 3 mm. They are compatible with many of our gearmotors, including our micro metal gearmotors and our mini plastic gearmotors. Two additional mounting holes for 4-40 screws make it possible to use the wheel with several of our universal mounting hubs. They also work with our 35:1 and 115:1 15.5D metal gearmotors, as well as with our selection of Solarbotics metal gear motors. wo additional mounting holes for 4-40 screws make it possible to use the wheel with our universal mounting hubs for 3mm shafts, 4mm shafts, and 5mm shafts. The slots in the five spokes allow additional accessories to be mounted to the wheel (e.g. decorations or parts of an encoder system).

The pictures below show this wheel with a universal mounting hub for 4mm shafts installed so it can work with 20D or 25D metal gearmotors.

White Pololu Wheel 60x8mm on a Pololu 20D mm Metal Gearmotor.

Pololu Universal Mounting Hub for 4mm Shaft mounted to Pololu Wheel 60x8mm.

Details

Parts included with Pololu Wheel 60x8mm Pair – Yellow.

This is the yellow version of our 60x8mm wheel pair. These same-sized wheels are also available in black, red, and blue.

Specifications

Dimensions

General specifications

Notes:

1 Per wheel, including tire.
2 D-shaped hole for press fit.
