14 × 4.5 mm Pololu Wheels for Sub-Micro Planetary Plastic Reduction Motors

0104110000023797

New product

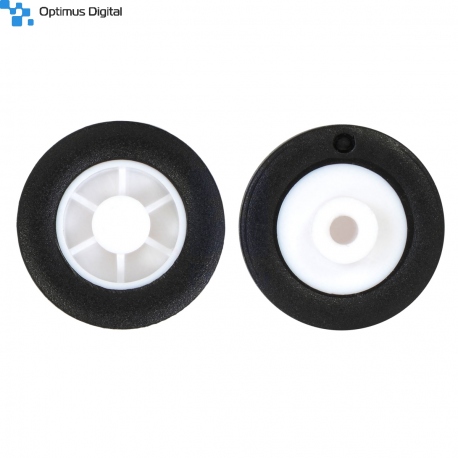

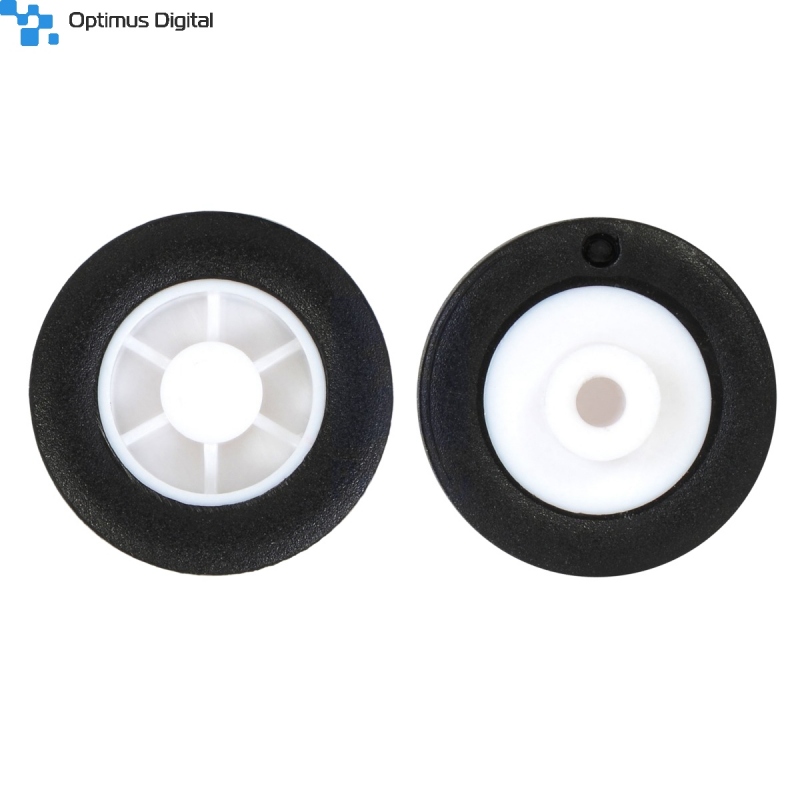

These tiny plastic wheels have rubber tires and are compatible with 2 mm diameter shafts. The outer diameter of the wheel is 14 mm and the tire is 4.5 mm wide. These wheels are sold in pairs.


See description for more details about the product.

Add to cart now!

More details

6 Items

$1.92
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

-$0.48

$2.40 tax incl.

Add to wishlist

More info

Description

Motor connections

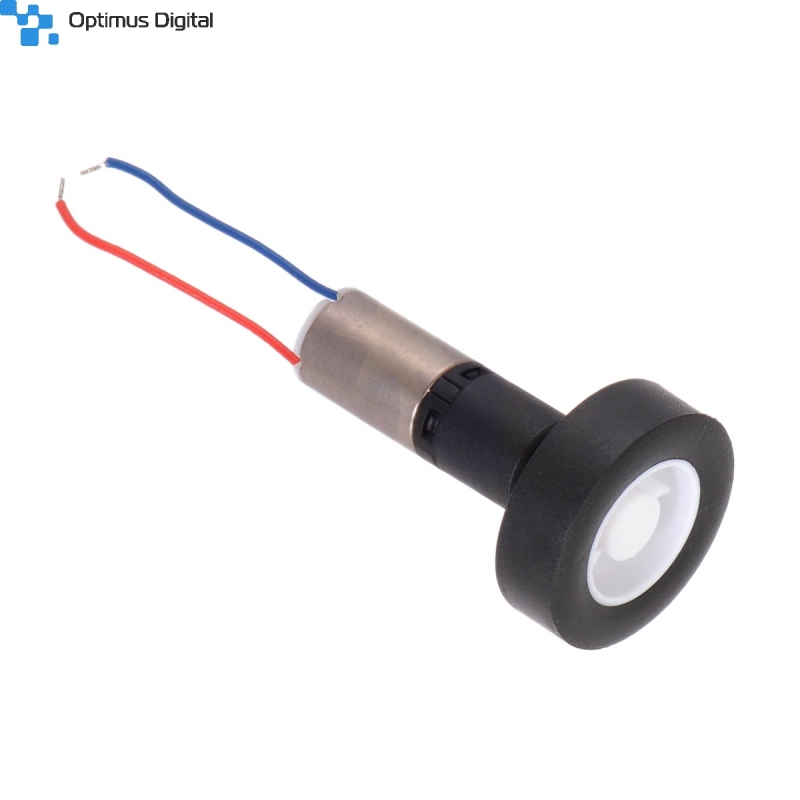

These wheels fit 2 mm diameter output shafts such as the sub-micro plastic planetary gearmotors. The tire is not removable.

Due to small variances in the sub-micro plastic gearmotor’s output shaft, in some instances, the 14 mm wheel might fit loosely. If you experience a loose fit, you could try swapping wheels or using a small dab of glue to help hold the wheel on.


Specifications

The wheel hub is made of ABS and the tires are natural rubber.

• Diameter: 14 mm (0.55")

• Width of tire: 4.5 mm (0.18")

• Weight: 0.6 g (0.02 oz)

• Shaft type: 2 mm diameter

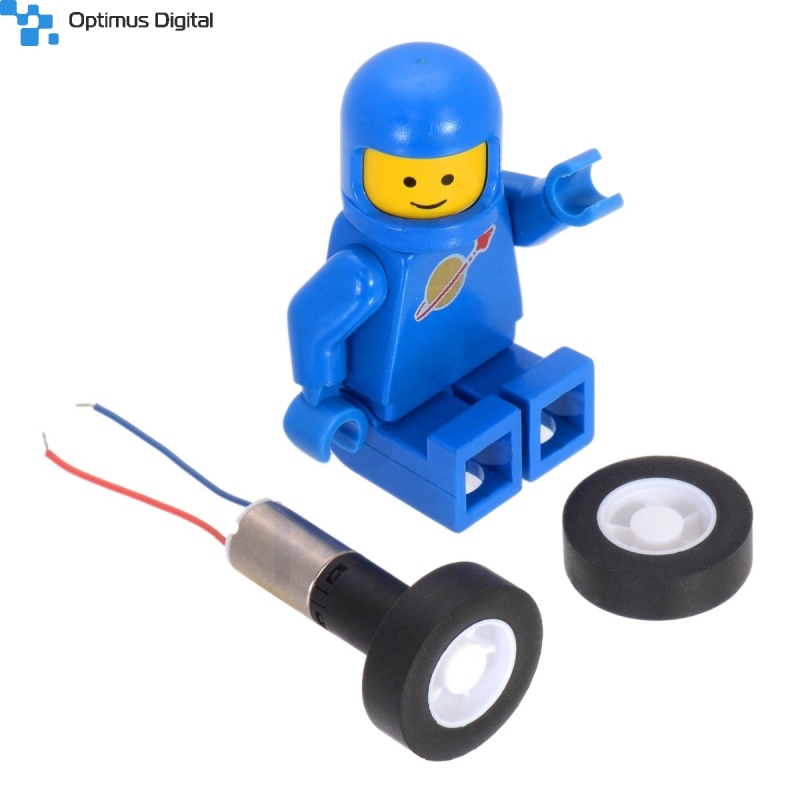

14×4.5mm wheel pair with a sub-micro plastic planetary gearmotor and LEGO Minifigure for size reference.

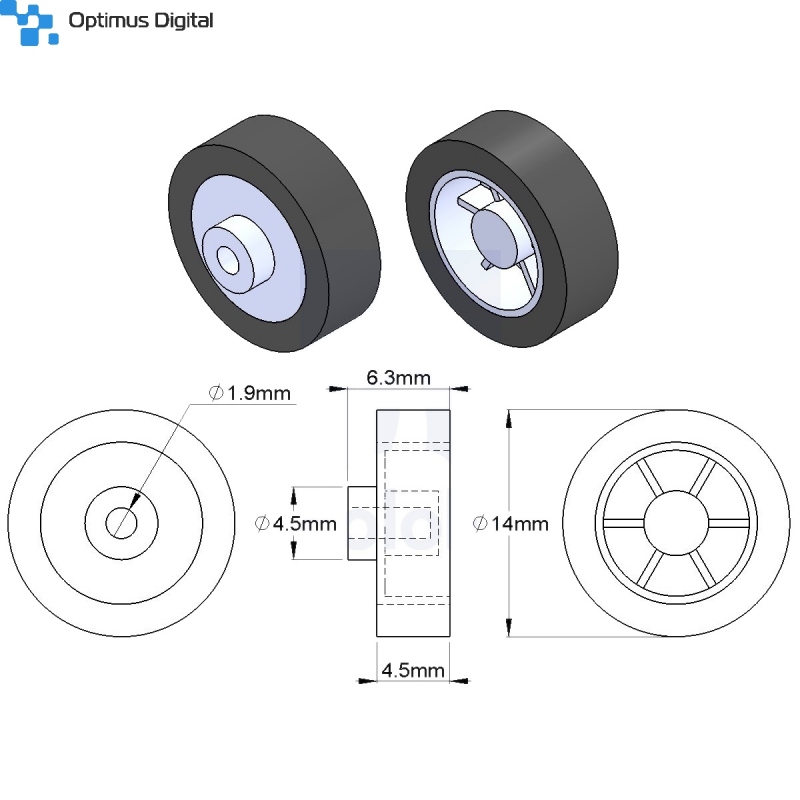

The following diagram shows the wheel’s dimensions in mm.


This dimension diagram is also available as a downloadable PDF (127k pdf).


Specifications

Dimensions

Size: 14 x 4.5 mm
Weight: 0.6 g
Shaft diameter: 2 mm
