New product
This plastic bracket provides a convenient way to mount standard-size servos with a side flat to a surface.
See Description for more details about the product.
Don't delay, buy today. Add to cart now!
0 Item Items
This product is no longer in stock
Warning: Last items in stock!
Availability date:

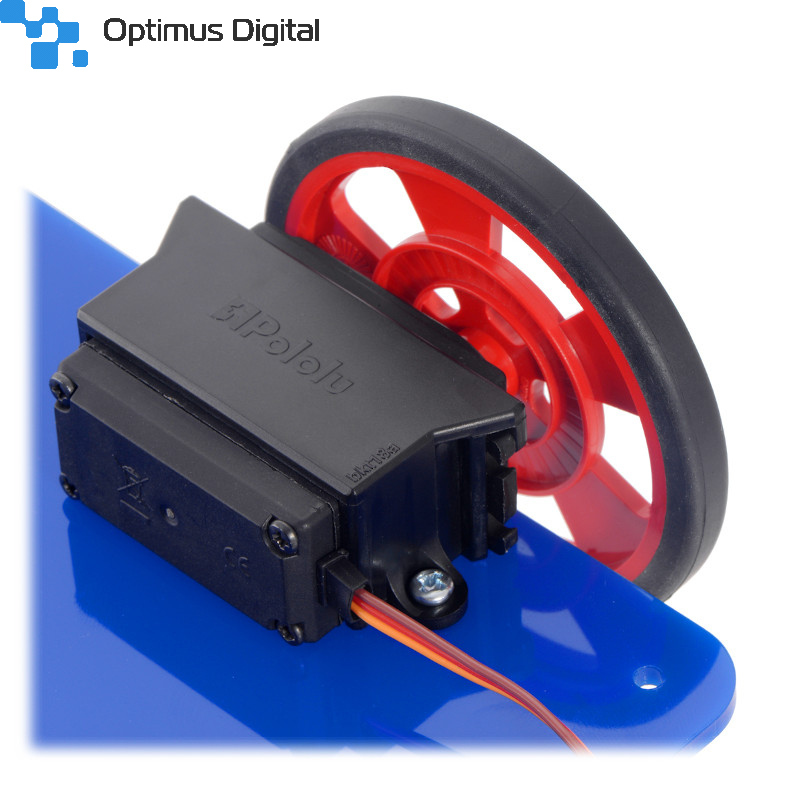

Rear view of Power HD Continuous Rotation Servo AR-3606HB and Solarbotics red servo wheel with Mounting Bracket for Standard-Size Servos.
Power HD 1501MG servo with Mounting Bracket for Standard-Size Servos.
This plastic mounting bracket is designed for use with standard-size servos like the Power HD AR-3606HB continuous rotation servo and the FEETECH FS5103B standard servo. By clasping around the servo and capturing its mounting tabs, this bracket provides an easy way to mount a servo on its side. The mounting holes on the bracket are intended for use with M3 or #4-40 screws (not included). This bracket works with most standard-size servos, including all the ones in this page’s related products list. Please note that the mounting tabs on some servos are too thick to fit in the bracket without modification, so we recommend comparing your servo’s dimensions to the bracket’s dimensions below.
Dimension diagram of the Mounting Bracket for Standard-Size Servos. Units are mm over [inches].
This diagram is also available as a downloadable PDF (245k pdf).
Weight: | 5.5 g |
Color: | black |
