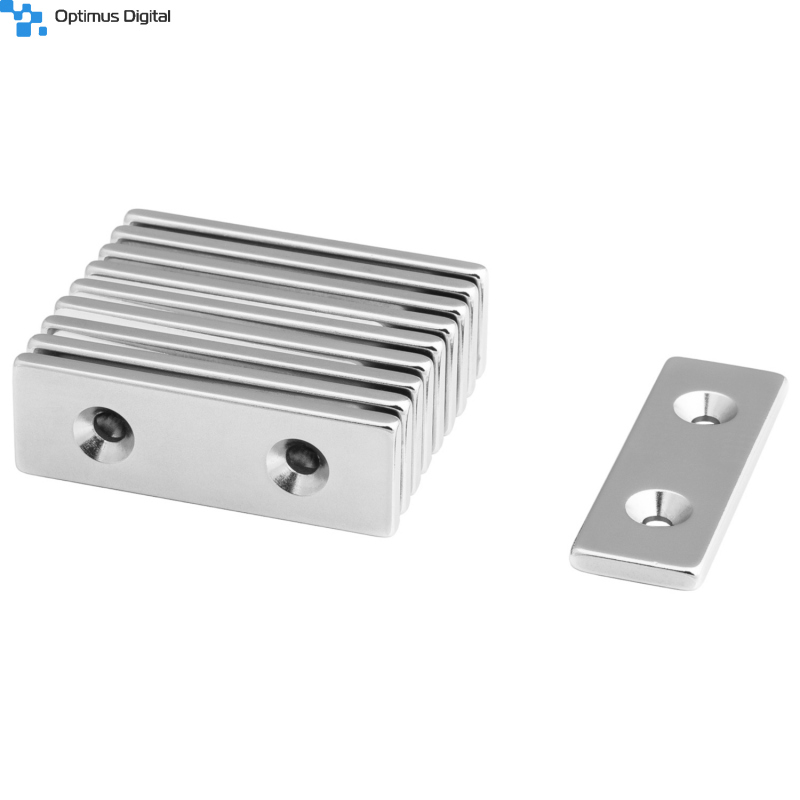

Block Magnet 60x20x4 with Countersunk Borehole
0104210000067866
New product
Block Magnet 60x20x4 with Countersunk Borehole
See description for more details about the product.
Add to cart now!
This product is no longer in stock
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Magnet parameters:
• length: 60 mm (±0.1 mm)
• width: 20 mm (±0.1 mm)
• height: 4 mm (±0.1 mm)
• countersink: 9 mm (±0.1 mm)
• borehole: 4.5 mm (±0.1 mm)
• phase angle: 90o
• material: Neodym NdFeB
• direction of magnetization: along the height
• maximum temperature: 80oC.
• coating: Ni + Cu + Ni
Magnetic properties of N38 material:
• remanence Br: 1.22-1.25 [T]; 12.2-12.5 [kGs]
• coercivity Hcb: ≥899 [kA/m]; ≥11.3[kOe]
• coercivity HcJ: ≥955 [kA/m]; ≥12 [kOe]
• energy density (BH) max: ≥287-310 [kJ/m3]; 36-39 [MGOe]
