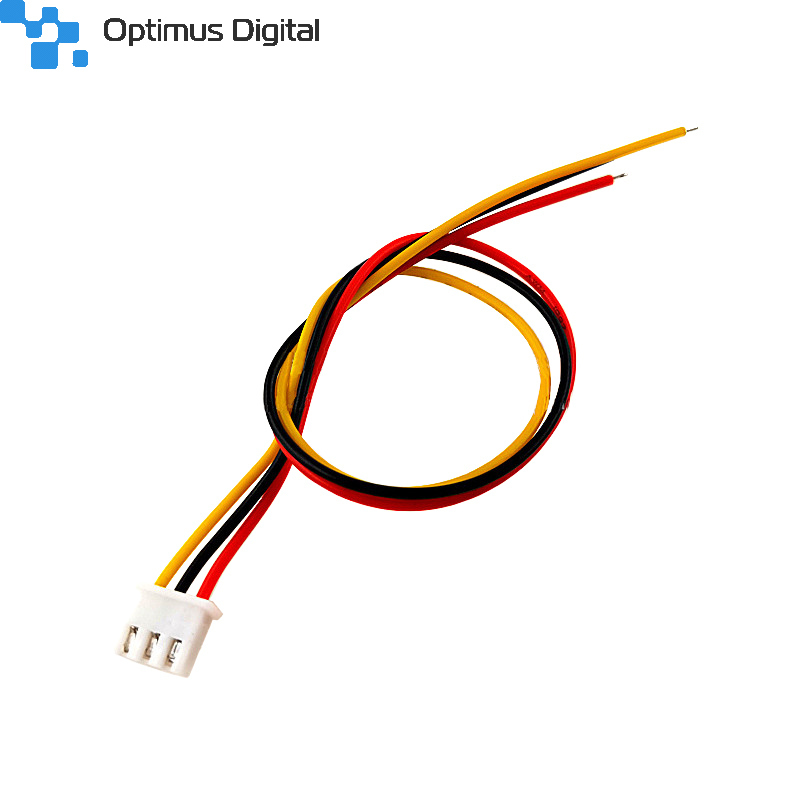

> >>3p XH2.54 Colored Single Head Cable (20 cm)
3p XH2.54 Colored Single Head Cable (20 cm) View larger
Previous Next

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

3p XH2.54 Colored Single Head Cable (20 cm)

0104110000059680

New product

3p XH2.54 Colored Single Head Cable (20 cm)


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$0.29
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Specifications

• Pitch: 2.5mm

• Poles: 2-16

• Usable wire range: AWG30 # -22 #

• Applicable printed board thickness: 0.8-1.6mm

• Voltage rating: 250V AC / DC

• Current rating: 3A AC / DC

• Working temperature: -25 ° C- + 85 ° C

• Withstand voltage: 1000V / min

• Contact resistance: <0.02O

• Insulation resistance:> 1000MO


Materials

Housing: Nylon 66

Pin header:

1. Water: Nylon 66

2. Pin: Brass

Terminal: Phosphor bronze


Poles Part No 2.5 mm Dimensions (mm)
A B C
2 YX-XH-2 2.5 7.5 1
3 YX-XH-3 5 10 3.5
4 YX-XH-4 7.5 12.5 6
5 YX-XH-5 10 15 8.5
6 YX-XH-6 12.5 17.5 11
7 YX-XH-7 15 20 13.5
8 YX-XH-8 17.5 22.5 16
9 YX-XH-9 20 25 18.5
10 YX-XH-10 22.5 27.5 21
11 YX-XH-11 25 30 23.56
12 YX-XH-12 27.5 32.5 26
13 YX-XH-13 30 35 28.5
14 YX-XH-14 32.5 37.5 31
15 YX-XH-15 35 4 33.5
16 YX-XH-16 37.5 42.5 36
