> >>8p 1.25 mm Single Head Cable (10 cm)

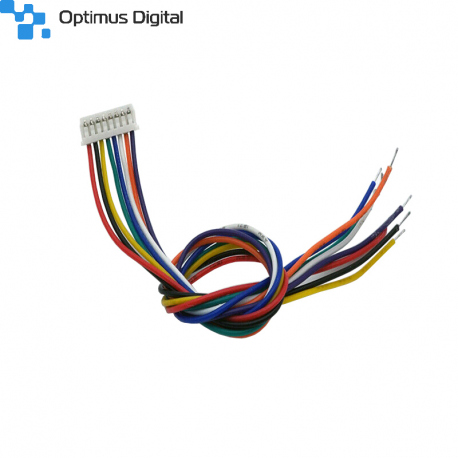

Sale! 8p 1.25 mm Single Head Cable (10 cm) View larger

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

8p 1.25 mm Single Head Cable (10 cm)

0104210000057485

New product

• 1.0 1571-28 line: Each copper wire 0.12 temperature 80 degrees pressure 300V.

• 1.25 1571-28 line 7 copper wire: Each copper wire 0.12 is resistant to temperature 80 degrees withstand voltage 300V.

• 1.5 7th copper wire of 1007-28.: Each copper wire 0.12 is resistant to temperature 105 degrees withstand voltage 600V.


See description for more details about the product.

Add to cart now!

More details

67 Items

$0.29
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Specifications

• 1.0 1571-28 line: Each copper wire 0.12 temperature 80 degrees pressure 300V.

• 1.25 1571-28 line 7 copper wire: Each copper wire 0.12 is resistant to temperature 80 degrees withstand voltage 300V.

• 1.5 7th copper wire of 1007-28.: Each copper wire 0.12 is resistant to temperature 105 degrees withstand voltage 600V.

• PH2.0 is 7 copper wires of line 1007-26: Each copper wire is 0.12, the outer diameter is 1.3, the temperature is 80 degrees, and the pressure is 300V.

• XH2.54 is 7 copper wires of line 1007-26: Each copper wire is 0.12, the outer diameter is 1.3, the temperature is 80 degrees, and the pressure is 300V.

• VH3.96 1015-22 No. 7 copper wire: Each copper wire is 0.12. Temperature resistance 105 degrees withstand voltage 600V.

• CH3.96 1015-22 No. 7 copper wire: Each copper wire is 0.12. Temperature resistance 105 degrees withstand voltage 600V.

• KF2510 1007-26 7 copper wires: Each copper wire is 0.12. Temperature resistant 80 degrees withstand voltage 300V.

• 5557 1007-18 7 copper wires: Each copper wire is 0.12. Temperature resistant 80 degrees withstand voltage 300V.


Serial Number Model Size
A B
2 1.25-2Y 1.25 4.25
3 1.25-3Y 2.50 5.50
4 1.25-4Y 3.75 6.75
5 1.25-5Y 5.00 8.00
6 1.25-6Y 6.25 9.25
7 1.25-7Y 7.5 10.50
8 1.25-8Y 8.75 11.75
9 1.25-9Y 10.50 13.00
10 1.25-10Y 11.25 14.25
11 1.25-11Y 12.50 15.50
12 1.25-12Y 13.75 16.75
13 1.25-13Y 15.00 18.00
14 1.25-14Y 16.25 19.25
15 1.25-15Y 17.50 20.50
16 1.25-16Y 18.75 21.75

Serial Number Model Size
A B
2 1.25-2A 1.25 4.40
3 1.25-3A 2.50 5.65
4 1.25-4A 3.75 6.90
5 1.25-5A 5.00 8.15
6 1.25-6A 6.25 9.40
7 1.25-7A 7.5 10.65
8 1.25-8A 8.75 11.90
9 1.25-9A 10.50 13.15
10 1.25-10A 11.25 14.40
11 1.25-11A 12.50 15.65
12 1.25-12A 13.75 16.90
13 1.25-13A 15.00 18.15
14 1.25-14A 16.25 19.40
15 1.25-15A 17.50 20.60
16 1.25-16A 18.75 21.85

Serial Number Model Size
A B
2 1.25-2AW 1.25 4.40
3 1.25-3AW 2.50 5.65
4 1.25-4AW 3.75 6.90
5 1.25-5AW 5.00 8.15
6 1.25-6AW 6.25 9.40
7 1.25-7AW 7.5 10.65
8 1.25-8AW 8.75 11.90
9 1.25-9AW 10.50 13.15
10 1.25-10AW 11.25 14.40
11 1.25-11AW 12.50 15.65
12 1.25-12AW 13.75 16.90
13 1.25-13AW 15.00 18.15
14 1.25-14AW 16.25 19.40
15 1.25-15AW 17.50 20.65
16 1.25-16AW 18.75 21.85
