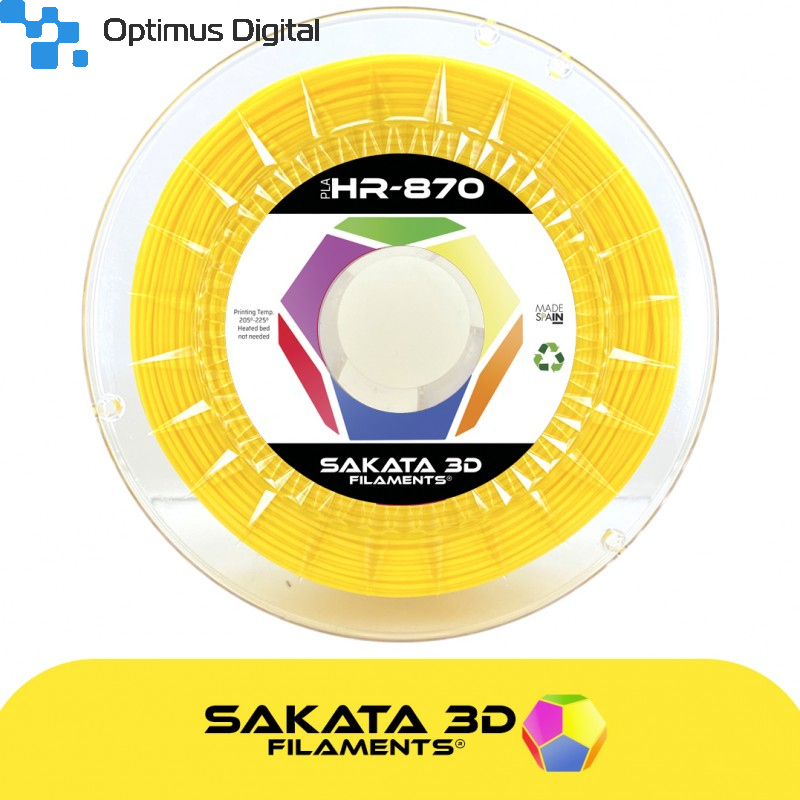

PLA Ingeo 3D870 Yellow 1.75 mm 1 kg View larger
Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

Sakata 3D Ingeo 3D870 HR PLA Filament - Yellow 1.75 mm 1 kg

0104110000080899

New product

Ingeo 3D870 is a grade developed for manufacturing 3D printer monofilament. Engineered to deliver improved heat-resistance and high impact strength to 3D printed parts, this formulated grade achieves thermal and mechanical properties similar to ABS while offering an alternative to styrenic-based materials.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$24.00
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

NatureWorks introduced its IngeoTM 3D870, and "Sakata 3D Filaments" didn’t hesitate to count on them to manufacture their filaments after due testing and presentation to various printer manufacturers, who have praised the product for its potential in printing. The final conclusion is that there are currently no other materials which provide this superior filament processing, ease of printing and performance characteristics of the printed pieces.

Quality filament ensures reliable printing and predictable performance. NatureWorks developed Ingeo 3D870 to meet the growing demand by industrial companies for a material that combines the properties of ABS and the printability of Ingeo PLA.

Ingeo 3D870 complies with chemical inventory listings in key markets in North America, Asia, and Europe, which expands sales opportunities for filament manufacturers. Parts produced with the formulation exceed ABS 3D parts in impact strength and, with post-print annealing, rivals ABS heat resistance.

Ingeo General Purpose PLA is good for many applications including 3D printing, but 3D850 and 3D870 have been designed specifically for 3D printing. Building on reliable, easy printability, these two grades offer good UV color lightfastness, low yellow index, and can be crystallized to realize additional heat and impact properties. 3D870 specifically was designed for impact strength that’s required in industrial applications.


Engineered to deliver improved heat resistance and high impact strength to 3D printed parts, this formulated grade achieves thermal and mechanical properties similar to ABS while offering an alternative to styrene-based materials.

Filament SpecificationsValueUnit
Max. roundness deviation 0.05 mm
Net weight 1,000 g

3D Printing Monofilament - High Heat and Impact Grade

Monofilament Applications

Ingeo 3D870 is a grade developed for manufacturing 3D printer monofilament. Engineered to deliver improved heat-resistance and high impact strength to 3D printed parts, this formulated grade achieves thermal and mechanical properties similar to ABS while offering an alternative to styrene-based materials.

Monofilaments made with Ingeo 3D870 provide excellent 3D printing characteristics such as precise detail, good adhesion to build plates, less warping or curling, and low odor.

Physical PropertiesStandardValueUnit
Specific gravity ASTM D792 g/cm3 1.22
Mechanical PropertiesStandardValueUnit
Tensile strength ASTM D638 40 MPa
Tensile modulus    ASTM D638 2,865 MPa
Flexural strength    ASTM D790 73 MPa
Flexural modulus   ASTM D790  2,414 MPa
Notched Izod impact  ASTM D256  233 J/m

Print SettingsValueUnit
Nozzle temp. 205-225 oC
Bed temp. Not needed (50-70 optional) oC
Bed modification -- -
Fan speed 100 %
Layer height 0.1-0.3 mm
Shell thickness 1.2 mm
Print speed Up to 120 mm/s
Annealing temperature 110-120 oC
