Sale! ABS-E NATURAL 1,75 mm 1 Kg View larger
Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

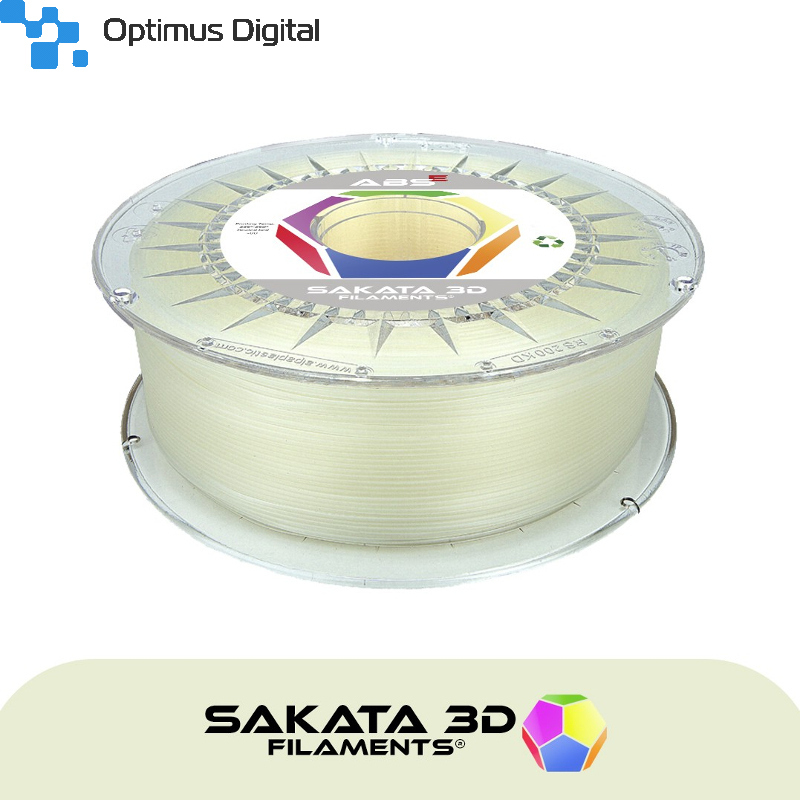

ABS-E Natural 1.75 mm 1 kg

8000000701015

New product

ABS filament. Manufactured in Spain and highly impact-resistant.

Recommended temperature: 220º-245ºC.

Diameter variability: +/- 0.03mm.

Compatible with all FDM printers.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$28.56
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

ABS is a copolymerization of styrene, acrylonitrile, and butadiene latex. Its heat and solvent resistance properties are better than HIPS and it has gloss characteristics. Because acrylonitrile has stronger nitrile polarity, it can enhance the interaction of the PS in the molecular chain. Therefore, its impact strength, tensile strength, and plastic surface hardness are better compared to those of HIPS.

Generally, the higher the content proportion of acrylonitrile, the better the heat resistance, rigidity, and solvent resistance properties; but the fluidity is worse and the plastic contains a yellow colour. During injection mode, it has very good mechanical property and dimensional stability. Based on these advantages, the ABS resin has become an excellent engineering plastic.

Our ABS-E, based on the PA-747R from CHIMEI, is easier to print, less prone to warping and cracking and with improved impact resistance and material stress. Thanks to the experience gained in the creation of materials and the close collaboration with manufacturers of 3D printers and makers around the world, CHIMEY has achieved an ABS capable to withstand higher speeds and better adhesion accuracy between layers.


General ABS POLYLAC® Characteristics PA-757

PROPERTIES ASTM
TEST METHOD
TEST CONDITION UNIT GENERAL
PA-757
Melt Flow Index D1238 200 ℃, 5 Kg g/10 min 1.6
220 ℃, 10 Kg -
Mass Density D792 23 ℃ - 1.05
Hardness  D785 - R Scale 116
Tensile Strength (Yield) D638 6 mm/min Kg/cm2 470
lb/in2 6660
Tensile Elongation D638 6 mm/min % 25
Flexural Strength D790 2.8 mm/min Kg/cm2 790
lb/in2 11660
Flexural Modulus D790 2.8 mm/min 104
Kg/cm2
2.7
105
lb/in2
3.8
Izod Impact Strength
D256 (Notched)
6.4 mm, 23℃ Kg-cm/cm 20
ft-lb/in 3.7
3.2 mm, 23℃ Kg-cm/cm 21
ft-lb/in 3.9
Vicat Softening Temp D1525 1 Kg,50 ℃/hr 105
221
Heat Distortion Temp. D648 1.8 MPa Annealed  95
203
1.8 MPa
Unannealed
85
186
UL Flammability UL 94 - - 1.5 mm HB
