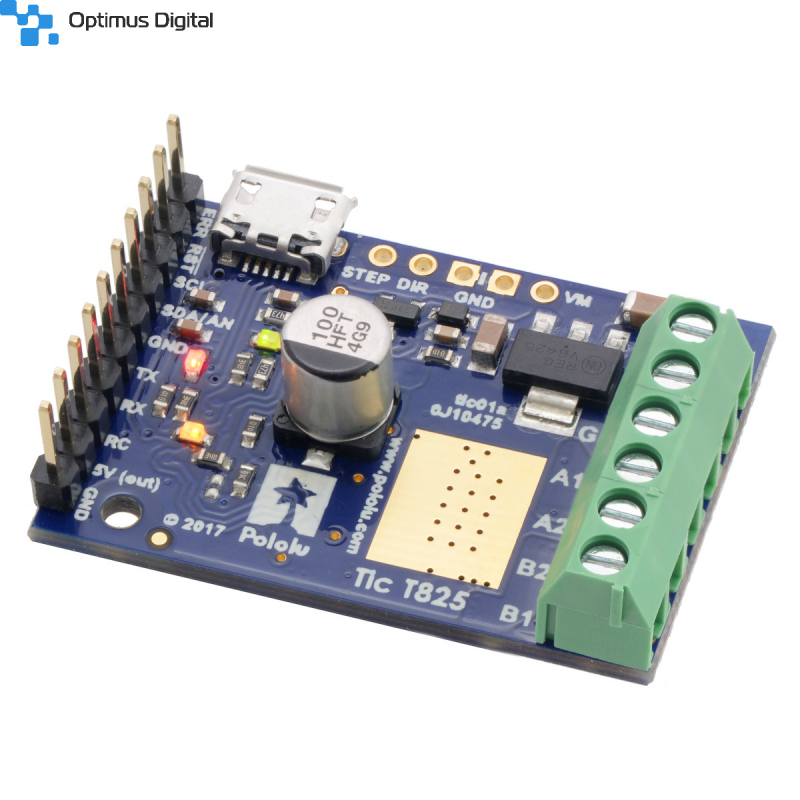

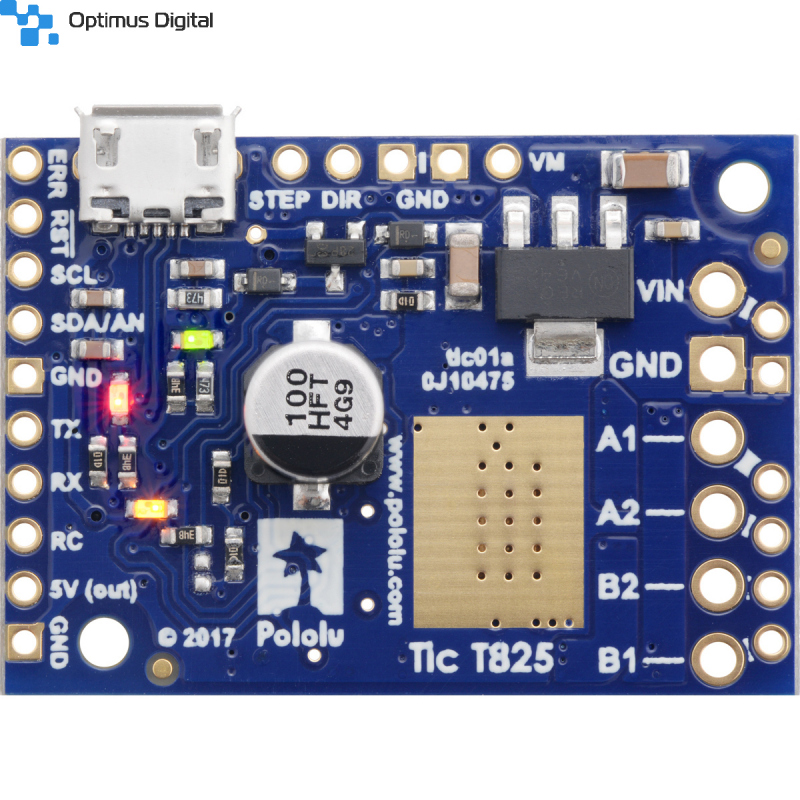

Tic T825 USB Multi-Interface Stepper Motor Controller

0104110000035950

New product

The Tic T825 USB Multi-Interface Stepper Motor Controller makes basic control of a stepper motor easy, with quick configuration over USB using our free software. The controller supports six control interfaces: USB, TTL serial, I2C, analog voltage (potentiometer), quadrature encoder, and hobby radio control (RC). This version incorporates a TI DRV8825 driver, and male headers and terminal blocks are included but not soldered. It can operate from 8.5 V to 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (or 2.5 A max with sufficient additional cooling).


See description for more details about the product.

Add to cart now!

More details

1 Item

Warning: Last items in stock!

$90.48
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Overview

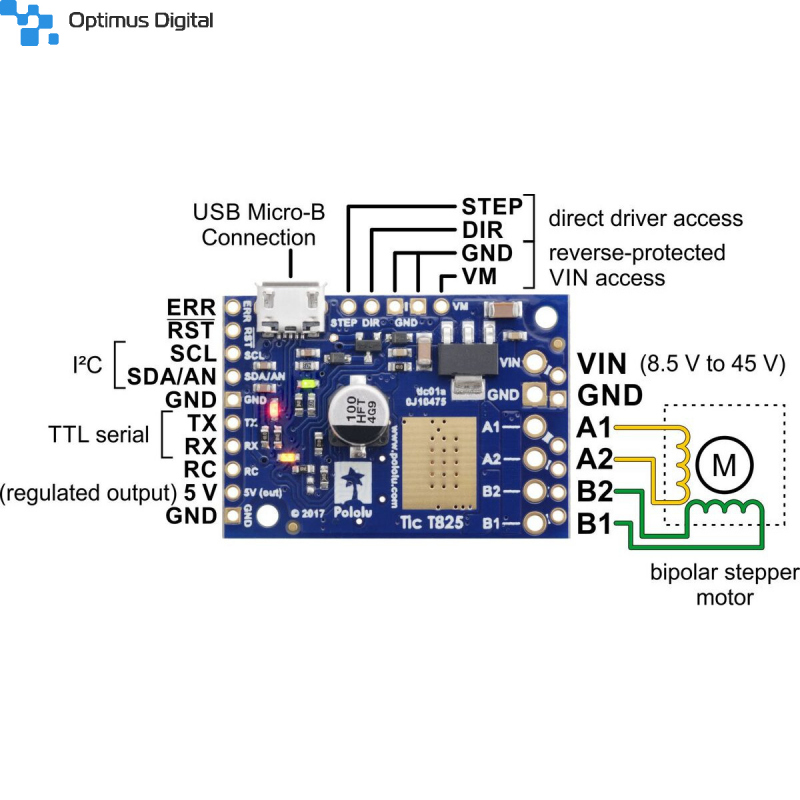

The Tic family of stepper motor controllers makes it easy to add basic control of a bipolar stepper motor to a variety of projects. These versatile, general-purpose modules support six different control interfaces: USB for direct connection to a computer, TTL serial and I²C for use with a microcontroller, RC hobby servo pulses for use in an RC system, analog voltages for use with a potentiometer or analog joystick, and quadrature encoder for use with a rotary encoder dial. They also offer many settings that can be configured using our free configuration utility (for Windows, Linux, and macOS). This software simplifies initial setup of the device and allows for in-system testing and monitoring of the controller via USB (a micro-B USB cable is required to connect the Tic to a computer).

The table below lists the members of the Tic family and shows the key differences among them.

Tic T500

Tic T834

Tic T825

Tic T249

Tic 36v4
Operating voltage range: 4.5 V to 35 V(1) 2.5 V to 10.8 V 8.5 V to 45 V(1) 10 V to 47 V(1) 8 V to 50 V(1)
Max continuous current per phase
(no additional cooling):		 1.5 A 1.5 A 1.5 A 1.8 A 4 A
Peak current per phase
(additional cooling required):		 2.5 A 2 A 2.5 A 4.5 A 6 A
Microstep resolutions: full
half
1/4
1/8		 full
half
1/4
1/8
1/16
1/32		 full
half
1/4
1/8
1/16
1/32		 full
half
1/4
1/8
1/16
1/32		 full
half
1/4
1/8
1/16
1/32
1/64
1/128
1/256
Automatic decay selection:
Automatic gain control (AGC):
Driver IC: MP6500 DRV8834 DRV8825 TB67S249FTG discrete MOSFETs

1 See product pages and user’s guide for operating voltage limitations.


Features and specifications

• Open-loop speed or position control of one bipolar stepper motor

• A variety of control interfaces:

○ USB for direct connection to a computer

○ TTL serial operating at 5 V for use with a microcontroller

○ I2C for use with a microcontroller

○ RC hobby servo pulses for use in an RC system

○ Analog voltage for use with a potentiometer or analog joystick

○ Quadrature encoder input for use with a rotary encoder dial, allowing full rotation without limits (not for position feedback)

○ STEP/DIR inputs for compatibility with existing stepper motor control firmware

• Acceleration and deceleration limiting

• Maximum stepper speed: 50,000 steps per second

• Very slow speeds down to 1 step every 200 seconds (or 1 step every 1428 seconds with reduced resolution).

• Selectable microstep modes up to 1/256-step resolution:

○ The Tic 36v4 supports full-step to 1/256-step modes

○ The Tic T825, Tic T834, and T249 support full-step to 1/32-step modes

○ The Tic T500 supports full-step to 1/8-step modes

• Digitally adjustable current limit

• Optional safety controls to avoid unexpectedly powering the motor

• Input calibration (learning) and adjustable scaling degree for analog and RC signals

• 5 V regulator (no external logic voltage supply needed)

• Optional limit switch inputs with homing capabilities

• Optional kill switch inputs

• STEP/DIR outputs for controlling external stepper motor drivers

• Connects to a computer through USB via a USB A to Micro-B cable (not included)

• Free configuration software available for Windows, Linux, and macOS

• Arduino library makes it easy to get started using these controllers with an Arduino or compatible board

• Comprehensive user’s guide


Details


Tic T500 USB Multi-Interface Stepper Motor Controller, bottom view with dimensions.


Tic T834 USB Multi-Interface Stepper Motor Controller, bottom view with dimensions.

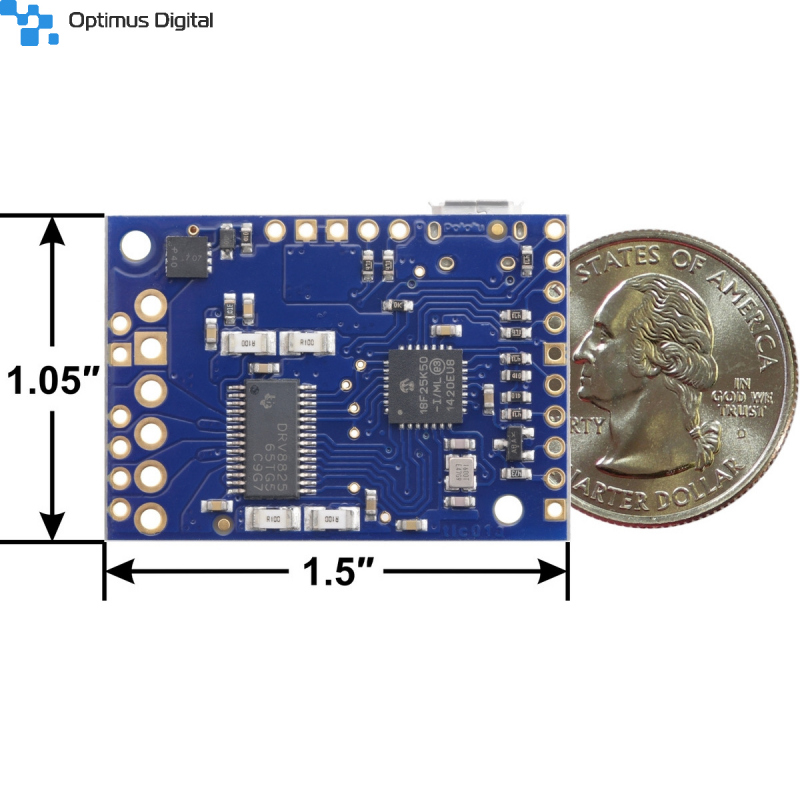

Tic T825 USB Multi-Interface Stepper Motor Controller, bottom view with dimensions.


Tic T249 USB Multi-Interface Stepper Motor Controller, bottom view with dimensions.


Tic 36v4 USB Multi-Interface High-Power Stepper Motor Controller, bottom view with dimensions.

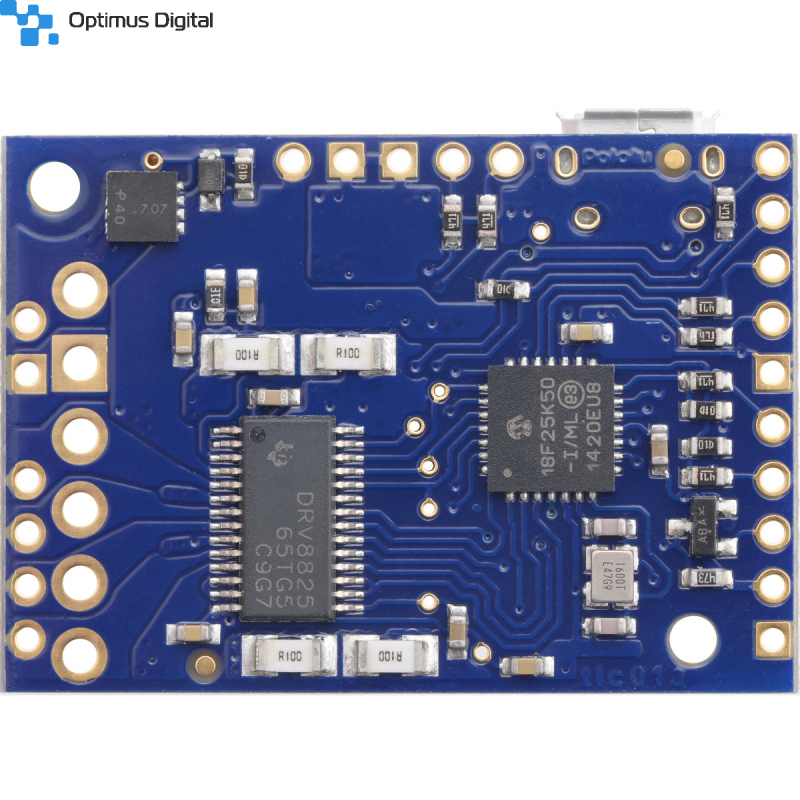

The Tic T825 is based on the DRV8825 IC from Texas Instruments. It can operate from 8.5 V to 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (absolute maximum is 2.5 A per phase). It has reverse protection for motor power supplies up to 40 V. This version is sold unassembled so soldering is necessary to use it.

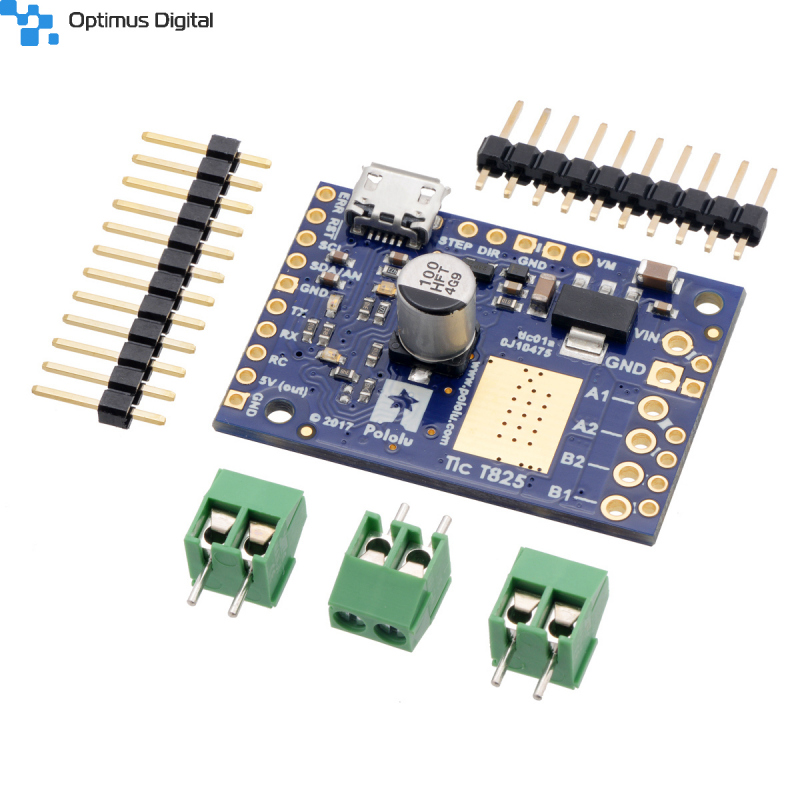

Tic T825 USB Multi-Interface Stepper Motor Controller (without connectors soldered) with included headers and terminal blocks.


Specifications

Dimensions

Size: 1.50" x 1.05" x 0.42"1
Weight: 5.1 g1


General specifications

Model: Tic T825
Motor driver: DRV8825
Control interface: USB; non-inverted TTL serial; I2C;
RC servo pulses; analog voltage; quadrature encoder
Minimum operating voltage: 8.5 V
Maximum operating voltage: 45 V2
Continuous current per phase: 1.5 A3
Maximum current per phase: 2.5 A4
Maximum step rate: 50000 PPS
Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32
Reverse voltage protection?: Y5
Connectors soldered?: N


Notes:

1 Without included optional hardware.
2 Reverse voltage protection only works up to 40 V.
3 Without a heat sink or forced air flow.
4 With sufficient additional cooling.
5 To -40 V. Connecting supplies over 40 V in reverse can damage the device.
