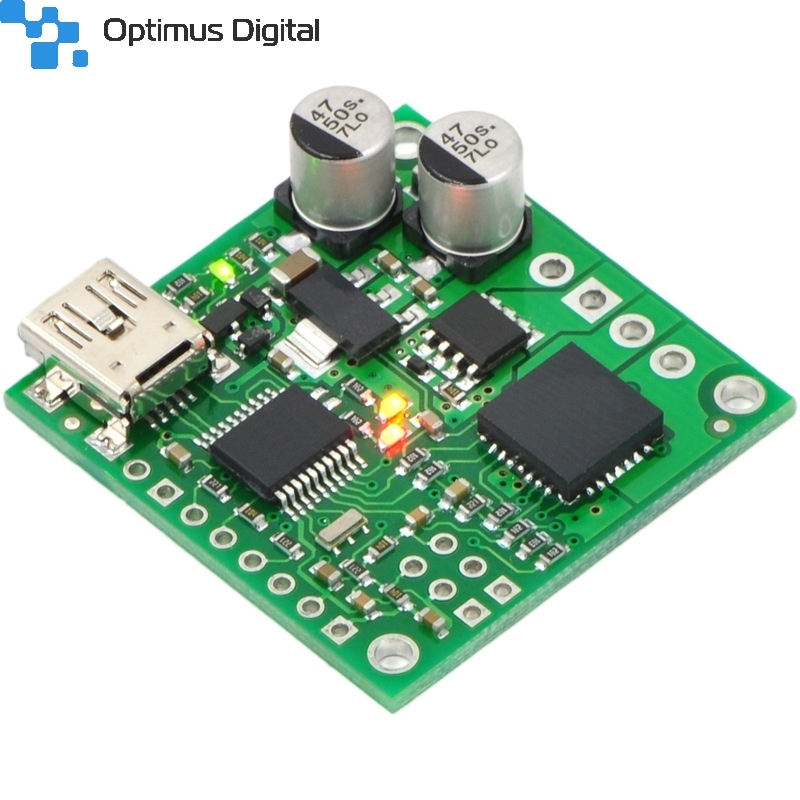

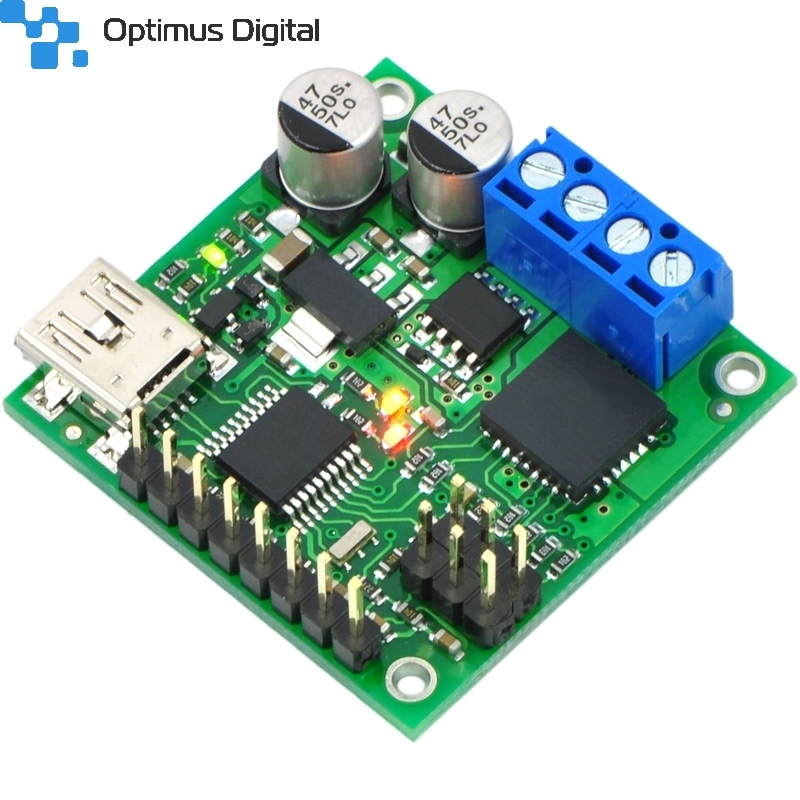

Pololu Driver Jrk 21v3 USB with Feedback
0104110000027047
New product
The Jrk 21v3 motor controller is a highly configurable brushed DC motor controller that supports four interface modes: USB, logic-level serial, analog voltage, and hobby radio control (RC). The controller can be used with feedback for closed-loop speed or position control, or it can be used without feedback as an open-loop speed control. The continuous output current is approximately 3 A in the recommended operating range of 8 V to 28 V, with derated performance down to 5 V and transient protection to 40 V.
See description for more details about the product.
Add to cart now!
1 Item
Warning: Last items in stock!
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Overview

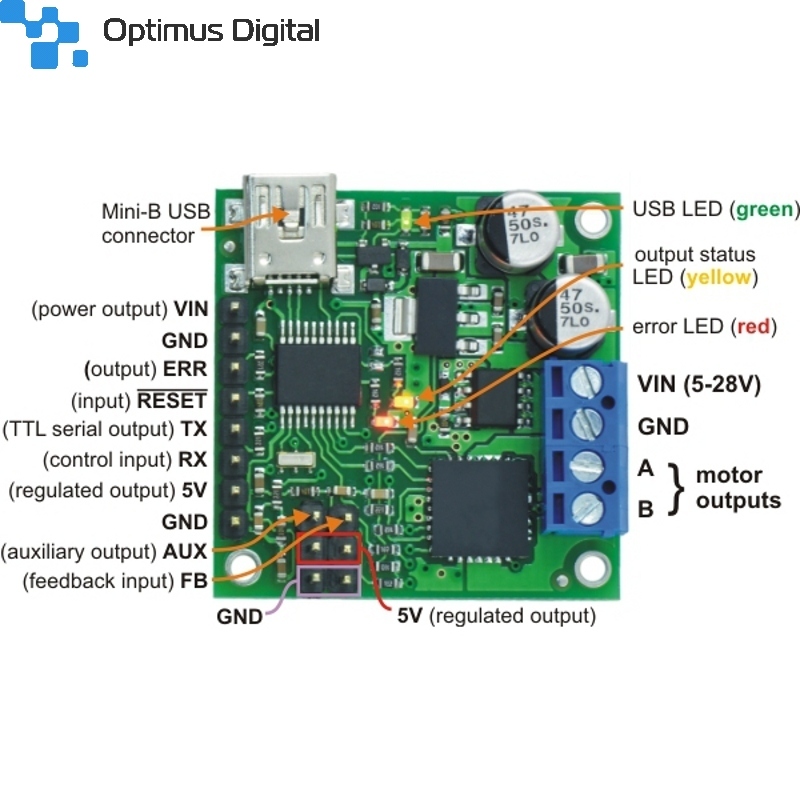

The Jrk 21v3 is a versatile, general-purpose motor controller that supports a variety of interfaces, including USB. The broad operating range from 5 V to 28 V and continuous output current of 3 A (5 A peak) allow this board to control most small DC brushed motors. Analog voltage and tachometer (frequency) feedback options allow quick implementation of closed-loop servo systems, and a free configuration utility (for Windows) allows easy calibration and configuration through the USB port. A USB A to mini-B cable (not included) is required to connect this controller to a computer.
Key improvements over competing products and earlier Pololu motor controllers with feedback include:
• USB connectivity with emulated serial (COM) port allows direct motor control from a PC.
• Ultrasonic PWM to eliminate switching-induced motor shaft hum or whine.
• Robust, high-speed communication protocol with user-configurable error condition response.
• High internal resolution (12 bits) for smooth and flexible calibration to various input and feedback devices.
• Current sensing and limiting.
• Reversed power protection.
• Field-upgradeable firmware.
Main Features of the Jrk 21v3
• Simple bidirectional control of one DC brush motor.
• 5 V to 28 V operating supply range.
• 3 A maximum continuous current output (5 A peak).
• Four communication or control options:
1. USB interface for direct connection to a PC.
2. Full-duplex, TTL-level asynchronous serial interface for direct connection to microcontrollers or other embedded controllers.
3. Hobby radio control (RC) pulse width interface for direct connection to an RC receiver or RC servo controller.
4. 0 V to 5 V analog voltage interface for direct connection to potentiometers and analog joysticks.

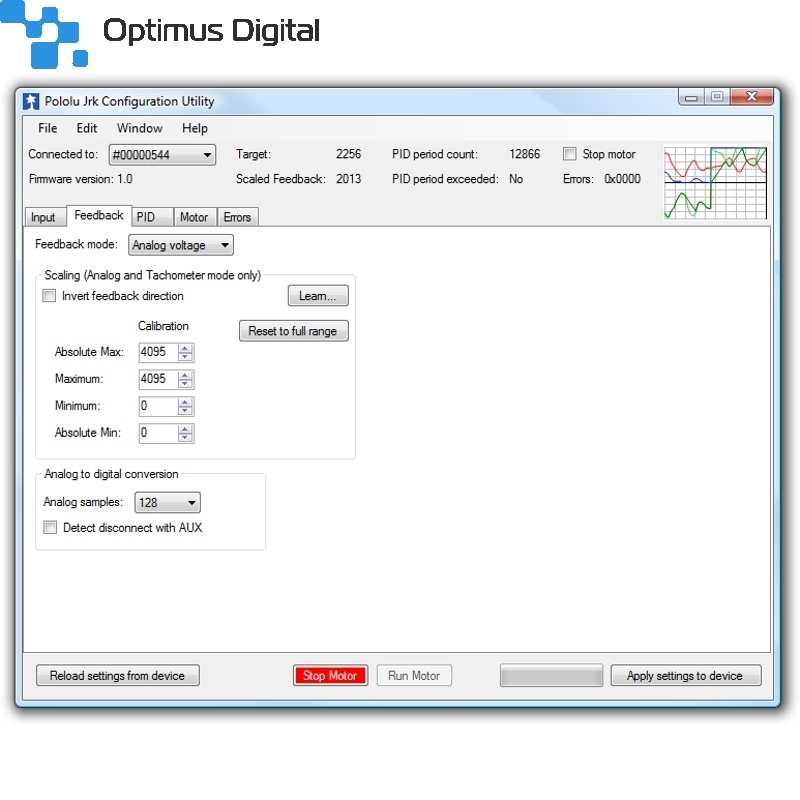

• Two closed-loop feedback options:
1. 0 V to 5 V analog voltage.
2. Frequency/tachometer digital input up to 2 MHz with 1 ms PID period. (Open-loop control with no feedback also available.)

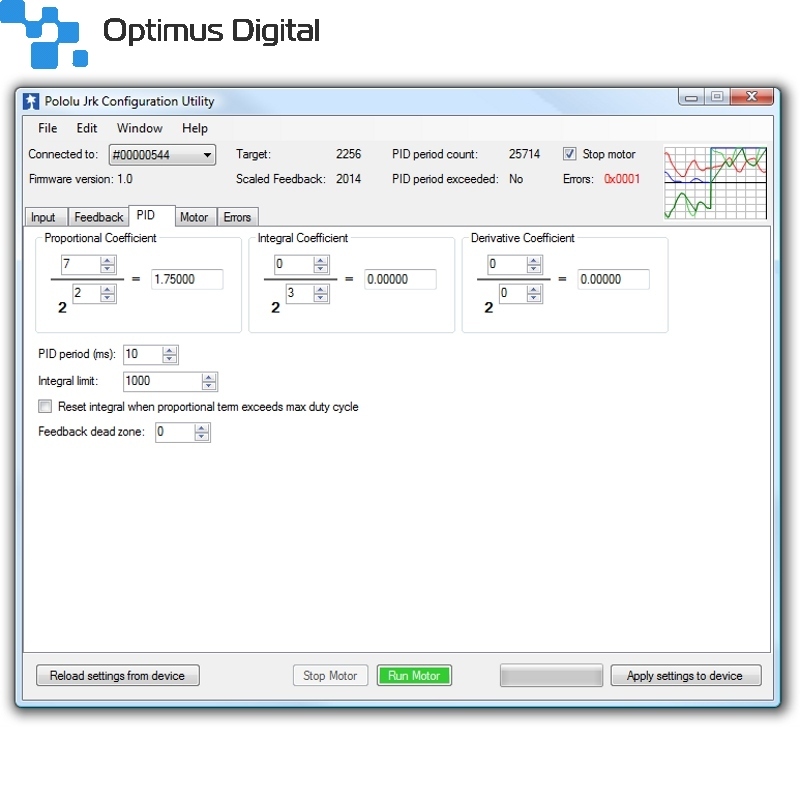

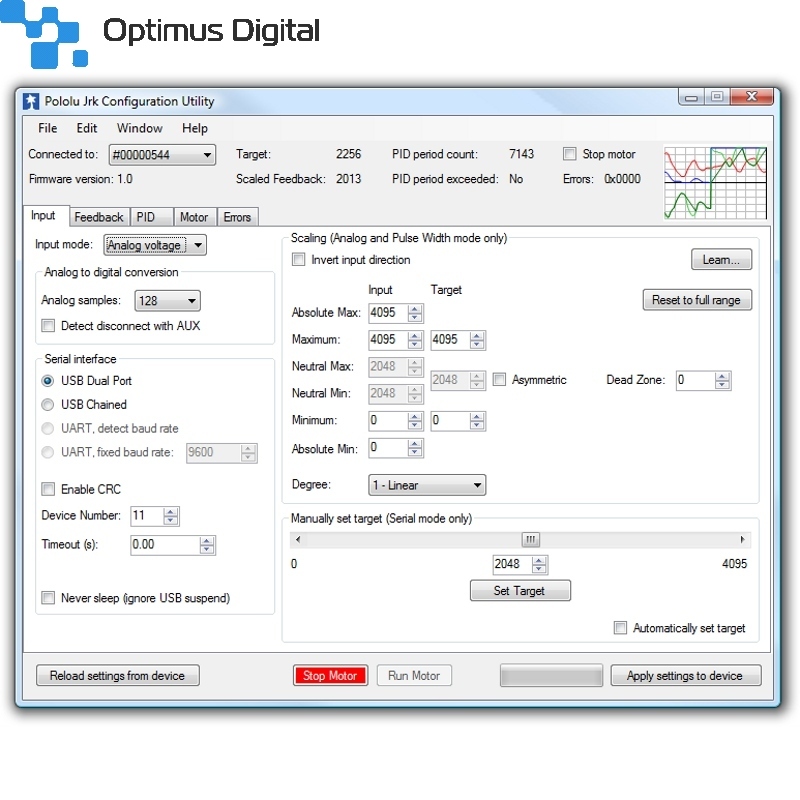

• Simple configuration and calibration over USB with free configuration program for Windows.

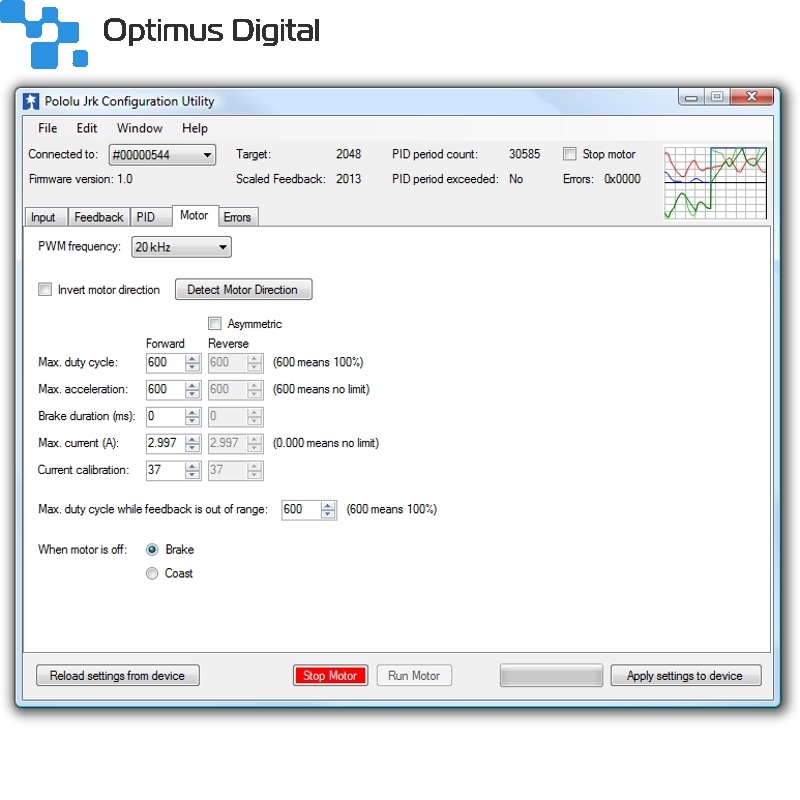

• Configurable parameters include:

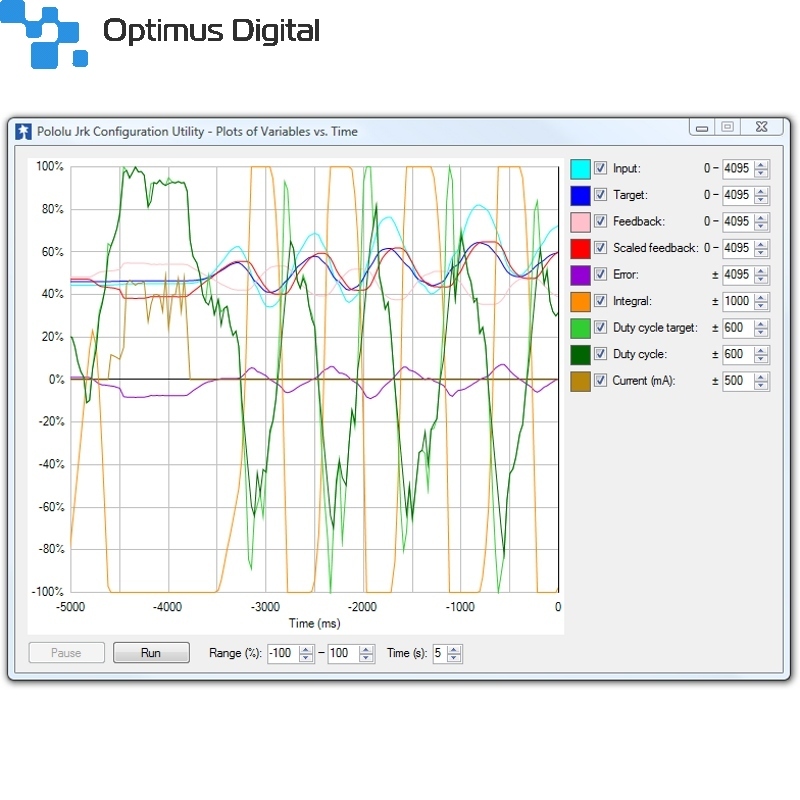

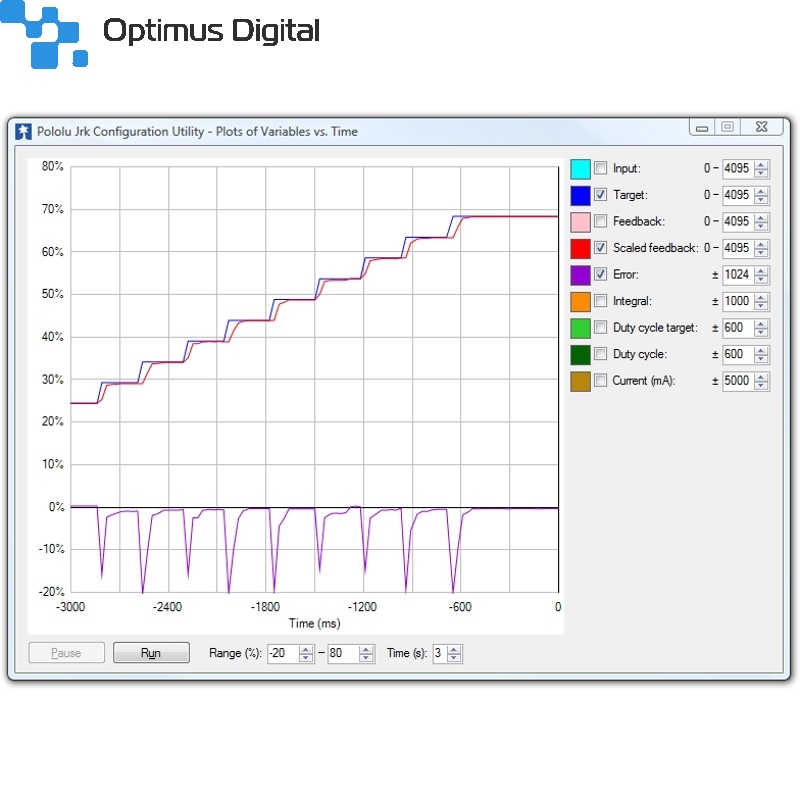

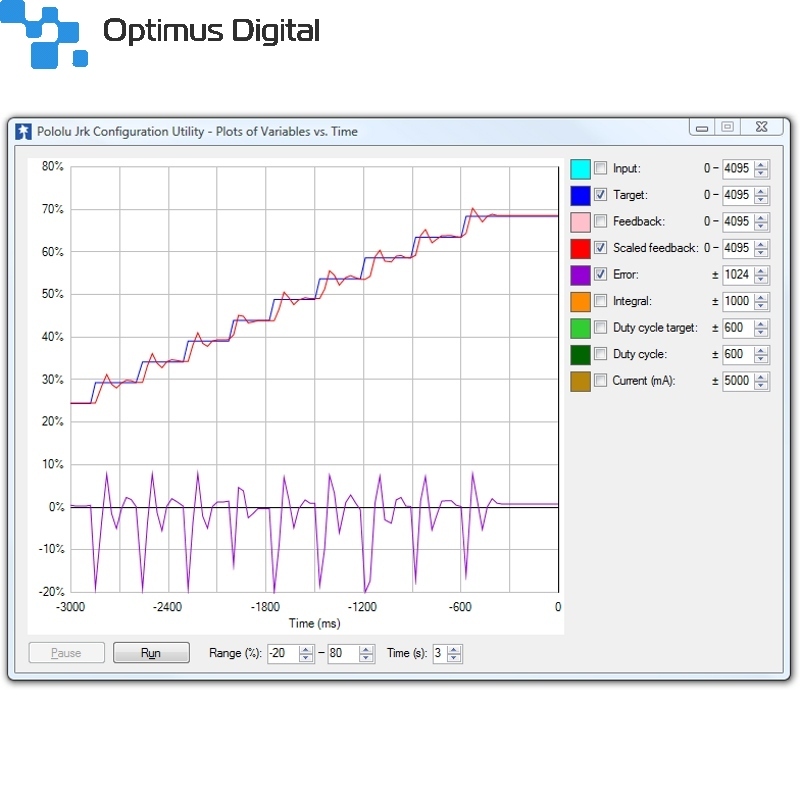

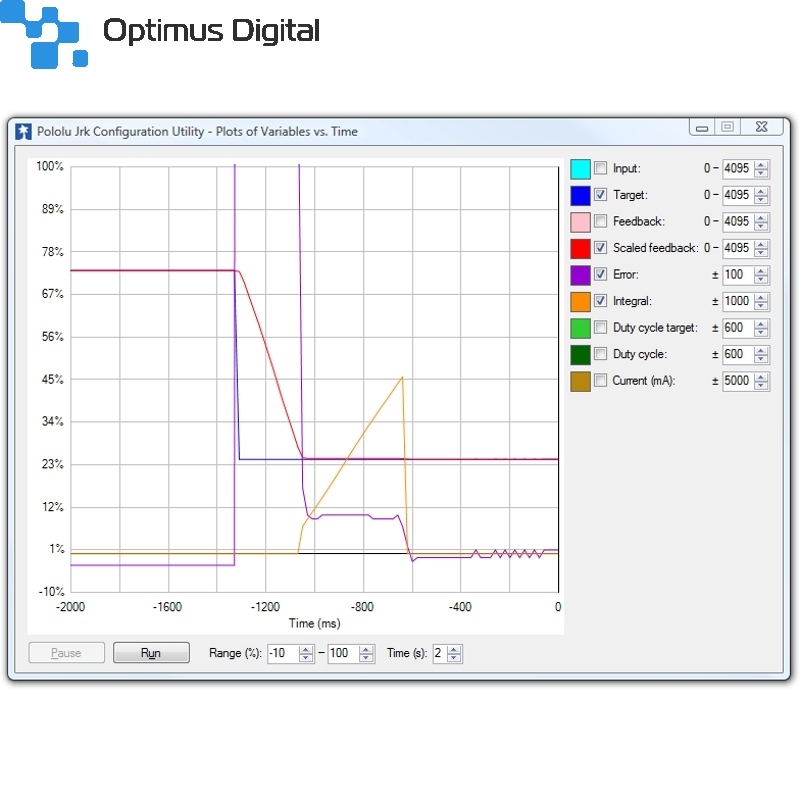

○ PID period and PID constants (feedback tuning parameters).
○ Maximum current.
○ Maximum duty cycle.
○ Maximum acceleration.

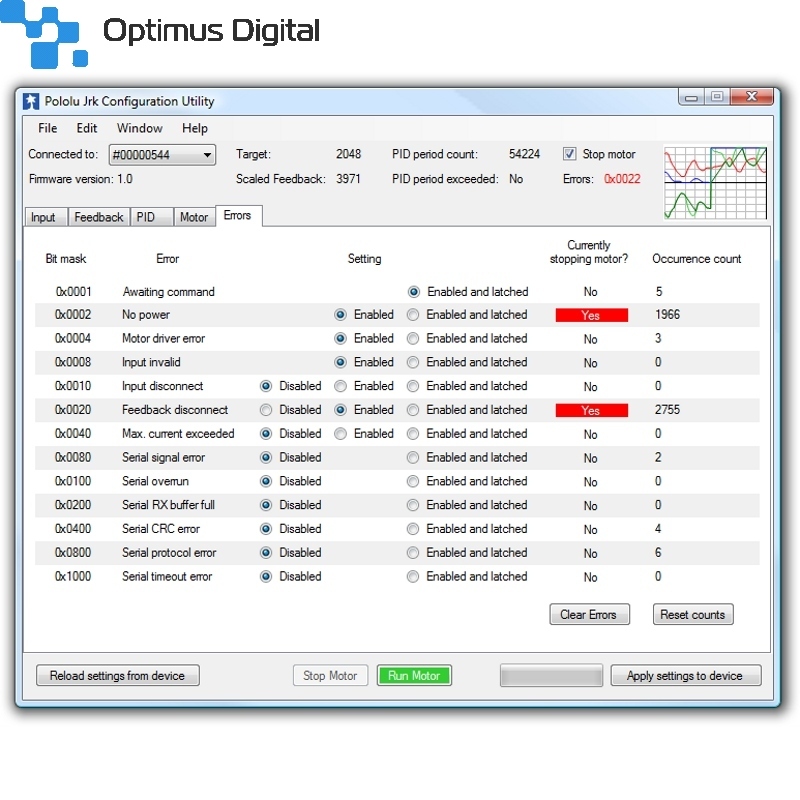

○ Error response.
○ Input calibration (learning) for analog and RC control.
• Optional CRC error detection eliminates communication errors caused by noise or software faults.
• Reversed power protection.
• Field-upgradeable firmware.
• Optional feedback potentiometer disconnect detection.
• Comprehensive user’s guide.
Specifications
| Motor channels: | 1 |
| Operating voltage: | 5 V to 28 V |
| Continuous output current: | 3 A |
| Peak output current: | 5 A |
| Auto-detect baud rate range: | 300 bps to 115,200 bps |
| Available fixed baud rates: | 300 bps to 115,200 bps |
| Available PWM frequencies: | 20 kHz, 5 kHz |
| Reverse voltage protection?: | Yes |
| USB connector style: | USB Mini-B |
The Jrk 21v3 is the smaller of two Jrk motor controllers. For a higher-power version, see the Jrk 12v12.

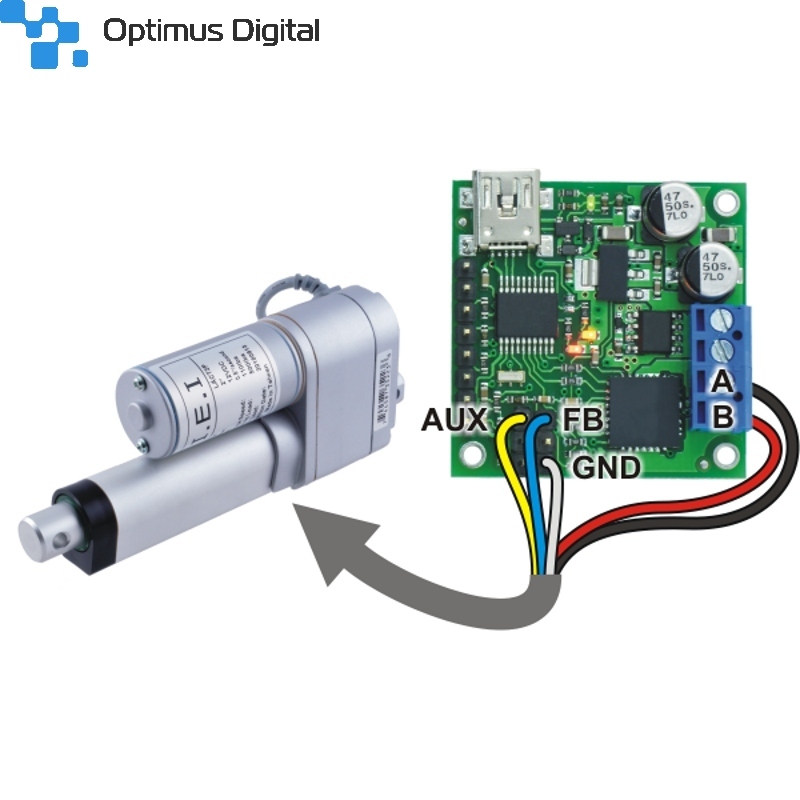

Example Feedback System – 4 Methods of Control
USB control.
TTL serial control.
RC / pulse width control.
Analog control.

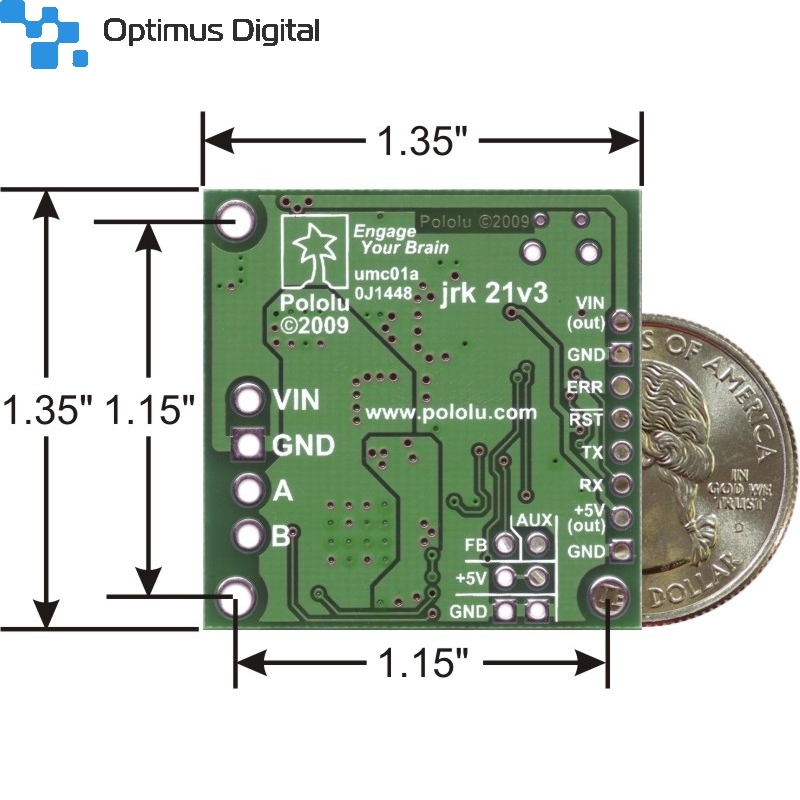

Dimensions
| Size: | 1.35" x 1.35" x 0.4"1 |
| Weight: | 0.23 oz |
General specifications

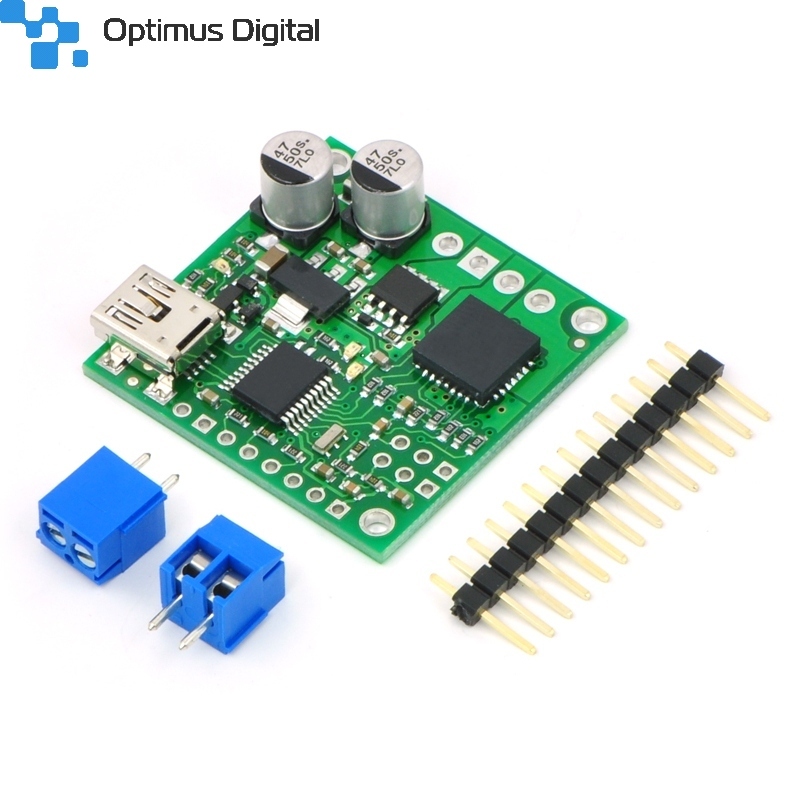

| Motor driver: | MC33926 |
| Motor channels: | 1 |
| Control interface: | USB; non-inverted TTL serial; RC servo pulses; analog voltage2 |
| Minimum operating voltage: | 5 V |
| Maximum operating voltage: | 28 V |
| Continuous output current per channel: | 3 A |
| Peak output current per channel: | 5 A |
| Current sense: | 0.5 V/A3 |
| Maximum PWM frequency: | 20 kHz |
| Minimum logic voltage: | 4 V4 |
| Maximum logic voltage: | 5 V |
| Reverse voltage protection?: | Y |
| Partial kit?: | Y |
| Version: | original 21v3 (28 V max, 3 A max continuous) |
Notes:
1 Without included hardware.
2 Autodetects baud rates between 300 and 115,200 bps, or can be set to any fixed baud rate in this range.
3 Current readings are converted to a digital number from 0-255.
4 In RC mode, the pulses can be as low as 2V.
