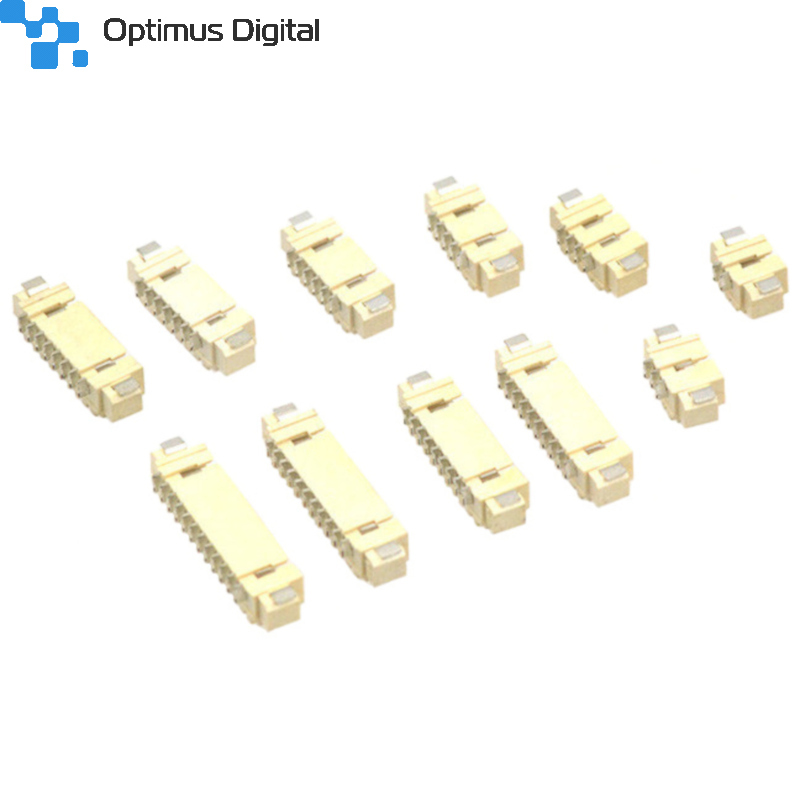

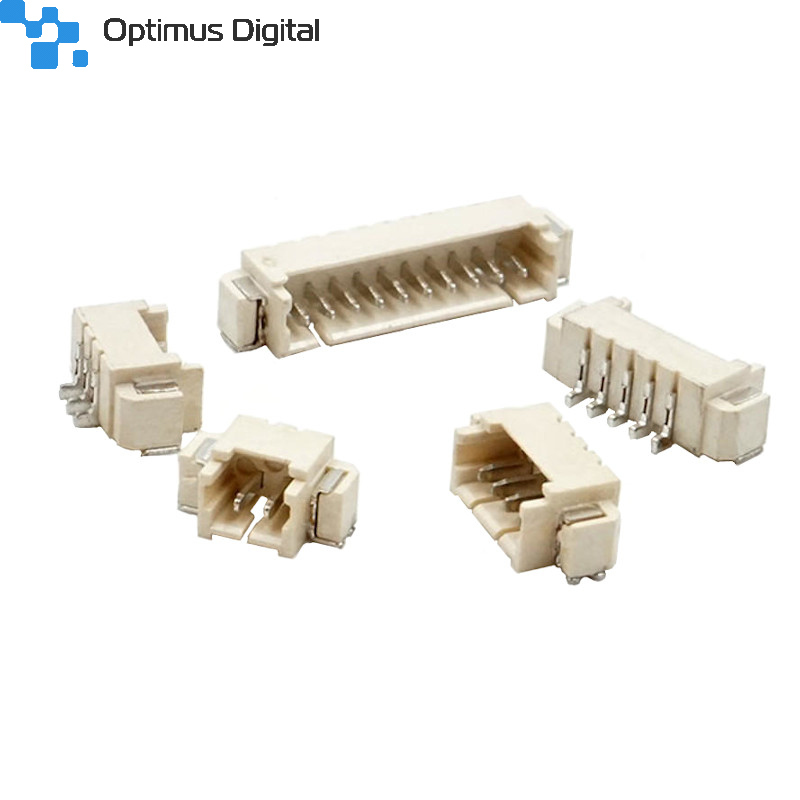

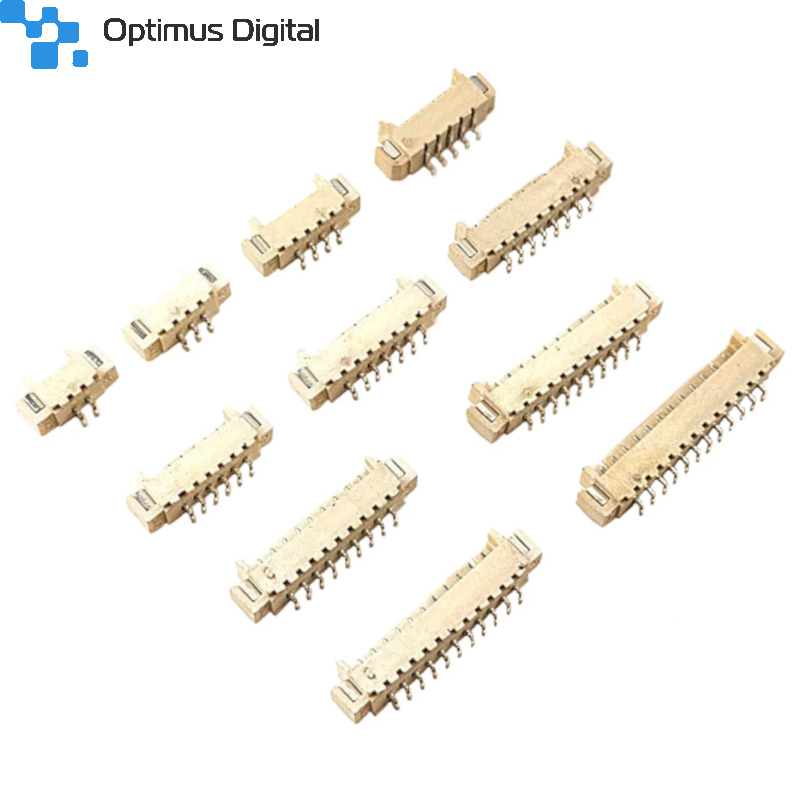

Sale! 7p 1.25 mm Horizontal Connector View larger

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

7p 1.25 mm Horizontal Connector

0104210000058628

New product

7p 1.25 mm Horizontal Connector


See description for more details about the product.

Add to cart now!

More details

474 Items

$0.17
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Schematic Diagram


Poles A B C
2 7.4 4.5 1.25
3 8.65 5.75 2.5
4 9.9 7 3.75
5 11.15 8.25 5
6 12.4 9.5 6.25
7 13.65 10.75 7.5
8 14.9 12 8.75
9 16.15 13.25 10
10 17.4 14.5 11.25
11 18.65 15.75 12.5
12 19.9 17 13.75
13 21.15 18.25 15
14 22.4 19.5 16.25
15 23.65 20.75 17.5
16 24.9 22 18.75
17 26.15 23.25 20
18 27.4 24.5 21.25
19 28.65 25.75 22.5
20 29.9 27 23.75


A B C E
2 1.25 7.25 7.50 3.05
3 2.50 8.50 8.75 4.30
4 3.75 9.75 10.00 5.55
5 5.00 11.00 11.25 6.80
6 6.25 12.25 12.50 8.05
7 7.50 13.50 13.75 9.30
8 8.75 14.75 15.00 10.55
9 10.00 16.00 16.25 11.80
10 11.25 17.25 17.50 13.05
