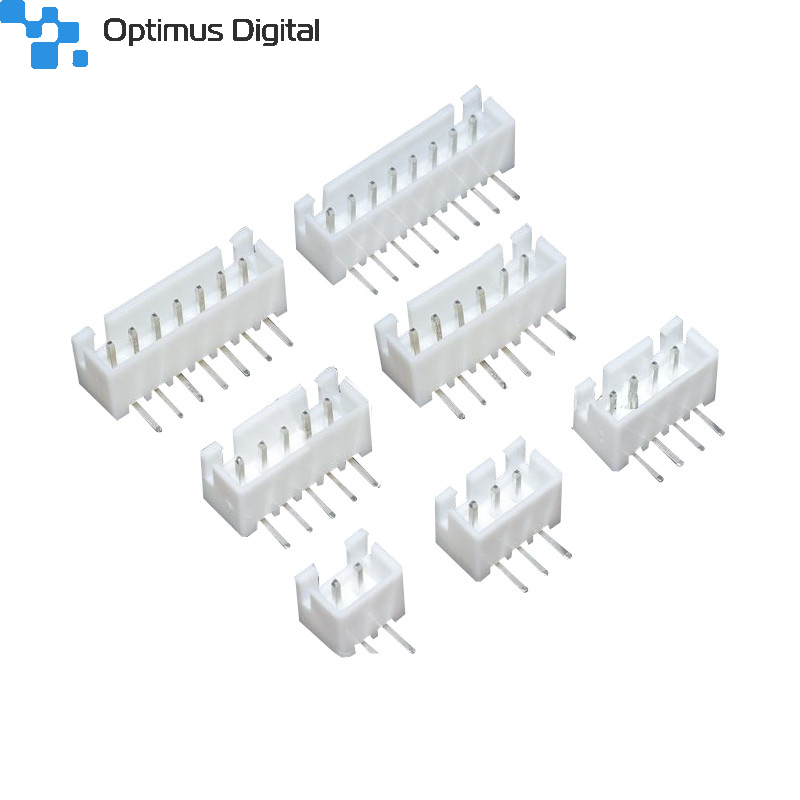

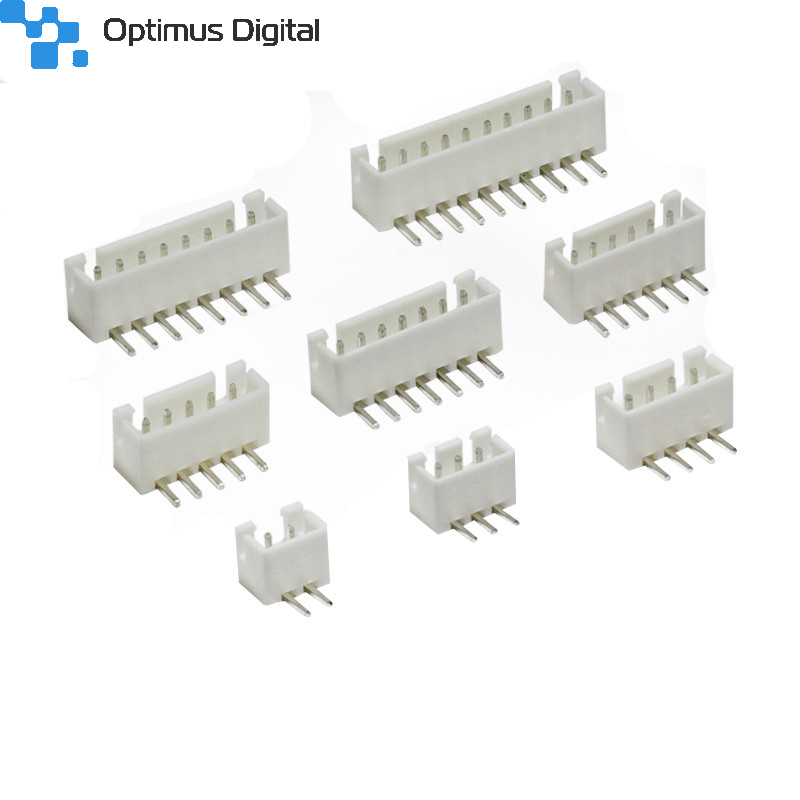

10p Bent Female XH2.54 Connector

0104210000056990

New product

10p Bent Female XH2.54 Connector

More details

38 Items

$0.12
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info


Specification

• Pitch: 2.5mm

• Poles: 2 ~ 16

• Useable wire range: AWG30# ~ 22#

• Applicable printed board thickness: 0.8 ~ 1.6mm

• Voltage rating: 250v AC/DC

• Current rating: 3A AC/DC

• Working temperature: -25°c ~ +85°c

• Withstand voltage: 1000v/min

• Contact resistance: ⩽0.02

• Insulation resistance: ≥1000mΩ

• Housing: Nylon66


Pin header

• Water: Nylon66

• Pin: Brass

• Terminal: Phosphor bronze




Poles Part No. 2.5mm Dimensions (mm)
A B C
2 YX-XH-2 2.5 7.5 1
3 YX-XH-3 5 10 3.5
4 YX-XH-4 7.5 12.5 6
5 YX-XH-5 10 15 8.5
6 YX-XH-6 12.5 17.5 11
7 YX-XH-7 15 20 13.5
8 YX-XH-8 17.5 22.5 16
9 YX-XH-9 20 25 18.5
10 YX-XH-10 22.5 27.5 21
11 YX-XH-11 25 30 23.56
12 YX-XH-12 27.5 32.5 26
13 YX-XH-13 30 35 28.5
14 YX-XH-14 32.5 37.5 31
15 YX-XH-15 35 4 33.5
16 YX-XH-16 37.5 42.5 36
