M328 Multi Component LCR Tester with Graphical Interface

0104110000019424

New product

Multi M328 Graphics Interface Tester is ideal to find out what features have certain electronic components, such as transistors, diodes, resistors, etc.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$16.56
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Features

  • Supply voltage: 9 V
  • Measures the characteristics of the following parts
    • NPN / PNP transistors
    • MOSFET / JFET N / P transistors: gate threshold, gate capacitance
    • Diode
    • Thyristor
    • Capacitors: 25 pF - 100 mF and ESR for maximum 2 uF
    • Coil: Inductance between 0.01 mH - 20 H
    • Resistors: maximum resistance 50 M Ω


Instructions for use

1.Connect the module to a 9V battery;

2.Connect the component to be analyzed.

The ZIF's bottom-left foot has 3 distinct points (numbered on the back with "1", "2" or "3"). Lift the lever to insert a component into the socket, and then let it down to fix the component. To analyze a piece, you must enter the component in differently numbered points.

The module does not take into account the polarity, so it does not matter how you connect the components because the multi-tester automatically detects this.

3.Power the multi-tester.

Once you have assured that you have mounted the correct piece, press the bottom right button to start the multi-tester. Now it automatically detects the inserted component and displays the specific information. In case you installed the wrong track or is broken, the following error will appear on the screen: "No, unknown or damaged part".

Some examples of components tested with this product:

  • Resistor:

  • Capacitor:

  • Diode:

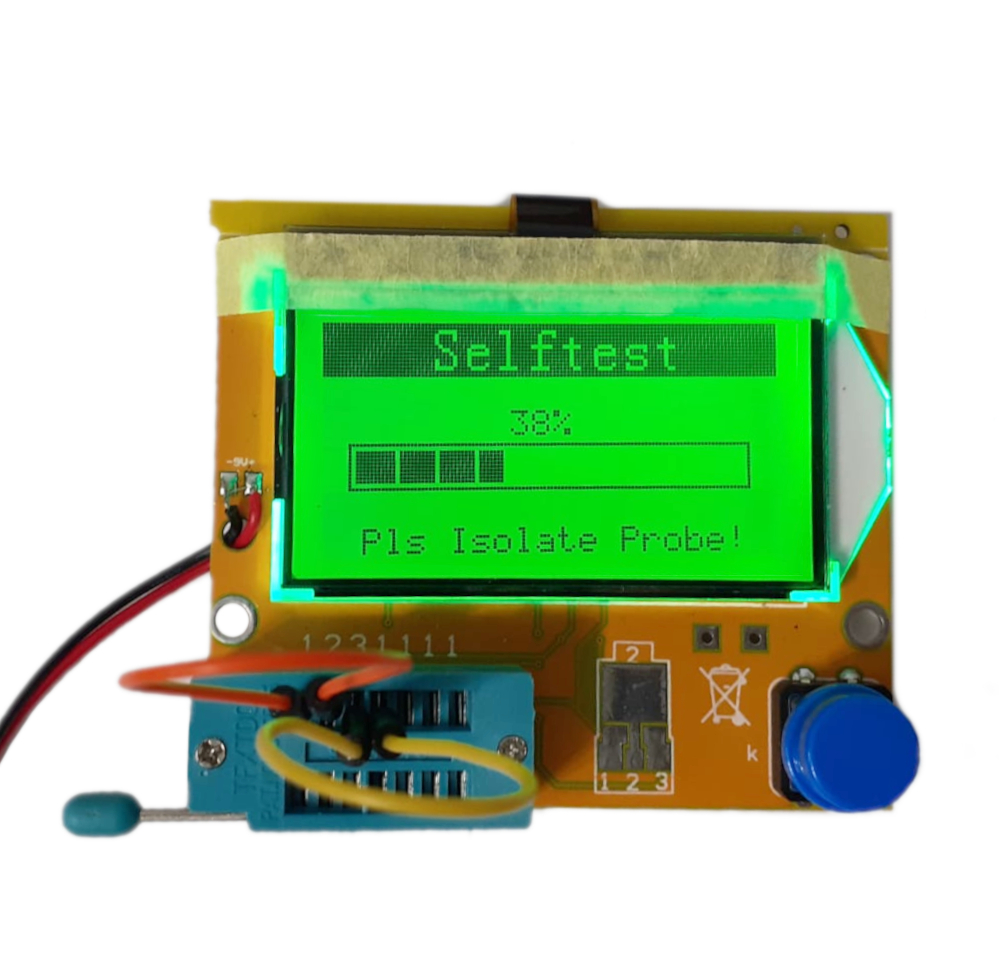

4. Auto-calibration.

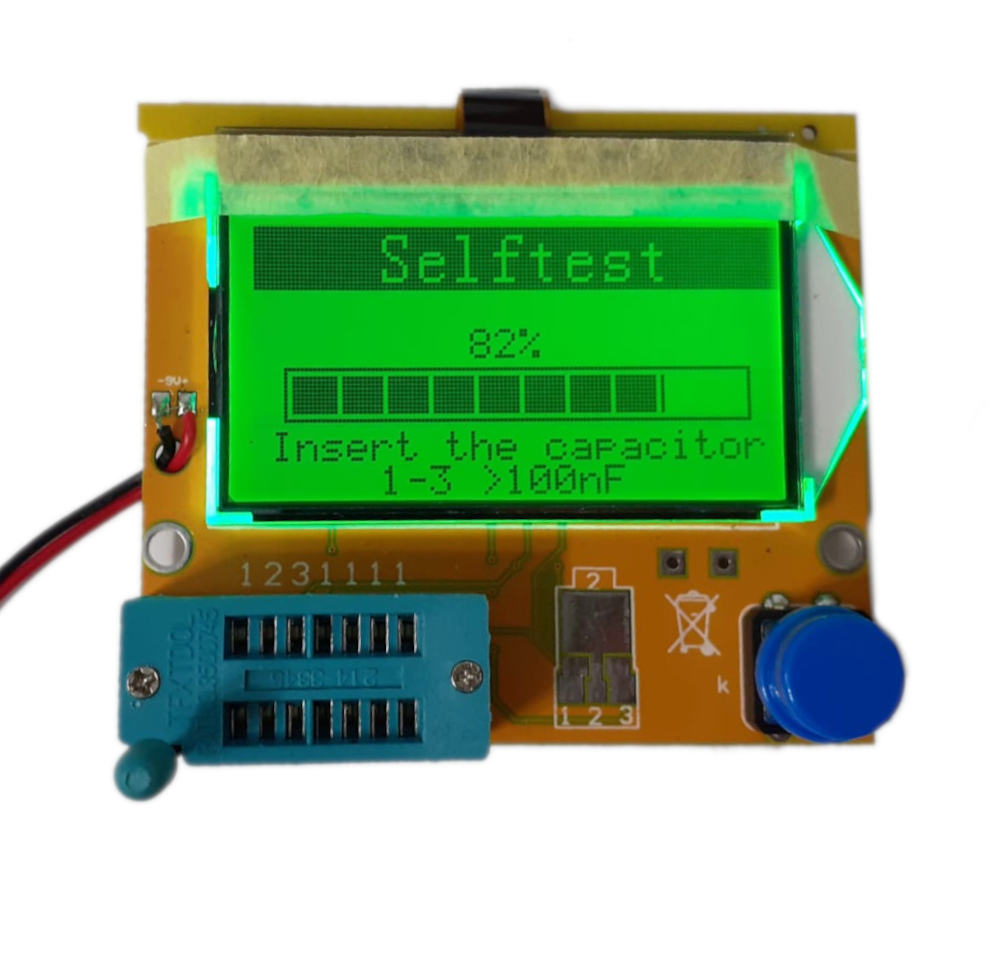

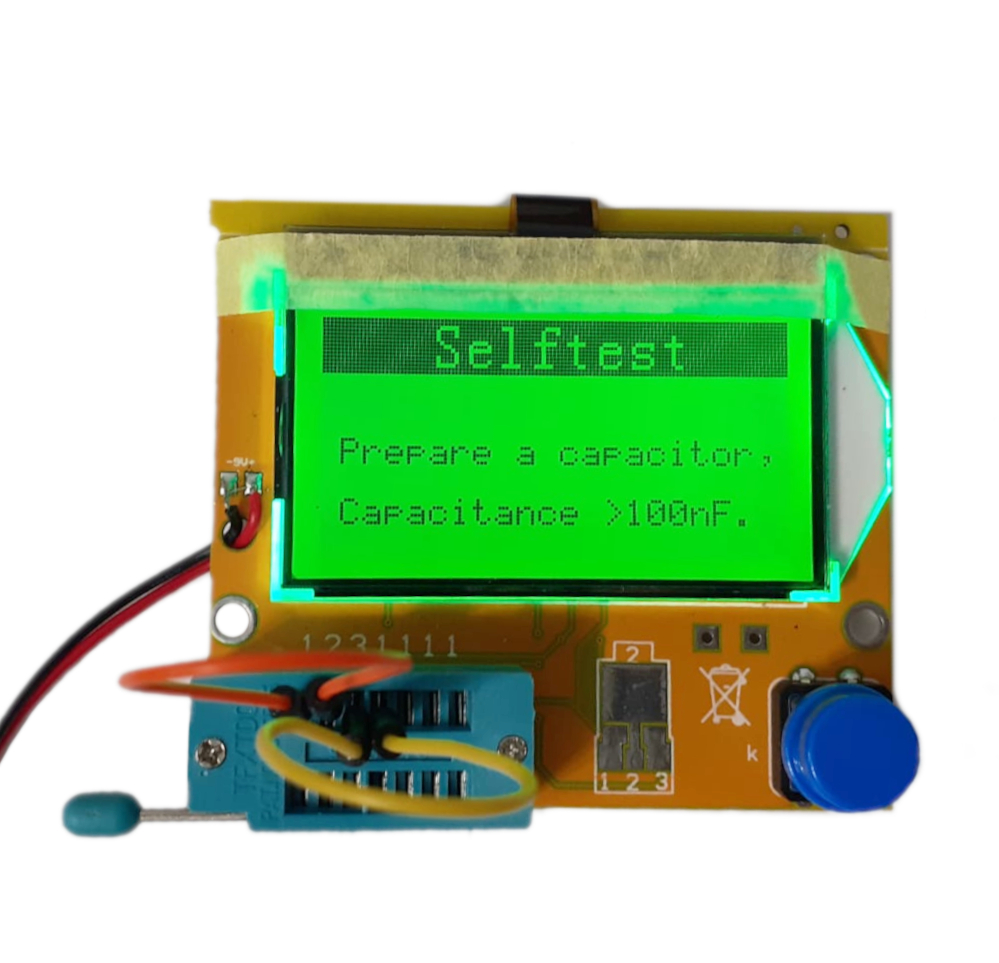

The module has auto-calibration function. To activate, you must connect all the distinguished pin (1, 2, 3) with very low resistance. Now you need to follow the instructions on the LCD, such as inserting a capacitor between pins 1 and 3. At the end of the test, your device is calibrated.


Don't delay, buy today.


Add to cart now!
