X00311XBPR
New product
Multi-Function: can do AC and DC current, AC and DC voltage, Low impedance, Continuity/Resistance/Capacitance, Temperature, Frequency, and Duty Cycle measurements.
Non-Contact Voltage Detection: Without touching any wires the instrument can check electrical status, and detect whether the conductor being measured carries a voltage higher than 90V AC.

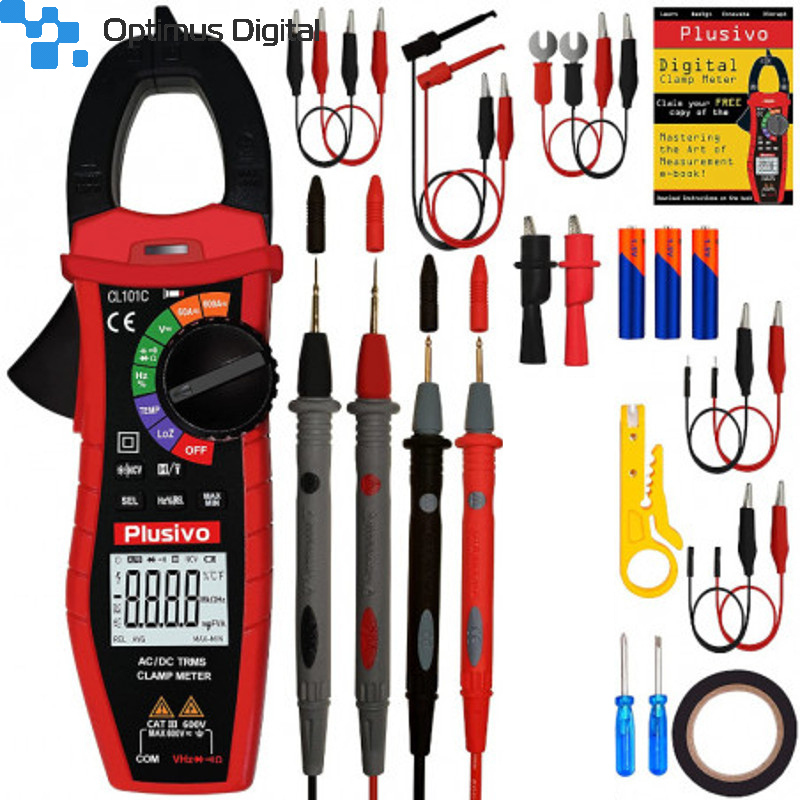

Bonus Items: This digital clamp meter also comes with normal and needle types of probes, test clips, dupont wire probes, crocodile clips, mini crocodile cable, thermocouples, mini wire stripper tool, mini screwdrivers, an electrical tape, and a downloadable E-book.
See description for more details about the product.
Add to cart now!
142 Item Items
Warning: Last items in stock!
Availability date:
Functions
• AC current range: 0.1A to 600A
• DC current range: 0.1A to 600A
• DC voltage range: 0.001V to 600V
• AC voltage range: 0.01V to 600V
• Frequency range: 40 ~ 1000 Hz
• Capacitance Range: 0.1 nF - 60 mF
• Temperature range: -200 ~ 1300°C 1°C ± (1% reading + 2°C), -328 ~ 2372°F 2°F ± (1% reading + 4°F)
• AC and DC current measurement up to 600A
• AC and DC current measurement up to 60A
• Temperature measurement
• AC and DC voltage measurement
• Capacitance / Continuity / Resistance / Diode
• Low impedance voltage measurement
• Frequency measurement
Features
• Auto-range mode
• Low battery indicator
• Hold Function / backlight and flashlight
• Overload protection
• Auto power off after 15 mins
• Over range display
• Comes with a storage bag
• Can measure Alterating Current (AC) from 0.1 A to 600 A.
• Can measure Direct Current (DC) from 0.1 A to 600 A
• For DC Current measurement, press the rel key to reset to zero, then measure the current value.
• This clamp meter can measure both AC and DC voltages.
•It can measure DC voltage from 0.001V to 600V
• It can measure AC voltage from 0.01V to 600V
• This clamp meter can measure resistance with voltage overload protection up to 250 V AC or DC.
• This clamp meter can measure temperatures at the following ranges:
• -200 ~ 1300°C 1°C ± (1% reading + 2°C)
• -328 ~ 2372°F 2°F ± (1% reading + 4°F)
• If the low battery indicator appears on the LCD, then the batteries need to be changed.
• Can hold the current reading on the instrument's display
•Flashlight: press the flashlight button for longer than 2 seconds in order to turn on the LCD backlight and the flashlight
•Note: for old model, set to current measurement function to use the flashlight
• After being idle for more than 15 minutes, the instrument will enter automatically in standby mode in order to save power.
• When the instrument detects AC voltage the buzzer gets activated and the NCV alarm light will flash.
