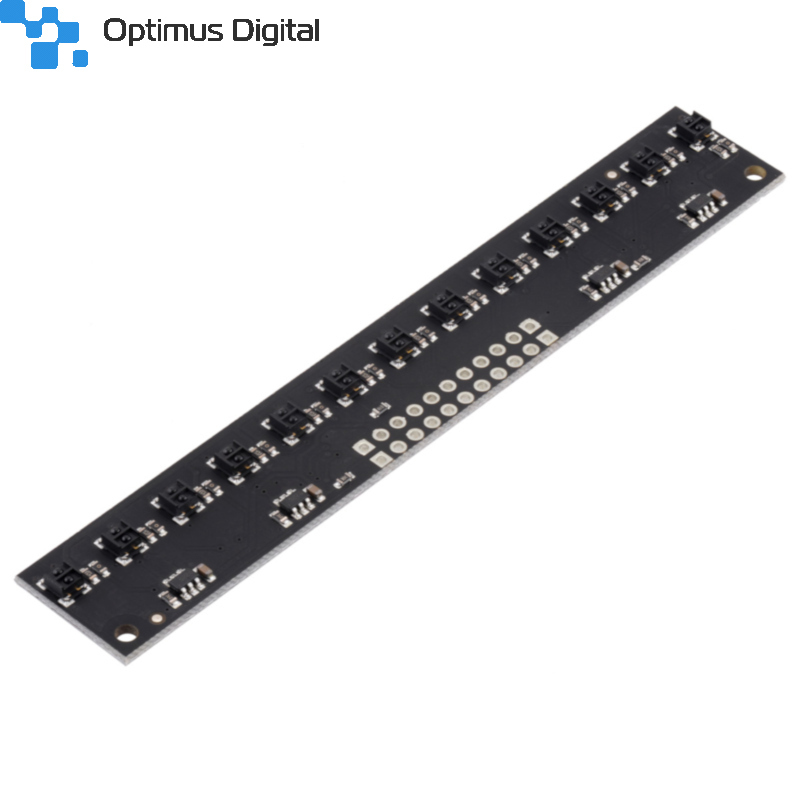

QTRX-MD-13A Reflectance Sensor Array: 13-Channel, 8mm Pitch, Analog Output, Low Current

0104110000068521

New product

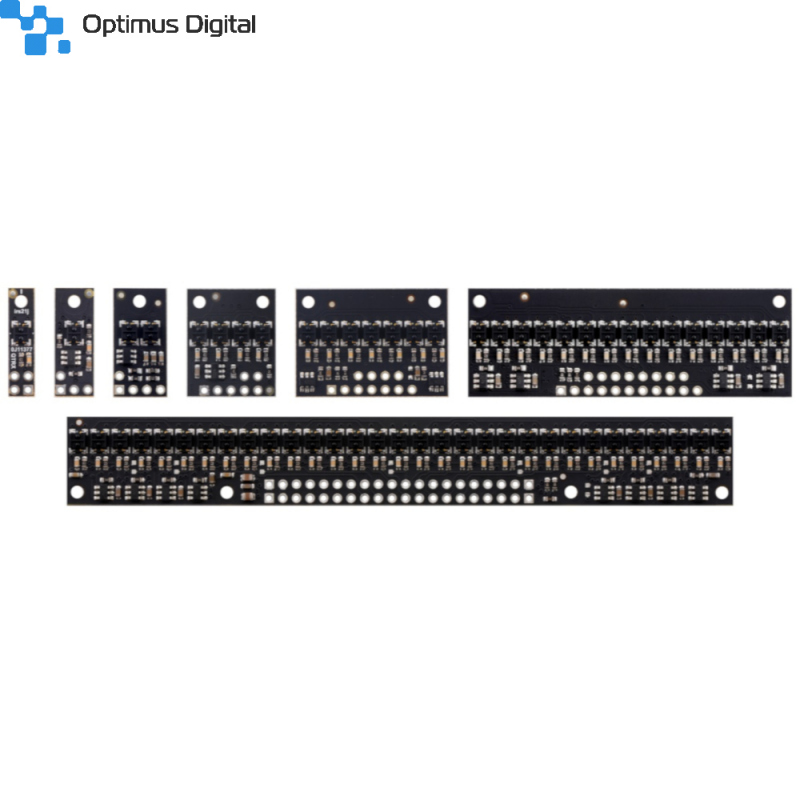

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage and separate controls for the odd and even emitters. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 40 mm. This version features high-performance, low-current QTRX sensors with lenses.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$13.20
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

-$6.00

$19.20 tax incl.

Add to wishlist

More info

Description

Details

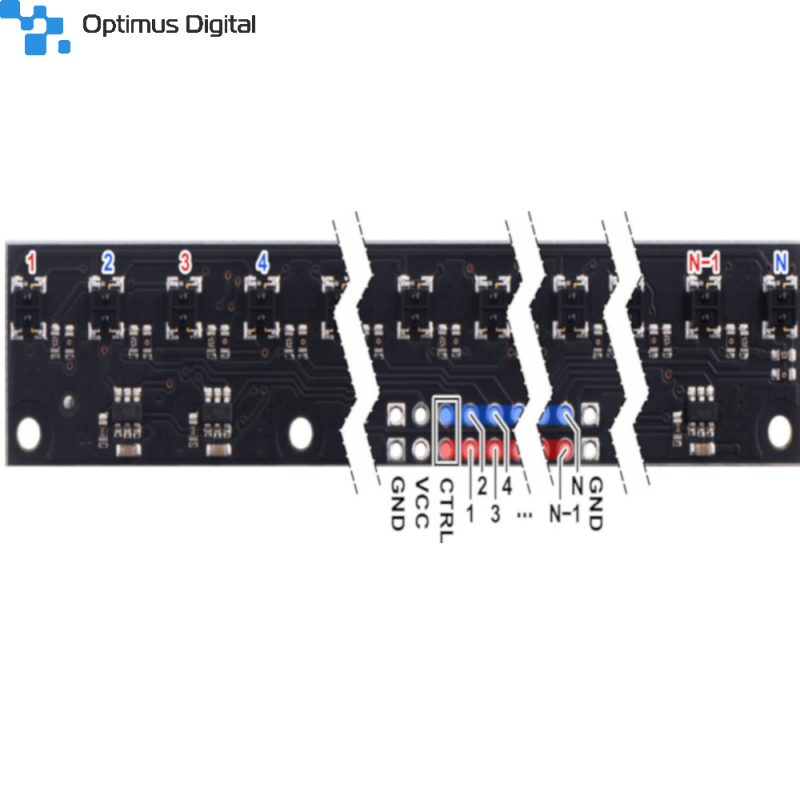

Pinout diagram of a QTRX-MD-xA Reflectance Sensor Array (larger MD boards with odd/even control).

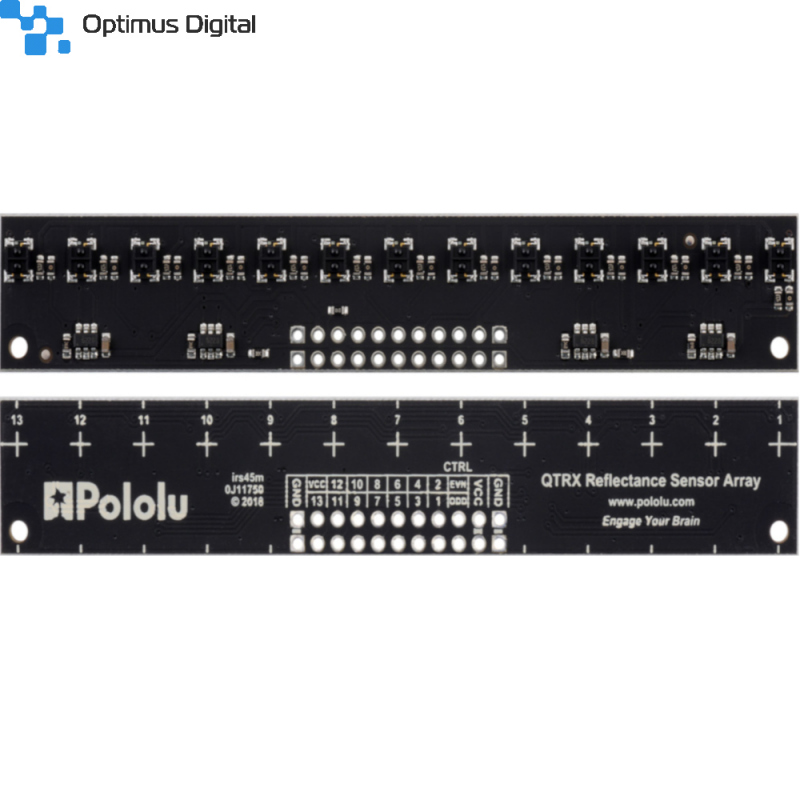

QTRX-MD-13A Reflectance Sensor Array, front and back views.


Specifications

● Dimensions: 101.0 x 16.5 x 3.0 mm (see the dimension diagram (1MB pdf) for more details)

● Operating voltage: 2.9 V to 5.5 V

● Sensor type: QTRX

● Sensor count: 13

● Sensor pitch: 8 mm

● Full-brightness LED current: 3.5 mA (independent of supply voltage)

● Max board current: 31 mA

● Output format: analog voltages (0 V to VCC)

● Optimal sensing distance: 10 mm

● Maximum recommended sensing distance: 40 mm

● Weight: 6.2 g

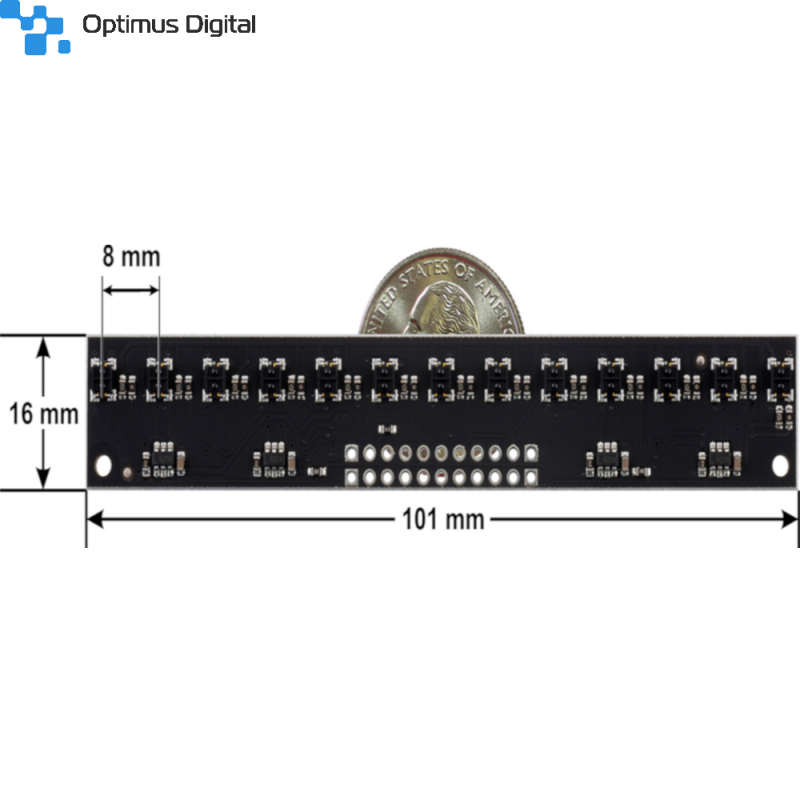

QTRX-MD-13A Reflectance Sensor Array dimensions.


Specifications

Dimensions

Size: 101.0 x 16.5 x 3.0 mm
Weight: 6.2 g


General specifications

Maximum range: 40 mm
Optimal range: 10 mm
Minimum operating voltage: 2.9 V
Maximum operating voltage: 5.5 V
LED current: 3.5 mA1
Peak wavelength: 940 nm
Maximum current draw: 31 mA2
Sensor type: QTRX
Sensor pitch: 8.0 mm
Sensor count: 13

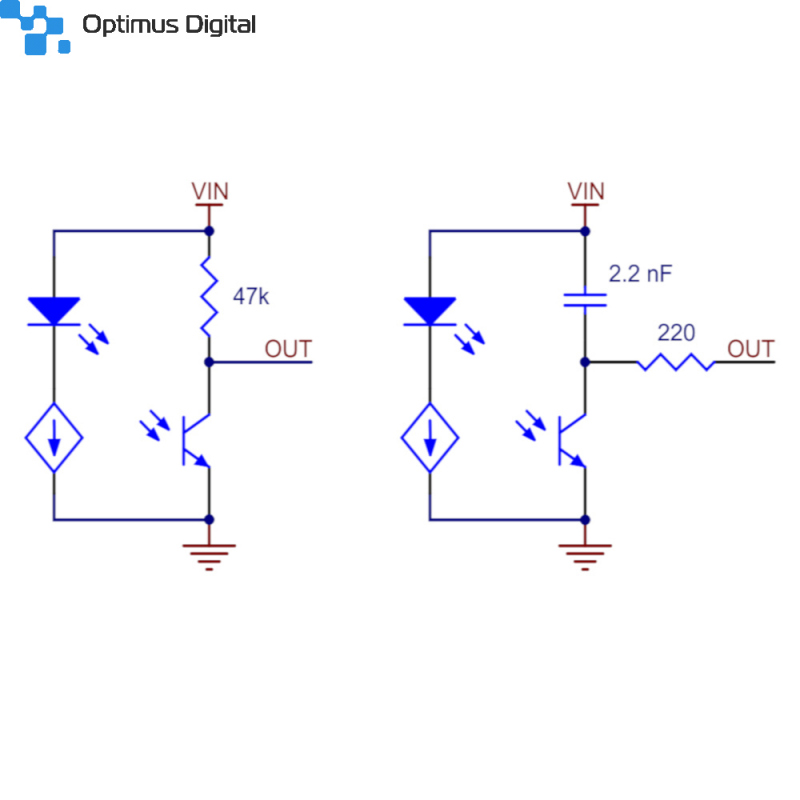

Output type: A (analog voltages)


Notes:

1 Can be dynamically reduced to any of 32 available dimming levels.
2 With all LEDs on at max brightness setting.
3 Note: this does not differentiate between the A and RC output types.
