CP2102N USB-to-Serial Adapter Carrier

Overview

This USB-to-serial adapter is a breakout board for the Silicon Labs CP2102N USBXpress USB-to-UART bridge, and it is a great solution for connecting microcontroller projects and other logic-level serial devices to a personal computer. The tiny unit measures only 0.6" x 0.95" including its Micro-USB connector. It offers several options for accessing the data, control, and GPIO pins on the CP2102N, all of which are made available on a 0.1" spacing.

This board uses 3.3 V signal levels by default, but the signal pins can tolerate higher voltages, allowing the adapter to be used with 5 V systems that see 3.3 V as a logic high. The green LED on the SUSPEND line indicates an active USB connection when lit.

The adapter looks like a standard virtual serial port (COM port) to the computer’s operating system, which means it can be used with any software designed to work with a serial port (even a legacy RS-232 port). The CP2102N is a full-speed USB 2.0 device and allows baud rates of up to 3 Mbps. Drivers are available from Silicon Labs for Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Linux, and Mac OS X.

CP2102N USB-to-serial adapter carrier, bottom view with dimensions.

This product requires a USB A to Micro-B cable (not included) to connect to a computer.

If you do not need access to all of the serial control signals, consider the Pololu USB AVR Programmer v2.1 as an alternative. In addition to its functionality as an AVR programmer, it can be used as a USB-to-TTL serial adapter with two configurable serial handshaking lines and support for both 3.3 V and 5 V operation.

For most applications, this CP2102N carrier can be considered a drop-in replacement for older CP2104 USB-to-Serial Adapter Carrier with a few improvements like a higher maximum baud rate and re-programmable configuration ROM.

Specifications

• Dimensions: 0.6" x 0.95" including connector

• USB standard: USB 2.0 (full speed)

• Connector: USB Micro-B

• Logic voltage level: 3.3 V (5 V tolerant)

• Supported baud rates: 300 bps to 3 Mbps

• Supply current: 15 mA

Using the adapter

Pinout

Connections

All of the adapter’s pins are available in two rows spaced 0.5" apart along the sides of the board. This allows any pin to be accessed easily while the adapter is plugged into a solderless breadboard, as shown in the left picture below.

Alternatively, a 1x6 header can be soldered to the end of the board, as shown in the right picture below. This gives access to six signals (RTS, RX, TX, VBUS, CTS, and GND) that are commonly found on FTDI cables and other similar USB-to-serial adapters. As a result, this CP2102N adapter board can be used as a drop-in replacement for an FTDI cable in many applications, such as programming Arduino-compatible boards.

CP2102N USB-to-serial adapter carrier in a breadboard with included 0.1" male headers installed.

CP2102N USB-to-serial adapter carrier with included 6-pin 0.1" right-angle female header installed.

Using a different VIO

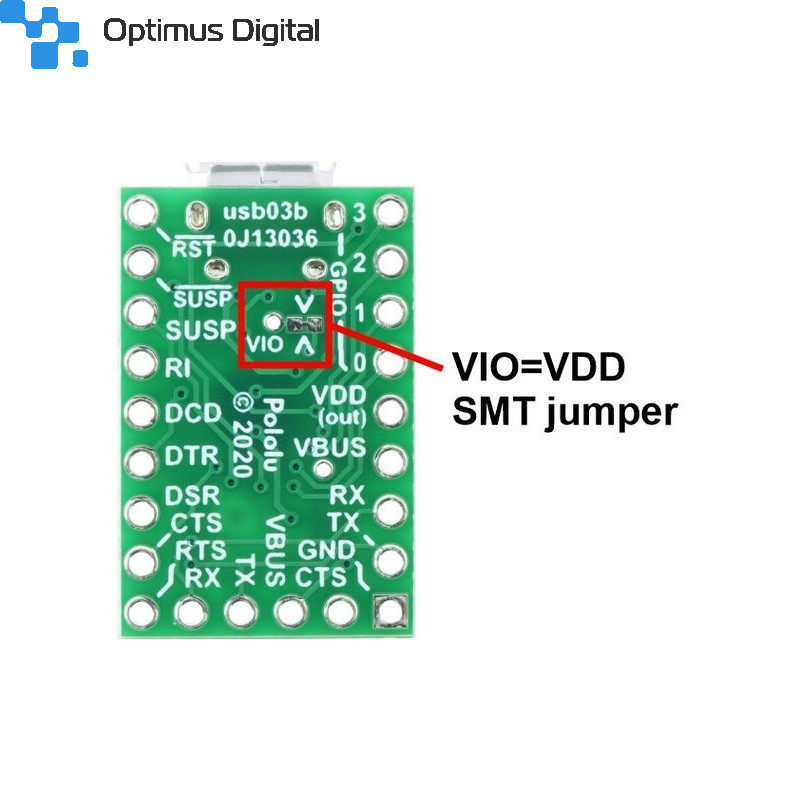

This carrier board connects the VIO pin of the CP2102N to VDD by default, setting its logic voltage level to the 3.3 V provided by the IC’s built-in voltage regulator. If you want to use a lower logic voltage, you can disconnect VIO from VDD by cutting the thin trace between the two pads of the surface-mount jumper shown to the right. You can then solder a thin wire to the exposed via labeled "VIO" and connect it to a separate voltage supply (as low as 1.71 V).

Warning: We do not recommend externally supplying VIO to this board while it is not connected to USB, as this can cause it to draw excessive current (up to a few hundred milliamps).

Schematic diagram

This schematic is also available as a downloadable PDF (169k pdf).

Advanced features

You do not need to be familiar with details of the CP2102N to use this board as a basic USB-to-serial adapter, but the CP2102N also has specialized features including four general-purpose I/O (GPIO) pins and the ability to be customized by configuring its internal EEPROM. For advanced users interested in these features, we recommend careful reading of the CP2102N datasheet (619k pdf). Additional resources, including application notes referenced by the datasheet, can also be found on the CP2102N product page on the Silicon Labs website.

Specifications

Dimensions

General specifications

Notes:

1 Without included optional headers. This measurement includes the USB Micro-B connector, which extends 0.05" past the edge of the PCB.
2 Without included optional headers.
