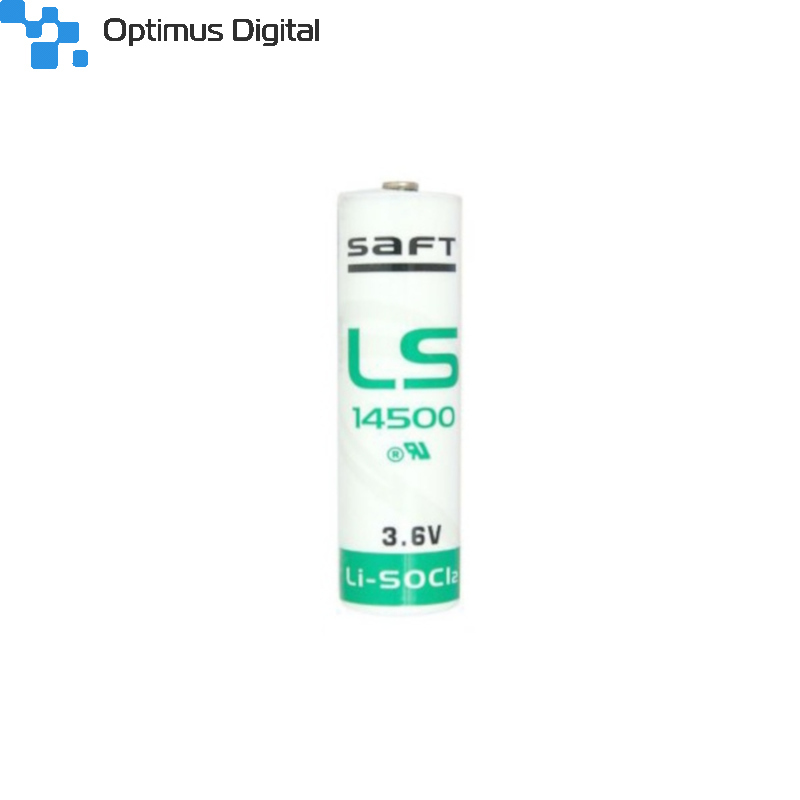

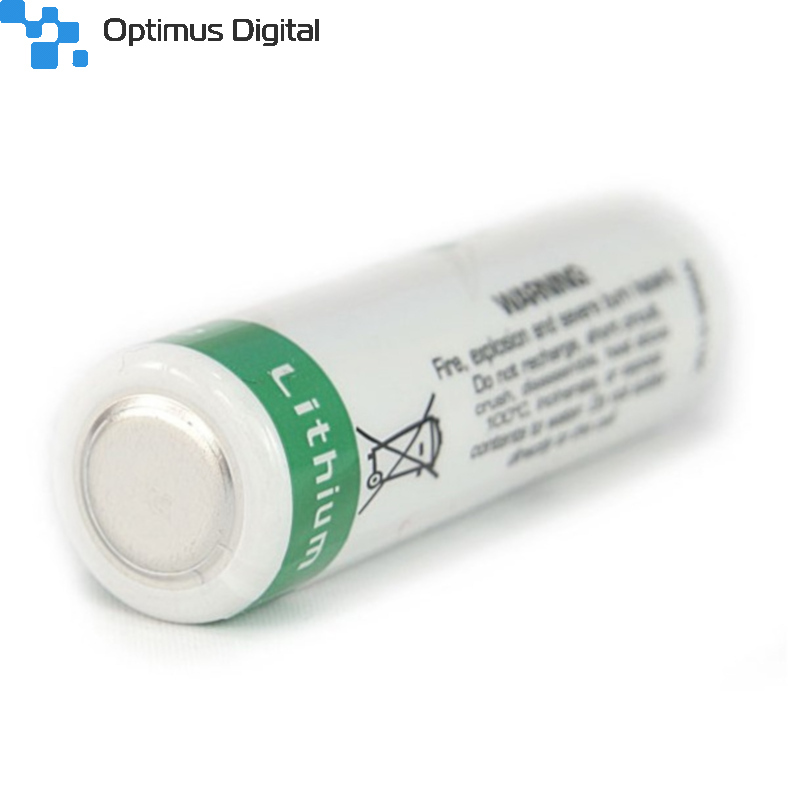

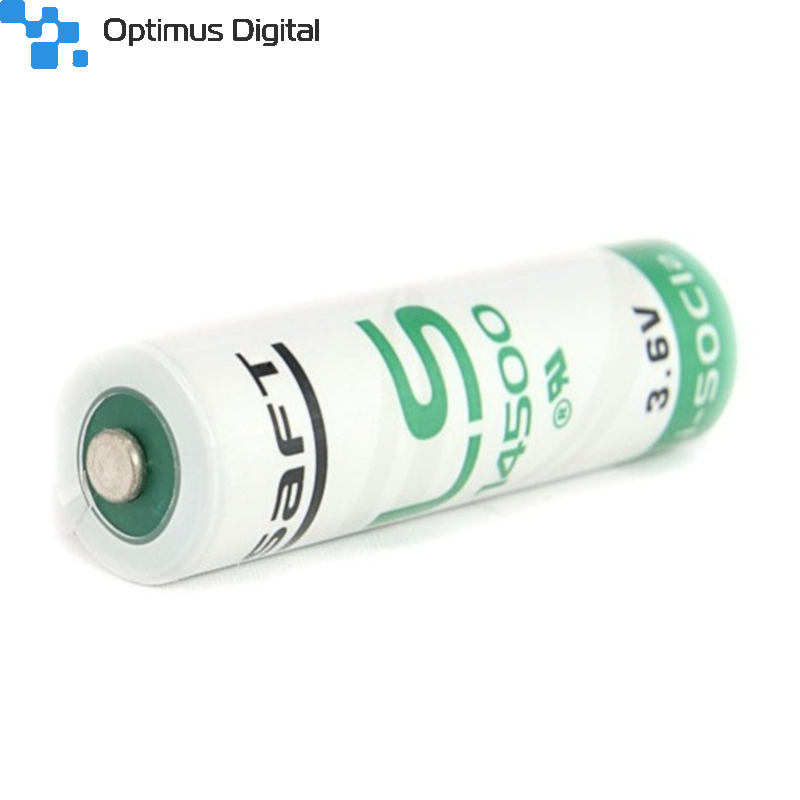

SAFT LiSOCl2 Lithium Battery - 3.6V LS14500 / STD AA

Technical data

• size: AA / R6
• voltage: 3.6 V
• capacity: 2600 mAh
• maximum continuous current: 70mA
• max impulse current: 400mA (1 sec)

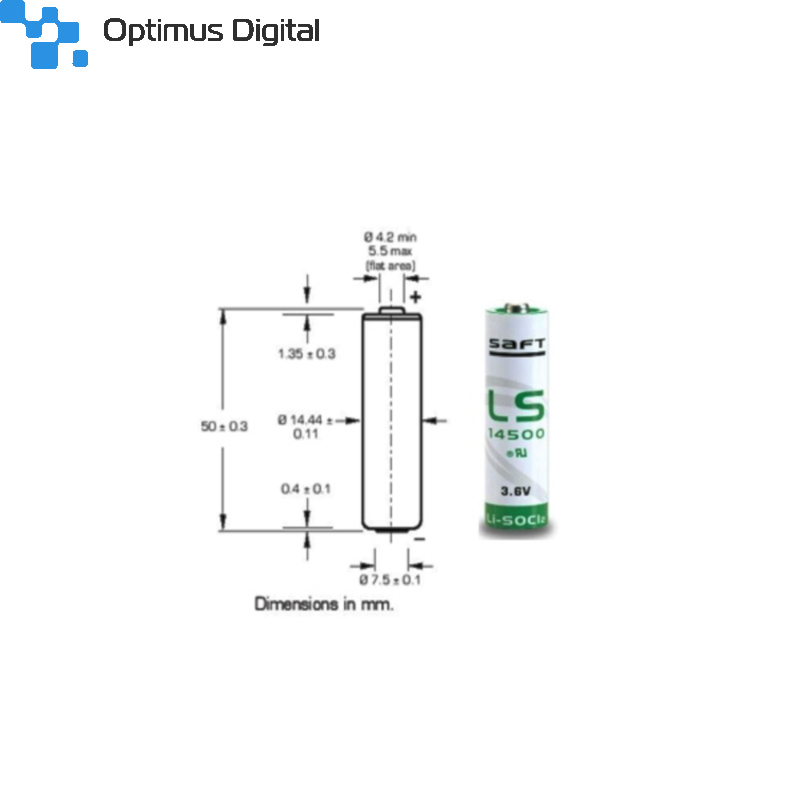

• dimensions: diameter: 14.65 mm; height: 50.3 mm
• weight: 16.7 g

Replaces the batteries

• XENO Energy: XL-060F (2.4)
• Tadiran: TL-2100 (2.1), TL-4903 (2.4), TL-5104 (2.1), TL-5903 ( 2.4)
• Sonnenschein: SL-360 (2.3), SL-760 (2.1)
• Toshiba: ER6V (2.0), ER6LV (1.8)
• Maxell: ER6 (2.0), ER6C (1.8)
• Eagle Picher: LTC-17C (1.7)
• Tekcell: SB-AA11 (2.4)
• EEMB / GMB: ER14505 (2.4), ER14505S (1.6)

These are batteries with a very wide range of applications, including

• Maintaining memory
• Industrial and office equipment
• Medical equipment
• Alarms and alarm systems
• Gas flow meters, water meters
• Professional electronics
• Location buoys
• sirens
• Vehicle electronics.

Benefits

• Enhanced capacity

• High voltage response, stable during most of the lifetime of the application

• Wide operating temperature range (- 60 °C/+ 85°C)

• Easy integration into compact system

• Superior resistance to atmospheric corrosion

Key features

• Stainless steel container and end caps (low magnetic signature)

• Hermetic glass-to-metal sealing

• Non-flammable electrolyte

• Low self-discharge rate (less than 1 % after 1 year of storage at + 20°C)

• Compliant with IEC 60079 -11 intrinsic safety standard

• Underwriters Laboratories (UL) Component Recognition (File Number MH 12609)

• Non-restricted for transport

Main applications

• Utility metering

• Automatic meter reading

• Alarms and security devices

• Tollgate systems

• Memory back-up

• Tracking systems

• Automotive electronics

• Professional electronics
