Pololu Wheel 80×10mm Pair - Black

0104110000070692

New product

These black plastic wheels have silicone tires and measure 80 mm (3.15") in diameter, and they press-fit onto the 3mm D shafts on many of our motors, including our micro metal gearmotors and our mini plastic gearmotors. Additionally, this wheel is compatible with several of our universal mounting hubs, which can serve as adapters for motors with different shafts. This product is a pair of wheels.


See Description for more details about the product.

Don't delay, buy today. Add to cart now!

More details

This product is no longer in stock

47,99 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Overview

These wheels are great for robotics, custom RC vehicles, or any other project you need to get rolling. They measure 80 mm (3.15") in diameter and are designed to press-fit securely onto D output shafts with a diameter of 3 mm. They are compatible with many of our gearmotors, including our micro metal gearmotors and our mini plastic gearmotors. Six mounting holes for #4 or M3 screws make it possible to use the wheel with any of our universal mounting hubs for those screw sizes, enabling these wheels to be used with our larger metal gearmotors and stepper motors. The slots in the six spokes fit #2 or M2 screws and allow additional accessories to be mounted to the wheel such as decorations or parts of an encoder system. The included silicone tires, which feature horizontal treads for improved traction, are also available separately.

The left picture below shows this wheel mounted to a 37D mm metal gearmotor with a universal mounting hub for 6mm shafts, and the right picture below shows this wheel mounted to a micro metal gearmotor.



Black Pololu Wheel 80x10mm on a Pololu 37D mm Metal Gearmotor.



Black Pololu Wheel 80x10mm on a Pololu Micro Metal Gearmotor.


Details

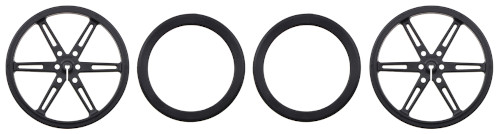

Parts included with Pololu Wheel 80x8mm Pair – Black.


This is the black version of our 80x10mm wheel pair. These same-sized wheels are also available in red, yellow, blue, or white.


We also have wheels this same size that use interchangeable collets to work with four different shaft types (3mm D, 3mm round, 4mm D, and 4mm round), and the collets also grip the shafts more tightly than similar press-fit wheels.



Black 80x10mm Pololu Multi-Hub Wheel installed on a 4mm D-shaft.



White 80x10mm Pololu Multi-Hub Wheel installed on a 3mm D-shaft.



80x10mm Pololu Multi-Hub Wheel installed on the 4mm D-shaft of a 20D metal gearmotor.



80x10mm Pololu Multi-Hub Wheel installed on the 3mm D-shaft of a micro metal gearmotor.


Specifications

Dimensions

Size: 80 x 10 mm
Weight: 0.7 oz1
Shaft diameter: 3 mm2


General specifications

Color: black


Notes:

1 Per wheel, including tire.
2 D-shaped hole for press fit.
