Stepper Motor: Bipolar, 200 Steps/Rev, 20×30mm, 3.9V, 0.6 A/Phase

Overview

This small hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 600 mA at 3.9 V, allowing for a holding torque of 180 g-cm (2.5 oz-in). The motor has four color-coded wires terminated with bare leads: black and green connect to one coil; red and blue connect to the other. These leads connect to the stepper motor through a removable JST-ZHR-5 connector. The motor can be controlled by a pair of suitable H-bridges (one for each coil), but we recommend using a bipolar stepper motor driver or one of our Tic Stepper Motor Controllers. In particular, the Tics make control easy because they support six different interfaces (USB, TTL serial, I²C, RC, analog voltages, and quadrature encoder) and are configurable over USB with our free configuration utility.

Our 4 mm universal mounting hub can be used to mount objects on the stepper motor’s 4 mm-diameter output shaft.

Specifications

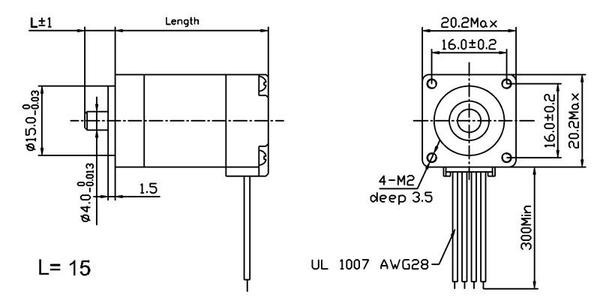

• Size: 20 mm square x 30 mm, not including the shaft (NEMA 8)

• Weight: 60 g (2 oz)

• Shaft diameter: 4 mm "D"

• Steps per revolution: 200

• Current rating: 600 mA per coil

• Voltage rating: 3.9 V

• Resistance: 6.5 Ω per coil

• Holding torque: 180 g-cm (2.5 oz-in)

• Inductance: 1.7 mH per coil

• Lead length: 30 cm (12")

• Output shaft supported by two ball bearings

Bipolar stepper motor wires are terminated with bare leads.

Bipolar stepper motor wiring diagram.
