Sale! TMC2100 Stepper Motor Driver v1.3 with Heatsink View larger

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

TMC2100 Stepper Motor Driver v1.3 with Heatsink

0104110000046291

New product

TMC2100 Stepper Motor Driver v1.3 with Heatsink


See description for more details about the product.

Add to cart now!

More details

1 Item

Warning: Last items in stock!

91,80 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Specifications

  • Dimensions: 15 x 20 mm (same as A4988, DRV8825)
  • Maximum current: 1.2 A (RMS) DC, recommended 0.5 A, maxim 1A
  • Tensiune motor: 4.75 - 46 V

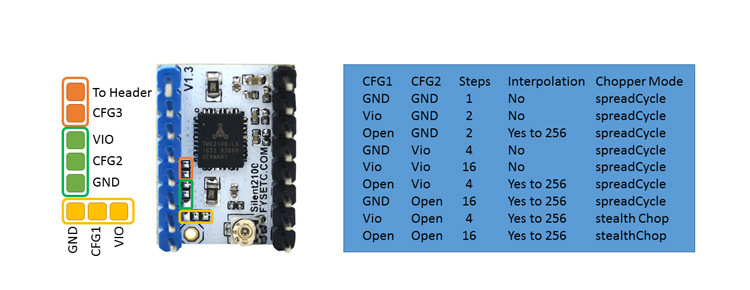

  • Microstepping modes: 1/2, 1/4, 1/8, 1/16 (with interpolation 1/256)

Undefined


To calculate the current: i = (Vref*1.9)/2.5, maxim 1 A !

example: For Vref=1 V, motor's current is 0.71 A (RMS)

Vref can be measured using a multimeter between Vref and potentiometer as shown in the image below:
