Plusivo CL201-A Digital Clamp Meter T-RMS 1999 Counts

PLUSIVO Digital Clamp Meter - True RMS (1999 Counts)

Specification

• AC current range: 0.1A to 600A
• Maximum input voltage: 600V
• Resistance Range: 200/2k/20k/200k/2M/20M
• Diode: Open voltage: 1.999 V
• Continuity: When the resistance value is less than 50 Ω, the buzzer turns on
• NCV: Non Contact Voltage Detector

• Maximum opening distance of the clamp jaw of 25 mm
• Model A has a 3 and 1/2 digit LCD (1999 counts)
• Peak measurements
• Power supply: 3 V, 2 x 1.5 V AAA batteries

Features

• Autoranging
• 600 V input voltage protection
• Auto Power-OFF
• HOLD function/Back Light
•Over load indication: “OL” symbol displayed when exceeding the measuring range
• Low battery indication

Hold / Backlight (BL) Key

Press once to freeze or retain the display reading. Long press to activate the backlight.

Features

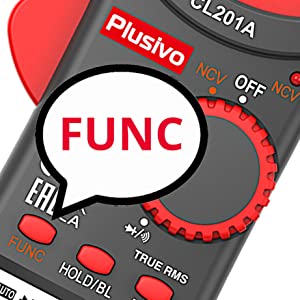

FUNC Key

Press the "FUNC" key to switch between the different measurements such as between diode and continuity.

Digital Display with Back Light

“OL” displayed when exceeding the measuring range or if test probes are connected in reverse polarity.

Clamp Jaw Opening Distance

The Jaw is marked with maximum current or voltage value making it safer and easier to use. The design is suitable for one-hand operation.

NCV Function

The red LED at the top right of the panel flashes quickly when an excess electric field is detected.

• can test electrical circuit or equipment without touching it
• “EF” is shown when there is no measurement
• display changes from "-" to "----" depending on the strength of the electric field.

Included with Test Leads and Accessories

1 x Plusivo Digital Clamp Meter, 2 pairs x Test Leads, 5 pairs x set of test leads, 1 pair x crocodile clips, 1 x mini wire stripper tool, 2 pairs x mini screwdrivers, 1 x insulating tape, 2 x AAA batteries, 1 x User Manual, 1 x Carrying Bag
