> >>Plusivo AC/DC Current Digital Clamp Meter T-RMS 6000 Counts
Plusivo AC/DC Current Digital Clamp Meter T-RMS 6000 Counts View larger
Previous Next

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

Plusivo AC/DC Current Digital Clamp Meter T-RMS 6000 Counts

X00311XBPR

New product

Multi-Function: can do AC and DC current, AC and DC voltage, Low impedance, Continuity/Resistance/Capacitance, Temperature, Frequency, and Duty Cycle measurements.

Non-Contact Voltage Detection: Without touching any wires the instrument can check electrical status, and detect whether the conductor being measured carries a voltage higher than 90V AC.

Bonus Items: This digital clamp meter also comes with normal and needle types of probes, test clips, dupont wire probes, crocodile clips, mini crocodile cable, thermocouples, mini wire stripper tool, mini screwdrivers, an electrical tape, and a downloadable E-book.

See description for more details about the product.

Add to cart now!

More details

140 Items

219,00 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info


  • Multi-Functions: This Digital Clampmeter can do AC and DC current measurement (for DC Current measurement, press "rel" key first to reset to zero
  • Non-Contact Voltage Detection: Without touching any wires the instrument can check electrical status, and detect whether the conductor being measured carries a voltage higher than 90 V AC.
  • Various Features: This clamp meter (3AAA batteries already included) includes various features such as LCD display, low battery detection, overload protection, auto power off after 15 minutes, and many more.
  • Bonus Items: This digital clamp meter also comes with normal and needle types of probes, test clips, dupont wire probes, crocodile clips, mini crocodile cable, thermocouples, mini wire stripper tool, mini screwdrivers, an electrical tape, and a downloadable e-book.
  • Satisfaction Guarantee: The Plusivo Clampmeter is backed by the manufacturer with a 30-day money-back guarantee and lifetime customer support for customer’s satisfaction.

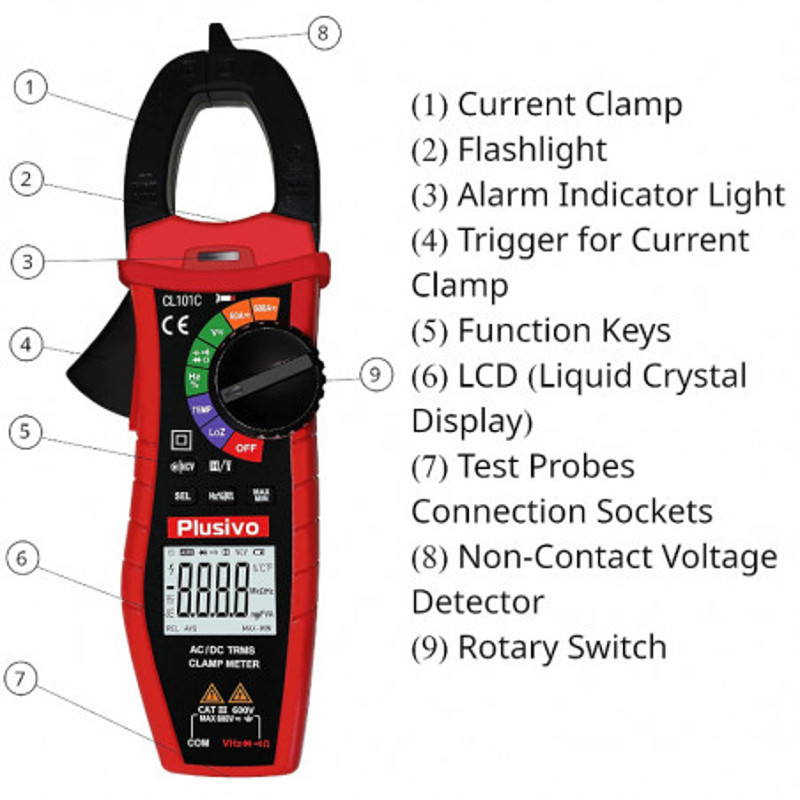

acdc-current-digital-clamp-meter-t-rms-6000-counts (1).jpg

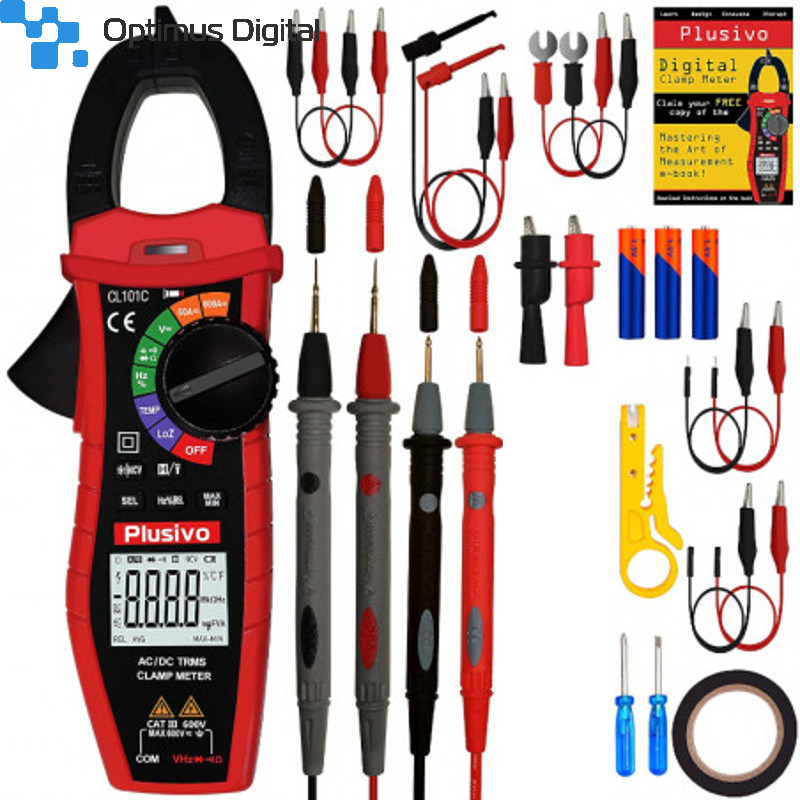

The AC/DC Current Digital Clamp Meter Includes

  • 1 pc Digital Clamp Meter (AC/DC Current Clamp Meter)
  • 1 pair Needle Tipped Test Probes with Silicone Cover (gold plated, Cat II. Voltage: 1000V, Current: 20A)
  • 1 pair Normal Test Probes with Silicone Cover (gold plated, Cat III. Voltage: 1000V, Current: 20A)
  • 1 pair Alligator Clip Test Leads
  • 1 pair Double-ended Alligator Clips Wire
  • 1 pair Male Dupont Jumper Wire to Alligator Clip
  • 1 pair Female Dupont Jumper Wire to Alligator Clip
  • 1 pair Mini Grabber Test Hook Clips to Alligator Clip
  • 1 pair U-type Test Fork Clips to Alligator Clip
  • 1 pc Thermocouple
  • 1pc mini wire stripper tool
  • 2pcs mini screwdrivers
  • 1pc Black electrical tape
  • 1pc Plusivo flyer (contains instructions on how to downloadable bonus Ebook, if unsuccessful, please contact seller)



PLUSIVO Digital Clamp Meter - AC/DC Clamp Meter

Functions

• AC current range: 0.1A to 600A
• DC current range: 0.1A to 600A
• DC voltage range: 0.001V to 600V
• AC voltage range: 0.01V to 600V
• Frequency range: 40 ~ 1000 Hz
• Capacitance Range: 0.1 nF - 60 mF
• Temperature range: -200 ~ 1300°C 1°C ± (1% reading + 2°C), -328 ~ 2372°F 2°F ± (1% reading + 4°F)

• AC and DC current measurement up to 600A
• AC and DC current measurement up to 60A
• Temperature measurement
• AC and DC voltage measurement
• Capacitance / Continuity / Resistance / Diode
• Low impedance voltage measurement
• Frequency measurement



Features

• Auto-range mode
• Low battery indicator
• Hold Function / backlight and flashlight
• Overload protection
• Auto power off after 15 mins
• Over range display

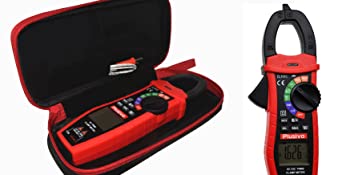

• Comes with a storage bag



AC/DC Current Measurement

• Can measure Alterating Current (AC) from 0.1 A to 600 A.
• Can measure Direct Current (DC) from 0.1 A to 600 A
• For DC Current measurement, press the rel key to reset to zero, then measure the current value.


CLAMP METER FEATURES



AC/DC Voltage Measurement

• This clamp meter can measure both AC and DC voltages.
•It can measure DC voltage from 0.001V to 600V
• It can measure AC voltage from 0.01V to 600V



Resistance Measurement

• This clamp meter can measure resistance with voltage overload protection up to 250 V AC or DC.



Temperature Measurement

• This clamp meter can measure temperatures at the following ranges:
• -200 ~ 1300°C 1°C ± (1% reading + 2°C)
• -328 ~ 2372°F 2°F ± (1% reading + 4°F)



Low Battery Indicator

• If the low battery indicator appears on the LCD, then the batteries need to be changed.



Hold Function / Backlight and Flashlight

• Can hold the current reading on the instrument's display
•Flashlight: press the flashlight button for longer than 2 seconds in order to turn on the LCD backlight and the flashlight
•Note: for old model, set to current measurement function to use the flashlight



Auto Power Off

• After being idle for more than 15 minutes, the instrument will enter automatically in standby mode in order to save power.



Non-Contact Voltage Detection

• When the instrument detects AC voltage the buzzer gets activated and the NCV alarm light will flash.



Don't delay. Buy today.


Add to cart now!
