Description

  • Model: JRP7006
  • Display Type: 7.0" TFT Normally Black
  • Resolution: 1024*RGB*600
  • Color: 16.7M
  • View Angle: Full View
  • Driver IC: ST5091+ST5625
  • Interface Types: HD
  • Connection Mode: HD
  • Brightness: 500cd/m2


Specification

  • Outline Dimension: 166.51*125.50*17mm
  • Active Area Dimension: 154.08*85.92mm
  • Resolution Dimension: 1024*3RGB*600
  • Pixel Pitch Dimension: 0.0219*0.219mm
  • Structure Type: COG+FPC+BL (note)

Note: COG: Chip On Glass (LCD+IC); BL: Backlight; TP: Touch Panel

Display - JRP7006/JRP1105

Product description

  • Standard display, 1024 × 600 Hardware resolution, Up to 1920x1080 Software configuration resolution. Mini HD interface is adopted.
  • Capacitive touch screen, maximum support 5 point touch.
  • Support backlight control alone, the backlight can be turned off to save power.
  • Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC.
  • Can be used as general-purpose-use HD monitor, for example: connect with a computer HD as the sub-display.

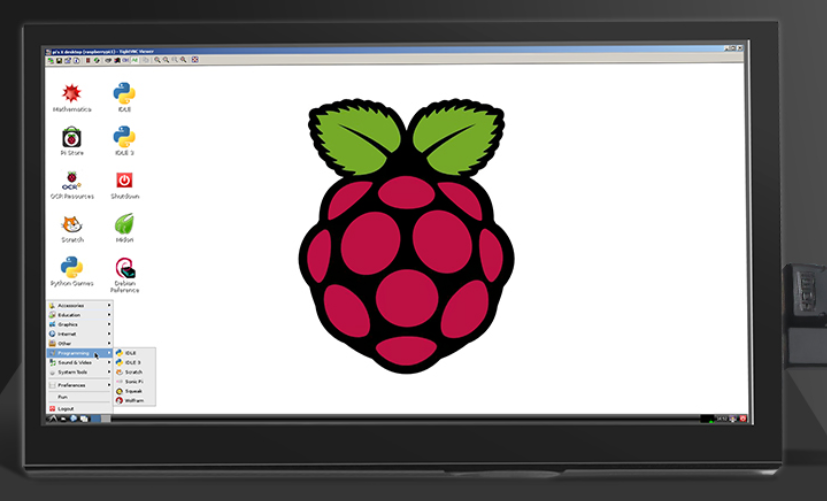

  • Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive.
  • Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive.
  • CE, RoHS certification.

Product Parameters

  • Size: --                                              ● Resolution: 1024×600 (dots)           ● SKU: --
  • Touch: five-point capacitive touch    ● Dimensions: ---                                ● Weight: --

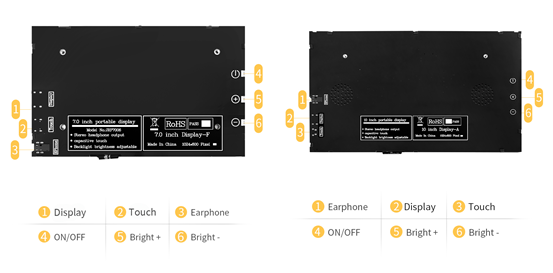

Hardware Description

How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System

  • Step 1 - Install Raspbian official image
      1. 1) Download the latest image from the official download.
      2. 2) Install the system according to the official tutorial steps.
  • Step 2 - Modify the “config.txt”

After the programming of Step 1 is completed, open the config.txt file of Micro SD Card root directory and add the following code at the end of the file, save and eject Micro SD Card safely:

max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=10
hdmi_group=2
hdmi_mode=87
hdmi_cvt 1024 600 60 6 0 0 0

  • Step 3, Insert the Micro SD Card to Raspberry Pi, connect the Raspberry Pi and LCD by HD cable; connect USB cable to one of the four USB ports of Raspberry Pi, and connect the other end of the USB cable to the USB port of the LCD; then supply power to Raspberry Pi; after that if the display and touch both are OK, it means drive successfully (please use the full 2A for power supply).


How to rotate display direction:

1. Open the “config.txt” file (the “config.txt” file is located in /boot):

sudo nano /boot/config.txt

2. Add the statement in the “config.txt” file, press Ctrl+X to exit, press Y to save.

display_rotate=1 #0: 0; 1: 90; 2: 180; 3: 270

3. Restart the Raspberry Pi after saving.

sudo reboot


How to rotate touch direction:

After the display is rotated, the touch needs to be modified.

1. Install libinput

sudo apt-get install xserver-xorg-input-libinput

2. Create the xorg.conf. D directory in /etc/x11 / below (if the directory already exists, this will proceed directly to step 3.

sudo mkdir/etc/X11/xorg.conf.d

3. Copy the file “40-libinput.conf” to the directory you just created.

sudo cp /usr/share/X11/xorg.conf.d/40-libinput.conf /etc/X11/xorg.conf.d/

4. Edit “/etc/X11/xorg.conf.d/40-libinput.conf”.

sudo nano /etc/X11/xorg.conf.d/40-libinput.conf

Find a part of the touchscreen, add the following statement inside, press Ctrl+X to exit, press Y to save. 7inch HD Display-C user manual.

Option "CalibrationMatrix" "0 1 0 -1 0 1 0 0 1"

5. Restart your Raspberry Pi

sudo reboot

Complete the above steps for a 90 degree rotation.

Note:

0 degrees of rotation parameters: Option "CalibrationMatrix" "1 0 0 0 1 0 0 0 1"

90 degrees of rotation parameters: Option "CalibrationMatrix" "0 1 0 0-1 1 0 0 1"

180 degrees of rotation parameters: Option "CalibrationMatrix" "-1 0 1 0 -1 1 0 0 1"

270 degrees of rotation parameters: Option "CalibrationMatrix" "0-1 1 1 0 0 0 0

How to use as PC Monitor

  • Connect the computer HD output signal to the LCD HD interface by using the HD cable.

  • Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device.

  • If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
