Plusivo Soldering Iron Kit with Digital Multimeter V5 (230 V, EU Plug)

Soldering Kit with Multimeter

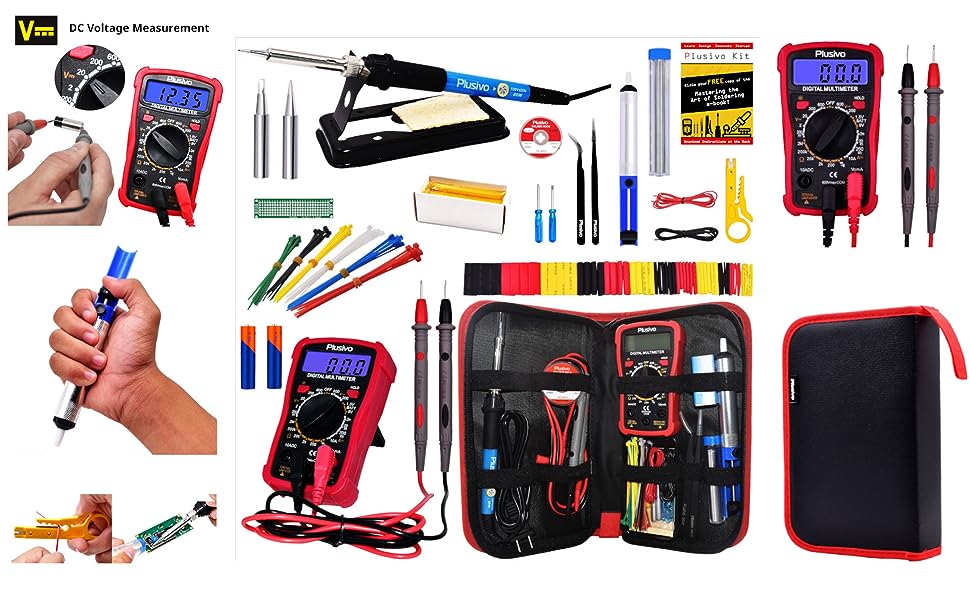

The Soldering Kit with Multimeter includes:

• Adjustable Temperature Soldering Iron (60 W)
• Soldering Iron Stand
• Multimeter with Premium Probes
• Mini Wire Stripper Tool
• Tweezers (Curved ESD-15, Straight Tweezers ESD-11)
• Tin Wire Solder Tube and Desoldering Pump
• Black 22 and Red 22 AWG Wire
• 2 pcs Soldering Iron Tips (B and 3.2D)
• Mini Solder Rosin Paste
• Mini Screwdriver and Mini PCB
• Heat Shrink Kit
• Flyer containing instructions on how to download the user guide

Soldering Tips and Techniques : 1. Please always be careful when using these tools and check the safety tips when working with soldering iron and related activities 2. Please select a suitable temperature when soldering 3. Lower down the temp or turn off the soldering iron when not to be used for longer periods of time (do not let it be idle) to avoid damage to the iron and tips. 4. If something unusual happens with the product and if you are not familiar in fixing it, unplug it and do not do anything and contact seller for assistance)

The Plusivo Soldering Kit is a set that contains a complete soldering kit that includes common tools used for soldering including a Multimeter. The kit contains a 60 W Soldering Iron with Adjustable Temperature equipped with safety design like the heat-insulated and anti-scalding silicone handle to protect users from burning. Together with the soldering iron, included are some tools and items that are needed in both soldering or desoldering. The kit contents are inside a PU carry bag that allows you to easily store the tools. Plus an Ebook for download just for you, to guide you in your soldering journey.

Soldering Iron with Temperature Control Knob

• Adjustable Temperature Knob - to set the optimal temperature based on the solder alloy composition that you use
• Four Ventilation Holes - for quick heat dissipation
• Heat Resistant Grip - for safety when holding the soldering iron

2 pcs Replaceable Tips

• soldering iron tips varies in size and shape for different types of work

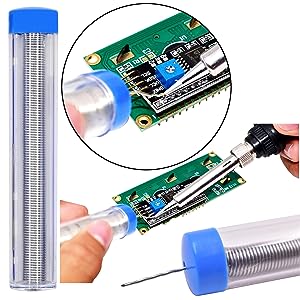

Tin Wire Solder Tube

• solder packaged in a pen-shaped container or tube for smooth feeding of the solder wire during use

Solder Wire, Solder Wick, Wire Stripper Cutter

Tin Wire Solder Tube

• diameter: 0.8mm
• alloy: 63% Sn, 37% Pb
• flux content: 2%
• 10 grams 63/37 Sn-Pb eutectic solder that is suitable for hobby electronics, repair and prototyping
• easy to carry

Mini Wire Stripper Tool

• has several settings for stripping wires and cables of differing width
• grip is made of plastic and the knife is made of metal
• a necessary accessory when you need to punch down excess wires/leads

Desoldering Vacuum Pump or Solder Sucker

• lightweight
• designed for one-hand operation
• ideal for all types of repair jobs, circuit boards and other solder removal applications
• quickly removes solder in a single action through large capacity spring-loaded plunger
• made with ABS plastic handle, strong spring, high power suction

The Plusivo compact digital multimeter can be used to measure DCvoltage, ACvoltage, DCcurrent, and resistance. It can also test diodes (forward /reverse bias), and circuit continuity. This multimeter is the ideal tool for electronics and electrical circuit debugging needs.

Voltage Measurement

• DC-voltage: 200mV/2V/20V/200V ±(0.5%+4), 600V ±(1%+5)
• AC-voltage: 0 to 600V, 200V/600V ±(1.2%+10)

DC-Current Measurement

• DC-current: 0 to 10A
• DC-current: 2mA/20mA/200mA ±(1.5%+3), 10A ±(2%+5)

Resistance Measurement

• Resistance: 0 ohms to 2 M ohms
• Resistance: 200Ω ±(1%+5), 2kΩ/20KΩ/200KΩ ±(0.8%+3), 2MΩ ±(1%+15)

Battery and Continuity Test

• Battery Quality Test:This multimeter is capable of measuring battery quality for 1.5V and 9V batteries by measuring the amount of current it can provide.
• Continuity Test: Connect the test leads to two points on the circuit being tested.

Display with Backlight

• Maximum display value: 1999 (3 1/2) digits, automatic polarity display
• With back-light feature that will be turned on for about 10 seconds when the upper left most button is pressed

Premium Probes

• Soft rod, full sheath, socket to ensure connection effectiveness
• The pen is about 15.5 cm long and the effective probe is about 2 cm. The total length is about 110cm
• High and low-temperature resistance: 0-40 ° C CATIII 1000V / 10A
• Scope of application: a standard instrument for standard 4 mm banana plug

Hand-Held or Stand-Alone

• Conveniently equipped with a kick-stand so that the multimeter can stand-alone for easy reading of measurements.
• Ergonomically shaped multimeter body that makes it easy to grip.

Multimeter Protector

• This digital multimeter has a protective cover to protect the multimeter from physical damages.
