View larger
Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.
LM12UU Linear Bearing
0104210000032192
New product
LM12UU Linear Bearing
See description for more details about the product.
Add to cart now!
54 Items
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info

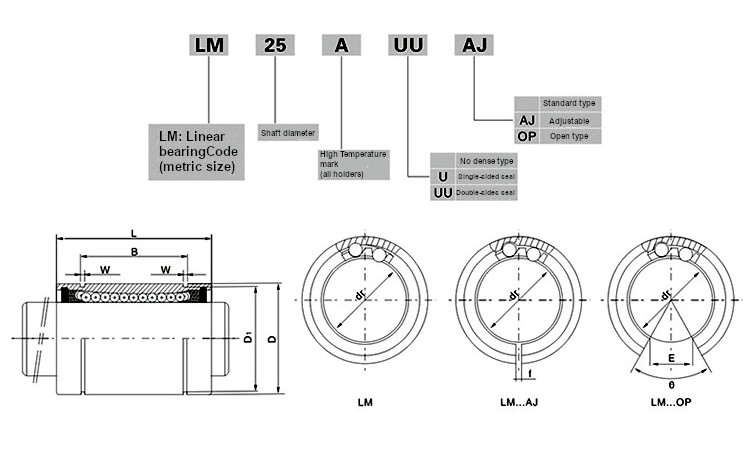

| Designation | Major dimensions and tolerance | ||||||
| LM...UU | Ball Circuit |
Weight (g) |
LM...AJ | LM...OP | dr (mm) | Tolerance (mm) | |
| Precision J | Precision P | ||||||
| LM 4UU | 4 | 1.9 | - | - | 4 |
0 -0.005 |
0 -0.008 |
| LM 5UU | 4 | 4 | - | - | 5 | ||
| LM 6UU | 4 | 8 | LM6-AJ | - | 6 |
0 -0.006 |
0 -0.009 |
| LM 8UU | 4 | 11 | LM8-AJ | - | 8 | ||
| LM 8UU | 4 | 16 | LM8-AJ | - | 8 | ||
| LM 10UU | 4 | 30 | LM10-AJ | LM10-OP | 10 | ||
| LM 12UU | 5 | 31.5 | LM12-AJ | LM12-OP | 12 | ||
| LM 13UU | 5 | 43 | LM13-AJ | LM13-OP | 13 | ||
| LM 16UU | 5 | 69 | LM16-AJ | LM16-OP | 16 | ||
| LM 20UU | 6 | 87 | LM20-AJ | LM20-OP | 20 |
0 -0.007 |
0 -0.0010 |
| LM 25UU | 6 | 220 | LM25-AJ | LM25-OP | 25 | ||
| LM 30UU | 6 | 250 | LM30-AJ | LM30-OP | 30 | ||
| LM 35UU | 6 | 390 | LM35-AJ | LM35-OP | 35 |
0 -0.008 |
0 -0.0012 |
| LM 40UU | 6 | 585 | LM40-AJ | LM40-OP | 40 | ||
| LM 50UU | 6 | 1580 | LM50-AJ | LM50-OP | 50 | ||
| LM 60UU | 6 | 2000 | LM60-AJ | LM60-OP | 60 |
0 -0.009 |
0 -0.0015 |
| LM 80UU | 6 | 4420 | LM80-AJ | LM80-OP | 80 | ||
| LM 100UU | 6 | 8600 | LM100-AJ | LM100-OP | 100 |
0 -0.010 |
0 -0.020 |
| Major dimensions and tolerance | Ratings load | Model No. | |||||||||||
| D (mm) | Tolerance (mm) | L (mm) | Tolerance (mm) | B (mm) | Tolerance (mm) | W (mm) | D1 | f | E | O | Dynamic CN | Static CoN | |
| 8 |
0 |
12 | 0 -0.12 |
- | - | - | - | - | - | - | 88 | 127 | LM 4UU |
| 10 | 15 | 10.2 | 0 -0.2 |
1.1 | 9.6 | - | - | - | 167 | 206 | LM 5UU | ||
| 12 | 0 -0.011 |
19 | 0 -0.2 |
13.5 | 1.1 | 11.5 | 1 | - | - | 206 | 265 | LM 6UU | |
| 15 | 17 | 11.5 | 1.1 | 14.3 | 1 | - | - | 176 | 216 | LM 8UU | |||
| 15 | 24 | 17.5 | 1.1 | 14.3 | 1 | - | - | 274 | 392 | LM 8UU | |||
| 19 | 0 -0.013 |
29 | 22 | 1.3 | 18 | 1 | 6.8 | 80° | 372 | 549 | LM 10UU | ||
| 21 | 30 | 23 | 1.3 | 20 | 1.5 | 8 | 80° | 510 | 784 | LM 12UU | |||
| 23 | 32 | 23 | 1.3 | 22 | 1.5 | 9 | 80° | 510 | 784 | LM 13UU | |||
| 28 | 37 | 26.5 | 1.6 | 27 | 1.5 | 11 | 80° | 774 | 1180 | LM 16UU | |||
| 32 | 0 -0.016 |
42 | 30.5 | 1.6 | 30.5 | 1.5 | 11 | 60° | 882 | 1370 | LM 20UU | ||
| 40 | 59 | 0 -0.3 |
41 | 0 -0.3 |
1.85 | 38 | 2 | 12 | 50° | 980 | 1570 | LM 25UU | |
| 45 | 64 | 44.5 | 1.85 | 43 | 2.5 | 15 | 50° | 1570 | 2740 | LM 30UU | |||
| 52 | 0 -0.019 |
70 | 49.5 | 2.1 | 49 | 2.5 | 17 | 50° | 1670 | 3140 | LM 35UU | ||
| 60 | 80 | 60.5 | 2.1 | 57 | 3 | 20 | 50° | 2160 | 4020 | LM 40UU | |||
| 80 | 100 | 74 | 2.6 | 76.5 | 3 | 25 | 50° | 3820 | 7940 | LM 50UU | |||
| 90 | 0 -0.022 |
110 | 85 | 3.15 | 86.5 | 3 | 30 | 50° | 4700 | 10000 | LM 60UU | ||
| 120 | 140 | 0 -0.4 |
105.5 | 0 -0.4 |
4.15 | 116 | 3 | 40 | 50° | 7350 | 16000 | LM 80UU | |
| 150 | 0 -0.025 |
175 | 125.5 | 4.15 | 145 | 3 | 50 | 50° | 14120 | 34800 | LM 100UU | ||
