Quanum Elite X50-L 25mW TX Transmitter with Metal Case

89797

New product

The Quanum Elite X50-L 25mW TX transmitter delivers 5.8GHz 200mW without interruption, making it ideal for First Person View (FPV) projects. This is one of the best transmitters if you need a large coverage range. It can transmit on 40 channels and has a selection system very easy to use.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

249,00 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Descriptions

The Elite X50-2 quanum comes in an aluminum case that is not only resistant to shocks or other hazards but also uses heat dissipation. The housing also provides gripping holes, so you can secure the module for more safety.


Technical specifications

  • Offers built-in microphone
  • Very light: 12.5g
  • Channels: 40 ch
  • Aluminum housing
  • Button to change band and channels
  • Vertical Antenna
  • Video format: NTSC / PAL
  • Antenna connector: SMA mother
  • Supply voltage: 7 - 20V (3S LiPo batteries)
  • Output voltage: 5V
  • Output impedance: 50 Ohm
  • Transmission power: 200mW
  • Frequency: 5645-5945Mhz
  • Current consumption: 200mA @ 12V
  • Audio Frequency: 6.5Mz
  • Input Audio Impedance: 10k Ohm
  • Weight: 12.5g


Compatible with fractions

FRA: 5740MHz, 5760MHz, 5780MHz, 5800MHz, 5820MHz, 5840MHz, 5860MHz, 5880MHz, 5665MHz, 5645MHz, 5885MHz, 5665MHz, 5645MHz, 5885MHz,
5905MHz, 5925MHz, 5945MHz, 5865MHz, 5785MHz, 5765MHz, 5745MHz, 5725MHz
FRD: 5658MHz, 5695MHz, 5732MHz, 5769MHz, 5806MHz, 5843MHz, 5880MHz, 5917MHz
FRE: 5733MHz, 5752MHz, 5771MHz, 5790MHz, 5809MHz, 5828MHz, 5847MHz, 5866MHz


Don't delay. Buy today.


Add to cart now!

Reviews

Write a review

Quanum Elite X50-L 25mW TX Transmitter with Metal Case

Quanum Elite X50-L 25mW TX Transmitter with Metal Case

The Quanum Elite X50-L 25mW TX transmitter delivers 5.8GHz 200mW without interruption, making it ideal for First Person View (FPV) projects. This is one of the best transmitters if you need a large coverage range. It can transmit on 40 channels and has a selection system very easy to use.


See description for more details about the product.

Add to cart now!

Customers who bought this product also bought:

Download

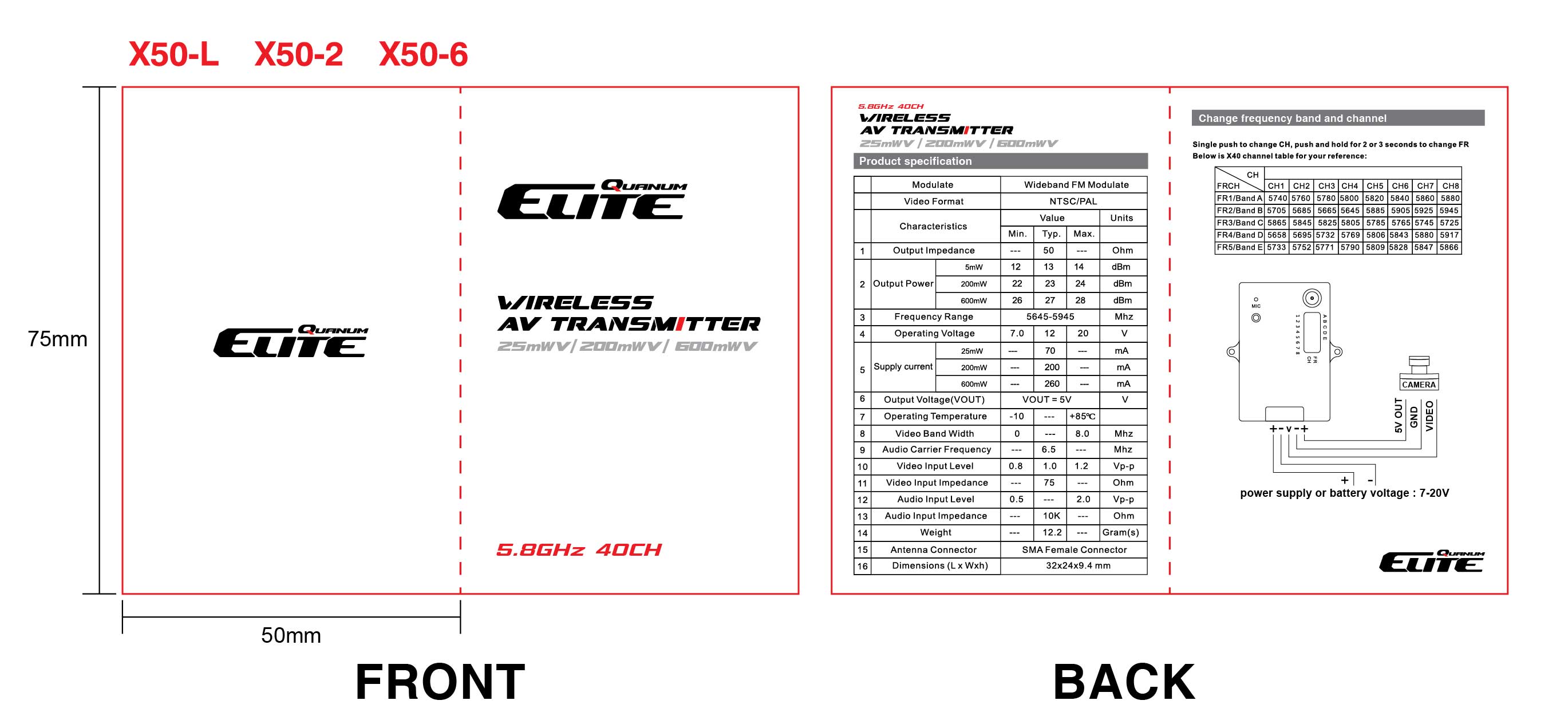

X50-L - datasheet

Download (212.04k)
