DPS5020 Adjustable Power Supply (50 V, 20 A)

0104110000036049

New product

Adjustable source, with color display, output voltage up to 30V and accuracy of 0.5%.
See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

429,99 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Note: DPS5020/DPS5015/DPS3012 is equipped with two sets of signal lines inside the control panel. Be sure to go under the PCB board. Do not walk next to the inductor, which will cause the screen to stop working.

Note: The DPS3012/DPS5015/DPS5020 current resolution is 10mA, and the DPS3003/DPS3005/DPS5005 current resolution is 1mA.

Built-in power supply housing (100MHZ) External power supply case (universal type) Ultra-small shell (echo)
Indicator model DPS3003 DPS3005 DPS5005 DPS3012 DPS5015 DPS5020
Input voltage range 6-40.00V 6-40.00V 6-55.00V 6-40.00V 6-60.00V 6-60.00V
Output voltage range 0-32.00V 0-32.00V 0-50.00V 0-32.00V 0-50.00V 0-50.00V
Output current range 0-3.000A 0-5.000A 0-5.000A 0-12.00A 0-15.00A 0-20.00A
Output power range 0-96.00W 0-160.0W 0-250.0W 0-384.0W 0-760.0W 0-999.9W
Voltage resolution 0.01V 0.01V 0.01V 0.01V 0.01V 0.01V
Current resolution 0.001A 0.001A 0.001A 0.01A 0.01A 0.01A

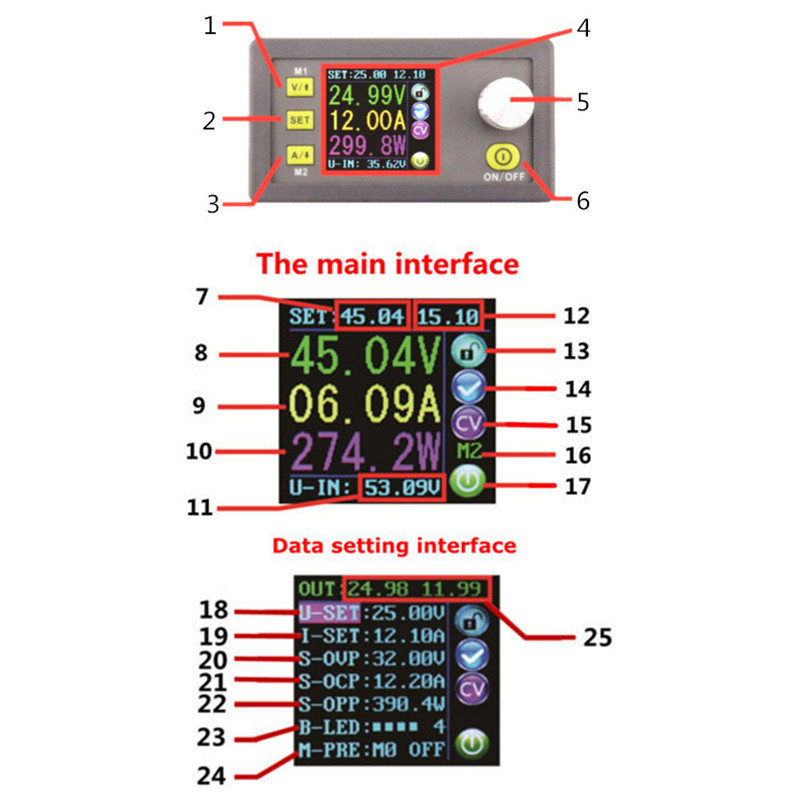

The Legend

1. Voltage settings / Page up to choose / Shortcut for extracting M1 data;

2. Data setting / Extract value from a particular group / Save to group up;

3. Current setting / Page Down to choose / Shortcut for M2 data extraction;

4. color 1.44-inch LCD screen;

5. Potentiometer / Adjusting data / Locking buttons;

6. Enable / disable output;

7. Preset voltage output value;

8. Value set voltage output;

9. Value set current output;

10. Value set output power;

11. Input voltage value;

12. Preset current output value;

13. Lock / unlock keys;

14. Normal output / not prompt;

15. Voltage and cash flow;

16. Set prompt date;

17. Enable/disable prompt output;

18. Pre-set voltage output;

19. Pre-setting current output;

20. Pre-setting voltage overload;

21. Pre-setting current override;

22. Pre-setting power overload;

23. Pre-set screen brightness;

24. Pre-set date set;

25. The current value of voltage and output current.


Don't delay, buy today.


Add to cart now!

Reviews

Grade
06/10/2024

sursa DPS5020 cu afisaj color

am construit cu doua module (dps5020) doua surse care functionaza de 3 ani de zile foarte bine .Le folosesc si la putere max 20A -50V 1000 W cu racire fortata suplimentara .

Grade
02/22/2020

OK

revin cu noutati dupa 1an si 4luni sursa isi face treaba ffbine ,am folosit-o pina in 10 A

  • 4 out of 4 people found this review useful.
Grade
10/19/2018

OK

O sursa foarte bine construita dupa mai multe teste isi face cu brio treaba.Acum sa veden in timp cit rezista,,ii trebuie sursa babana pt alimentare

  • 6 out of 6 people found this review useful.
